Solved Macrium Reflect?

Alexey2912 · Jan 14, 2022

Hi,

I installed the attached version. Is that correct for creating full backups of W11?

What partitions do I need to check before creating a full backup?

Thanks.

cereberus · Jan 14, 2022

Check all hidden partitions (no drive letter), c drive partitions, and optionally any other psrtitions with data.

Also select any partitions if you have redirected sysyem folders or installed programs that are not portable. If in doubt select all partitions.

CountMike · Jan 14, 2022

Alexey2912 said:
Hi,

I installed the attached version. Is that correct for creating full backups of W11?

What partitions do I need to check before creating a full backup?

Thanks.

That's right, it will offer updates if/when any.
When creating a full backup just check boxes for disk and it's partitions which to back up. Make sure device to which you are backing up is in good order, has enough space and if external to be connected before starting MR.

Fabler2 · Jan 14, 2022

Good thread here,

Using Macrium Reflect

Hey gang, will Macrium Reflect copy all my files, pictures and OS system in the cloning procedure to make a back-up of everything ?? If so anyone have an excellent video to follow ?? Never used Macrium before, so this will be all new to me !! Chuck

www.elevenforum.com

Alexey2912 · Jan 14, 2022

cereberus said:
Check all hidden partitions (no drive letter), c drive partitions, and optionally any other psrtitions with data.

Also select any partitions if you have redirected sysyem folders or installed programs that are not portable. If in doubt select all partitions.

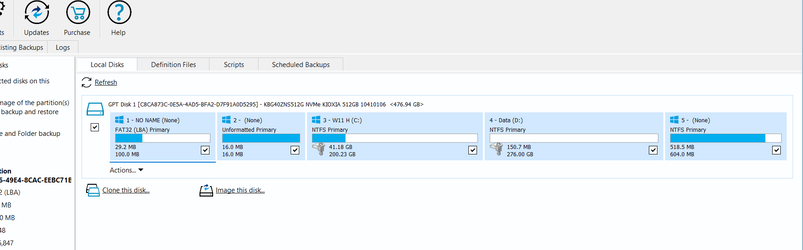

What exactly do you mean by hidden......as shown in the attachment, there could be more than 5?

If no, than only 1,2,3,4 be checked to create a full backup?

Thanks.

Alexey2912 · Jan 14, 2022

CountMike said:
That's right, it will offer updates if/when any.
When creating a full backup just check boxes for disk and it's partitions which to back up. Make sure device to which you are backing up is in good order, has enough space and if external to be connected before starting MR.

Thanks.
Checking 1,2,3,4 containing W11 every thing else is fine....D is empty?

Fabler2 · Jan 14, 2022

Alexey2912 said:
What exactly do you mean by hidden......as shown in the attachment, there could be more than 5?

If no, than only 1,2,3,4 be checked to create a full backup?

Thanks.

Just make sure all of them are checked as default and image the whole disk.
Note partition 4 is bitlocked and so is the C drive. Most probably you will need to unlock the partitions first before imaging.

Alexey2912 · Jan 14, 2022

Fabler2 said:
Just make sure all of them are checked as default and image the whole disk.

You mean the whole SSD including D partition.....1-5?

Thanks.

CountMike · Jan 14, 2022

Alexey2912 said:
You mean the whole SSD including D partition.....1-5?

Thanks.

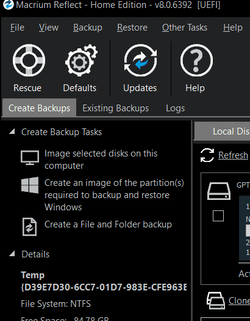

Few options here

Choose first one if you want whole disk toback up, second one is just for everythig needed to run windows excluding non system partitions like D for instance

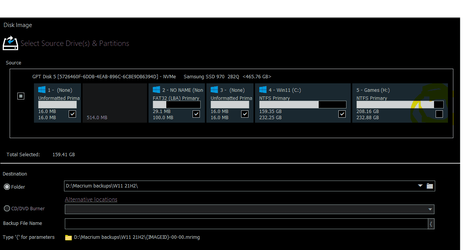

Example my disk with Windows. First option

Second option

Note that partition 5 which is my game partition is not included with this option because it doesn't belong to Windows system

Alexey2912 · Jan 14, 2022

CountMike said:
Few options here
View attachment 18599
Choose first one if you want whole disk toback up, second one is just for everythig needed to run windows excluding non system partitions like D for instance
Example my disk with Windows. First option
View attachment 18600

Second option
View attachment 18601

Note that partition 5 which is my game partition is not included with this option because it doesn't belong to Windows system

Exactly, thanks for making it clear. Why would I want a Data, Games etc. to image.

I feel option #2 is practical, but Ill try both though D is empty.

Thanks.

cereberus · Jan 14, 2022

Fabler2 said:
Just make sure all of them are checked as default and image the whole disk.
Note partition 4 is bitlocked and so is the C drive. Most probably you will need to unlock the partitions first before imaging.

Reflect can handle bitlocked partitions.

BitLocker Restore/Clone Outcomes - KnowledgeBase v7 - Macrium Reflect Knowledgebase - KnowledgeBase v7 - Macrium Reflect Knowledgebase

knowledgebase.macrium.com

CountMike · Jan 14, 2022

Alexey2912 said:
Exactly, thanks for making it clear. Why would I want a Data, Games etc. to image.

I feel option #2 is practical, but Ill try both though D is empty.

Thanks.

Several reasons. One is that data is usually more important than windows itself, that you can always reinstall but personal and other important data can be irreplaceable. Games partition I always include because they would not work on reinstalled windows and most would would be useless all by themselves.

Fabler2 · Jan 14, 2022

cereberus said:
Reflect can handle bitlocked partitions.

BitLocker Restore/Clone Outcomes - KnowledgeBase v7 - Macrium Reflect Knowledgebase - KnowledgeBase v7 - Macrium Reflect Knowledgebase

knowledgebase.macrium.com

It looks like it's Device Encryption not Bitlocker but they're very similar. Will it image sector by sector then?

Alexey2912 · Jan 14, 2022

Fabler2 said:
It looks like it's Device Encryption not Bitlocker but they're very similar. Will it image sector by sector then?

Meaning would take longer to create/restore a full back up?

Thanks.

Fabler2 · Jan 14, 2022

Alexey2912 said:
Meaning would take longer to create/restore a full back up?

Thanks.

I don't know as I've never imaged an encrypted partition before.

Alexey2912 · Jan 14, 2022

Fabler2 said:
I don't know as I've never imaged an encrypted partition before.

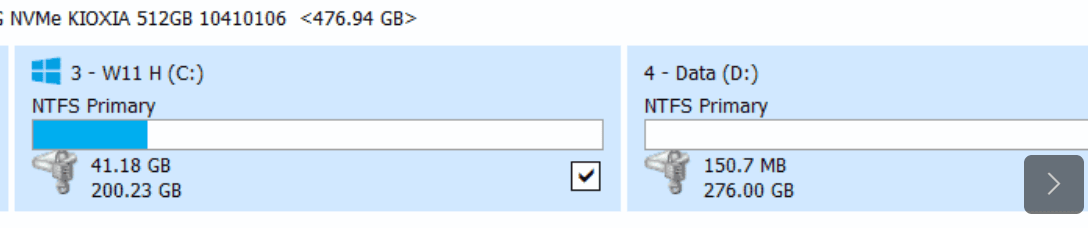

Are my drive's partitions encrypted, as shown in the attachment?

Thanks.

Fabler2 · Jan 14, 2022

They look locked.

Alexey2912 · Jan 14, 2022

Fabler2 said:
They look locked.

View attachment 18602

To create/restore a full backup should be unlocked?
And if yes how unlock relock?

Thanks.

Fabler2 · Jan 14, 2022

Alexey2912 said:
To create/restore a full backup should be unlocked?
And if yes how unlock relock?

Thanks.

@cereberus says Macrium will image a locked drive. You need to see Dell's info about Device Encryption.
Found this,

Automatic BitLocker Device Encryption for Dell Computers | Dell UK

IanMosley · Jan 14, 2022

Alexey2912 said:
Hi,

I installed the attached version. Is that correct for creating full backups of W11?

What partitions do I need to check before creating a full backup?

Thanks.

cereberus said:
Check all hidden partitions (no drive letter), c drive partitions, and optionally any other psrtitions with data.

Also select any partitions if you have redirected sysyem folders or installed programs that are not portable. If in doubt select all partitions.

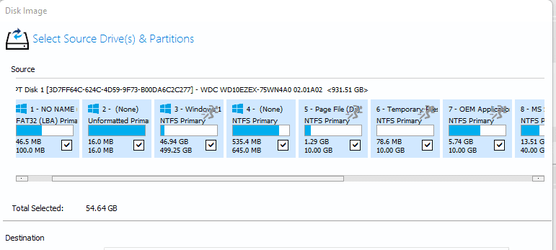

These are the partitions I select -

. . . and don't forget to create your Rescue Media!!
