Not sure where this should be posted so I'll start her.

I was installing some programs I normally install and the last one I installed was to add seconds to the taskbar time display. I've done this hundreds of times with no probles, Win 10 and Win 11. It's one of Shawn's:

Code:
@echo off

:: Created by: Shawn Brink
:: Created on: January 3rd 2017
:: Tutorial: https://www.tenforums.com/tutorials/73967-clock-taskbar-hide-show-seconds-windows-10-a.html

REG ADD "HKCU\Software\Microsoft\Windows\CurrentVersion\Explorer\Advanced" /V ShowSecondsInSystemClock /T REG_DWORD /D 1 /F

taskkill /f /im explorer.exe
start explorer.exe

When start explorer executed, I never got a screen back, it remained black and nothing I've done has helped. To complicate things, the Surface Pro X does not have a keyboard attached and now I can't attach one since I can't get to Bluetooth on the Surface to pair one.

I'm willing to start over with a clean install of Win 11 but I can't do that either as I've been unable to get this turkey to boot from USB (it has to USB C ports). UEFI settings have USB as the first bootable device but still no joy.

Google searches indicate press and hold volume down then power should and it being up a recovery menu but it has no effect. Since I have no keyboard I can't do a normal Fn or Esc during boot, so I'm stumped.

Any ideas or suggestions to try?

Oh, as an additional bonus it has Bit locker installed and active so I can't do anything with the drive or Recovery tools since I don't have the key.
Note: This Surface Pro X was donated, I've been working on it for 3+ days so far. It's a really nice system.

Edit: Hmmmm, I wonder if I can do a RESET? Nope, Bitlocker won't allow without key.

Last edited:

My Computer

System One

  • OS
    Windows 11 Pro X64 23H2 Build 26100.3194
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 3910
    CPU
    12th Gen Intel Core i7-12700, 2.1Ghz
    Memory
    32.0GB PC3-12800 DDR3 SDRAM
    Graphics Card(s)
    EVGA GeForce GTX 780
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Visio 32" TV
    Screen Resolution
    1920x1080
    Hard Drives
    1.0TB Model NVMe ADATA LEGEND 700 GOLD
    2TB Seagate ST2000NM0011 72K SATA-6GB;
    2TB Seagate ST2000DM006-2DM164 72K SATA-6GB (external)
    PSU
    ?
    Keyboard
    Dell USB (KVMS)
    Mouse
    Logitec USB (KVMS)
    Internet Speed
    374.10MB Down, 11.75MB Up
    Browser
    Edge - eM Client Pro for E-Mail
    Antivirus
    Windows Security
    Other Info
    Purchased December 2013, many upgrades since then
Only clean install can get past bitlocker.


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2 26100.3194
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 nvme+256gb SKHynix m.2 nvme /External drives 512gb Samsung m.2 sata+1tb Kingston m2.nvme+ 4gb Solidigm nvme
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    #1 Edge #2 Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
As mentioned, I can't do a clean install because I can't get it to boot from USB.


My Computer

System One

  • OS
    Windows 11 Pro X64 23H2 Build 26100.3194
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 3910
    CPU
    12th Gen Intel Core i7-12700, 2.1Ghz
    Memory
    32.0GB PC3-12800 DDR3 SDRAM
    Graphics Card(s)
    EVGA GeForce GTX 780
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Visio 32" TV
    Screen Resolution
    1920x1080
    Hard Drives
    1.0TB Model NVMe ADATA LEGEND 700 GOLD
    2TB Seagate ST2000NM0011 72K SATA-6GB;
    2TB Seagate ST2000DM006-2DM164 72K SATA-6GB (external)
    PSU
    ?
    Keyboard
    Dell USB (KVMS)
    Mouse
    Logitec USB (KVMS)
    Internet Speed
    374.10MB Down, 11.75MB Up
    Browser
    Edge - eM Client Pro for E-Mail
    Antivirus
    Windows Security
    Other Info
    Purchased December 2013, many upgrades since then
I have my own Surface. I wonder if I can mount the M.2 there and reinstall the OS then put it back in the Surface Pro X?
If it boots then I can do a reset.

Guess I'll give that a try as soon as I get home.


My Computer

System One

  • OS
    Windows 11 Pro X64 23H2 Build 26100.3194
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 3910
    CPU
    12th Gen Intel Core i7-12700, 2.1Ghz
    Memory
    32.0GB PC3-12800 DDR3 SDRAM
    Graphics Card(s)
    EVGA GeForce GTX 780
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Visio 32" TV
    Screen Resolution
    1920x1080
    Hard Drives
    1.0TB Model NVMe ADATA LEGEND 700 GOLD
    2TB Seagate ST2000NM0011 72K SATA-6GB;
    2TB Seagate ST2000DM006-2DM164 72K SATA-6GB (external)
    PSU
    ?
    Keyboard
    Dell USB (KVMS)
    Mouse
    Logitec USB (KVMS)
    Internet Speed
    374.10MB Down, 11.75MB Up
    Browser
    Edge - eM Client Pro for E-Mail
    Antivirus
    Windows Security
    Other Info
    Purchased December 2013, many upgrades since then
Where bluetooth keyboards won't work a wi-fi keyboard with dongle might if you can borrow one.


My Computers

System One System Two

  • OS
    Win 11 Home & Pro
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook
    CPU
    AMD Ryzen™ 7 7730U
    Motherboard
    M1605YA
    Memory
    15.0GB Dual-Channel DDR4 @ 1596MHz (22-22-22-52)
    Graphics Card(s)
    512MB ATI AMD Radeon Graphics (ASUStek Computer Inc)
    Monitor(s) Displays
    Generic PnP Monitor (1920x1200@60Hz) - P1 PLUS (1920x1080@59Hz)
    Screen Resolution
    1920 X 1200
    Hard Drives
    953GB Western Digital WD
    PSU
    45 Watts
    Mouse
    Lenovo Bluetooth.
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Where bluetooth keyboards won't work a wi-fi keyboard with dongle might if you can borrow one.
Good idea, I'll see if I can grab one tomorrow at work. Thanks
Edit: Surface has two USB-C ports but I have a USB-C to USB-A connector so I may just get this to work.


My Computer

System One

  • OS
    Windows 11 Pro X64 23H2 Build 26100.3194
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 3910
    CPU
    12th Gen Intel Core i7-12700, 2.1Ghz
    Memory
    32.0GB PC3-12800 DDR3 SDRAM
    Graphics Card(s)
    EVGA GeForce GTX 780
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Visio 32" TV
    Screen Resolution
    1920x1080
    Hard Drives
    1.0TB Model NVMe ADATA LEGEND 700 GOLD
    2TB Seagate ST2000NM0011 72K SATA-6GB;
    2TB Seagate ST2000DM006-2DM164 72K SATA-6GB (external)
    PSU
    ?
    Keyboard
    Dell USB (KVMS)
    Mouse
    Logitec USB (KVMS)
    Internet Speed
    374.10MB Down, 11.75MB Up
    Browser
    Edge - eM Client Pro for E-Mail
    Antivirus
    Windows Security
    Other Info
    Purchased December 2013, many upgrades since then
I have my own Surface. I wonder if I can mount the M.2 there and reinstall the OS then put it back in the Surface Pro X?
If it boots then I can do a reset.

Guess I'll give that a try as soon as I get home.
Not working. I moved the M.2 to my surface, did the first part of Win 11 clean install, then moved it back to the Surface Pro X.
All I get is "Couldn't find a bootable operating system". I still can't get it to boot from a USB flash drive, even now that I've gotten rid of Bitlocker.

If I could just get the Surface Pro X to boot from USB I'd be all set but I can't make that happen. Does the Pro X require different Fn keys to be used or some combo of power and volume + or - that I haven't found yet?

Someone must have done this, reinstall WIn 10 or 11 on a Surface Pro X. If so, how did you do it?????


My Computer

System One

  • OS
    Windows 11 Pro X64 23H2 Build 26100.3194
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 3910
    CPU
    12th Gen Intel Core i7-12700, 2.1Ghz
    Memory
    32.0GB PC3-12800 DDR3 SDRAM
    Graphics Card(s)
    EVGA GeForce GTX 780
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Visio 32" TV
    Screen Resolution
    1920x1080
    Hard Drives
    1.0TB Model NVMe ADATA LEGEND 700 GOLD
    2TB Seagate ST2000NM0011 72K SATA-6GB;
    2TB Seagate ST2000DM006-2DM164 72K SATA-6GB (external)
    PSU
    ?
    Keyboard
    Dell USB (KVMS)
    Mouse
    Logitec USB (KVMS)
    Internet Speed
    374.10MB Down, 11.75MB Up
    Browser
    Edge - eM Client Pro for E-Mail
    Antivirus
    Windows Security
    Other Info
    Purchased December 2013, many upgrades since then

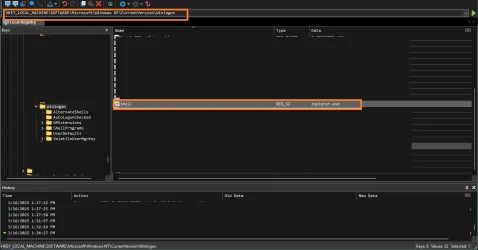

once you get a keyboard to work, check the winlogon reg string value to make sure nothing changed it. can launched regedit from task manager, or boot into recovery and load the hive to access your system's reg



My Computer

System One

  • OS
    Windows 11 Pro
Found a fix (I think). I downloaded the recovery image for the Surface Pro X from Microsoft (didn't know it was available but turns out all the Surface products are). Created the Recovery flash drive as directed, held down the volume - key and hit the power key and voilla`, I'm in the process of recovering this baby to Win 11 2H23.

Didn't require a keyboard at all, pure touch screen. I will setup the backlit bluetooth keyboard I have for it tomorrow though.

Thanks all. I'm a happy camper.
