Devices Check NVMe SSD Disk Drive Temperature in Windows 11



This tutorial will show you how to check the current temperature of NVMe SSD drives in Windows 11.

The normal temperature range for NVMe SSDs typically falls between 35°C and 70°C. When idle, they usually stay around 40°C to 50°C. Under heavy load, temperatures can rise, but it’s best to keep them below 70°C to avoid potential overheating and performance issues.


Here's How:

1 Open Settings (Win+I).

2 Click/tap on System on the left side, and click/tap on Storage on the right side. (see screenshot below)



3 Under Storage management, click/tap on Advanced storage settings to expand it open, and click/tap on Disks & volumes. (see screenshot below)



4 Click/tap on Properties for a NVMe SSD "Disk" drive you want to check the temperature of. (see screenshot below)


5 Under Drive health, you will see the Temperature in Celsius (ex: 47°C) for this NVMe SSD. (see screenshot below)



That's it,
Shawn Brink


Related Tutorials


Last edited:
Click to expand...
Now isn't that special? I always have to go looking for my 3rd party portable app on usb which isn't always handy.. I had absolutely no idea drive temp could be be checked within windows. Do you just know stuff, Shawn. Is it all in your little pointy alien head or do you have it written down or databased somewhere?
Good to know this. .


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2 26100.2314
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 nvme+256gb SKHynix m.2 nvme /External drives 512gb Samsung m.2 sata+1tb Kingston m2.nvme+ 4gb Solidigm nvme
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
great!

I was using crystal. now can run inside Windows.


My Computer

System One

  • OS
    Windows 7/11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP/Lenovo/Asus
    CPU
    Intel i7-11800H
    Motherboard
    Lenovo Legion 5i Pro Gen 6
    Memory
    32GB DDR4 3200MHz
    Graphics Card(s)
    NVIDIA GeForce RTX 3070
    Hard Drives
    1TB PCIe SSD
Somebody with a non-nvme (sata) bus type please indicate what is seen with the above.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
I prefer CrystalDiskInfo's real time monitoring.



My Computers

System One System Two

  • OS
    Win 11 Home & Pro
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook
    CPU
    AMD Ryzen™ 7 7730U
    Motherboard
    M1605YA
    Memory
    15.0GB Dual-Channel DDR4 @ 1596MHz (22-22-22-52)
    Graphics Card(s)
    512MB ATI AMD Radeon Graphics (ASUStek Computer Inc)
    Monitor(s) Displays
    Generic PnP Monitor (1920x1200@60Hz) - P1 PLUS (1920x1080@59Hz)
    Screen Resolution
    1920 X 1200
    Hard Drives
    953GB Western Digital WD
    PSU
    45 Watts
    Mouse
    Lenovo Bluetooth.
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
zbook said:
Если у чьего-то сиденья нет nvme (sata), пожалуйста, расскажите, что вы видите выше.
Click to expand...
Ничего


My Computer

System One

  • OS
    Windows 11 Stable, Release Preview, Beta, Dev, Canary
    Computer type
    PC/Desktop
    Manufacturer/Model
    Micro-Star International Co., Ltd. MS-7D54
    CPU
    AMD Ryzen 9 PRO 5950X
    Motherboard
    MSI MAG X570S Tomahawk Max WiFi (MS-7D54) (2 PCI-E x1, 2 PCI-E x16, 2 M.2, 4 DDR4 DIMM, Audio, Video, 2.5GbE LAN, WiFi)
    Memory
    128 Gb
    Graphics Card(s)
    Intel(R) Arc(TM) A380 Graphics (2 ГБ)
    Sound Card
    Устройство с поддержкой High Definition Audio
    Monitor(s) Displays
    HP X34 [34" LCD] (6CM1300J5J) {2021}
    Screen Resolution
    3440x1440
    Hard Drives
    KINGSTON SFYRD2000G (2000 ГБ, PCI-E 4.0 x4)
    PSU
    Be Quiet! Dark Rock Pro 4
    Case
    Cooler Master HAF XB EVO
    Internet Speed
    1000 Mb/s
    Browser
    Chrome
    Antivirus
    Windows Defender
Fabler2 said:
I prefer CrystalDiskInfo's real time monitoring.
Click to expand...

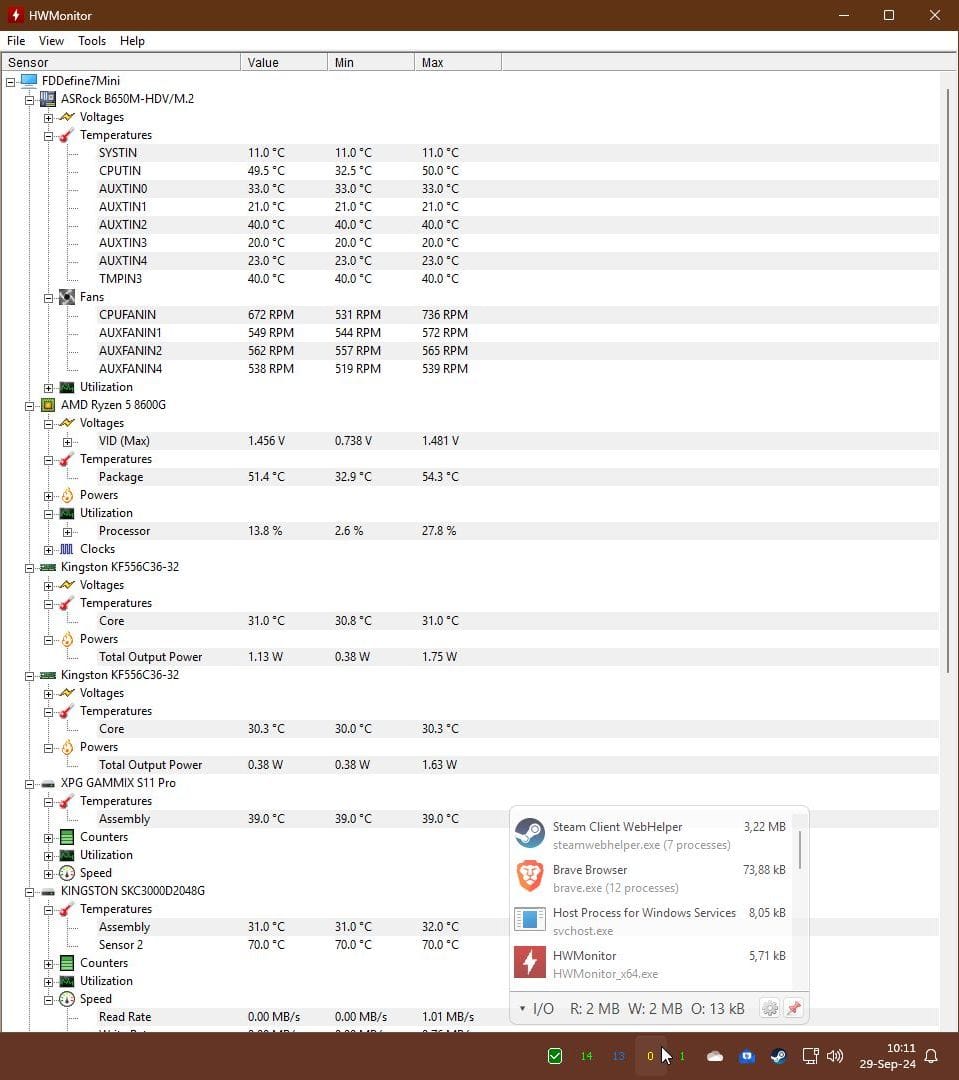

I think that disk usage is more useful, since it can help to detect 100% lags.
You can not really do much about the temperatures, especially on NVMe.


Attachments

  • capture_09292024_101148.jpg
    101 KB · Views: 19

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 8600G (07/24)
    Motherboard
    ASROCK B650M-HDV/M.2 3.18 (07/24)
    Memory
    2x32GB Kingston FURY DDR5 5600 MHz CL36 @4800 CL40 (07/24)
    Graphics Card(s)
    ASROCK Radeon RX 6600 Challenger D 8G @60FPS (08/24)
    Sound Card
    Creative Sound BlasterX AE-5 Plus (05/24)
    Monitor(s) Displays
    24" Philips 24M1N3200ZS/00 (05/24)
    Screen Resolution
    1920×1080@165Hz via DP1.4
    Hard Drives
    Kingston KC3000 NVMe 2TB (05/24)
    ADATA XPG GAMMIX S11 Pro 512GB (07/19)
    PSU
    Seasonic Core GM 550 Gold (04/24)
    Case
    Fractal Design Define 7 Mini with 3x Noctua NF-P14s/12@555rpm (04/24)
    Cooling
    Noctua NH-U12S with Noctua NF-P12 (04/24)
    Keyboard
    HP Pavilion Wired Keyboard 300 (07/24) + Rabalux 76017 Parker (01/24)
    Mouse
    Logitech M330 Silent Plus (04/23)
    Internet Speed
    500/100 Mbps via RouterOS (05/21) & TCP Optimizer
    Browser
    Edge & Brave for YouTube & LibreWolf for FB
    Antivirus
    NextDNS
    Other Info
    Backup: Hasleo Backup Suite (PreOS)
    Headphones: Sennheiser RS170 (09/10)
    Phone: Samsung Galaxy Xcover 7 (02/24)
    Chair: Huzaro Force 4.4 Grey Mesh (05/24)
    Notifier: Xiaomi Mi Band 9 Milanese (10/24)
    2nd Monitor: AOC G2460VQ6 @75Hz (02/19)
Ничего = nothing

So no disk health information and no temperature for sata or non-nvme drive?


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
No,

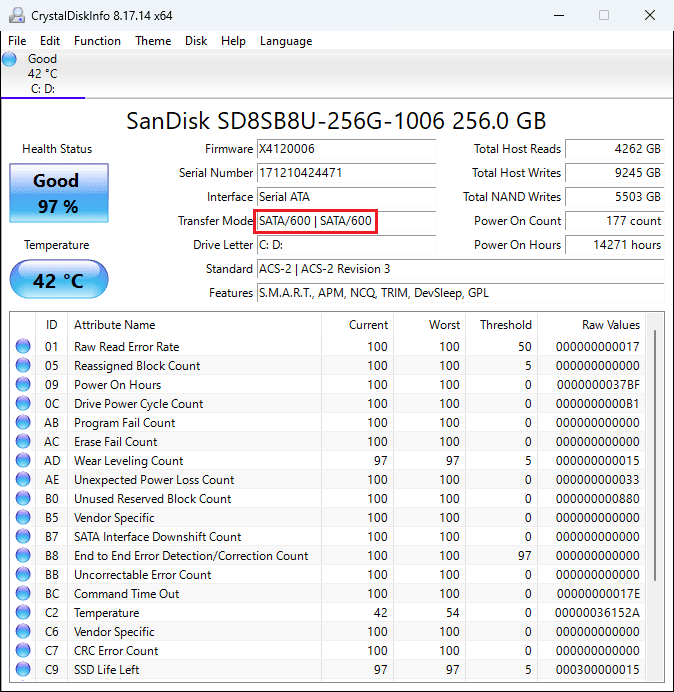

Crystal does. see my pic below.


zbook said:
Ничего = nothing

So no disk health information and no temperature for sata or non-nvme drive?
Click to expand...


My Computer

System One

  • OS
    Windows 7/11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP/Lenovo/Asus
    CPU
    Intel i7-11800H
    Motherboard
    Lenovo Legion 5i Pro Gen 6
    Memory
    32GB DDR4 3200MHz
    Graphics Card(s)
    NVIDIA GeForce RTX 3070
    Hard Drives
    1TB PCIe SSD
zbook said:
нет информации о состоянии диска и нет температуры для SATA
Click to expand...
Да


My Computer

System One

  • OS
    Windows 11 Stable, Release Preview, Beta, Dev, Canary
    Computer type
    PC/Desktop
    Manufacturer/Model
    Micro-Star International Co., Ltd. MS-7D54
    CPU
    AMD Ryzen 9 PRO 5950X
    Motherboard
    MSI MAG X570S Tomahawk Max WiFi (MS-7D54) (2 PCI-E x1, 2 PCI-E x16, 2 M.2, 4 DDR4 DIMM, Audio, Video, 2.5GbE LAN, WiFi)
    Memory
    128 Gb
    Graphics Card(s)
    Intel(R) Arc(TM) A380 Graphics (2 ГБ)
    Sound Card
    Устройство с поддержкой High Definition Audio
    Monitor(s) Displays
    HP X34 [34" LCD] (6CM1300J5J) {2021}
    Screen Resolution
    3440x1440
    Hard Drives
    KINGSTON SFYRD2000G (2000 ГБ, PCI-E 4.0 x4)
    PSU
    Be Quiet! Dark Rock Pro 4
    Case
    Cooler Master HAF XB EVO
    Internet Speed
    1000 Mb/s
    Browser
    Chrome
    Antivirus
    Windows Defender
siliconbeaver said:
No,

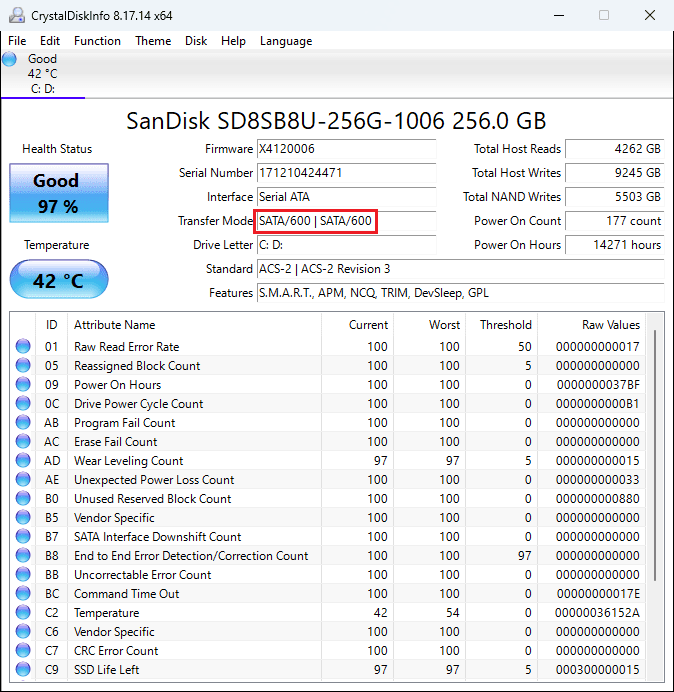

Crystal does. see my pic below.

View attachment 110409
Click to expand...


Third party software can display temperature for HD, SSD, various bus types.

(crystal disk, hd sentinel, hwmonitor, speccy, speedfan, etc.)


For the tutorial steps Dronix reported "nothing" for SSD with sata bus.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

My Computer

System One

  • OS
    Windows 11 Stable, Release Preview, Beta, Dev, Canary
    Computer type
    PC/Desktop
    Manufacturer/Model
    Micro-Star International Co., Ltd. MS-7D54
    CPU
    AMD Ryzen 9 PRO 5950X
    Motherboard
    MSI MAG X570S Tomahawk Max WiFi (MS-7D54) (2 PCI-E x1, 2 PCI-E x16, 2 M.2, 4 DDR4 DIMM, Audio, Video, 2.5GbE LAN, WiFi)
    Memory
    128 Gb
    Graphics Card(s)
    Intel(R) Arc(TM) A380 Graphics (2 ГБ)
    Sound Card
    Устройство с поддержкой High Definition Audio
    Monitor(s) Displays
    HP X34 [34" LCD] (6CM1300J5J) {2021}
    Screen Resolution
    3440x1440
    Hard Drives
    KINGSTON SFYRD2000G (2000 ГБ, PCI-E 4.0 x4)
    PSU
    Be Quiet! Dark Rock Pro 4
    Case
    Cooler Master HAF XB EVO
    Internet Speed
    1000 Mb/s
    Browser
    Chrome
    Antivirus
    Windows Defender
Is there a way to create a shortcut for this - too many clicks to remember.


My Computer

System One

  • OS
    Windows 11 Pro + Win11 Canary VM.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Zenbook 14
    CPU
    I9 13th gen i9-13900H 2.60 GHZ
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB soldered
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    laptop OLED screen
    Screen Resolution
    2880x1800 touchscreen
    Hard Drives
    1 TB NVME SSD (only weakness is only one slot)
    PSU
    Internal + 65W thunderbolt USB4 charger
    Case
    Yep, got one
    Cooling
    Stella Artois (UK pint cans - 568 ml) - extra cost.
    Keyboard
    Built in UK keybd
    Mouse
    Bluetooth , wireless dongled, wired
    Internet Speed
    900 mbs (ethernet), wifi 6 typical 350-450 mb/s both up and down
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    TPM 2.0, 2xUSB4 thunderbolt, 1xUsb3 (usb a), 1xUsb-c, hdmi out, 3.5 mm audio out/in combo, ASUS backlit trackpad (inc. switchable number pad)

    Macrium Reflect Home V8
    Office 365 Family (6 users each 1TB onedrive space)
    Hyper-V (a vm runs almost as fast as my older laptop)
cereberus said:
Is there a way to create a shortcut for this - too many clicks to remember.
Click to expand...

This is as close as I could get you.

I couldn't make a direct shortcut for some odd reason it wouldn't accept the path. But you can do the following.

This Batch will open Settings > System Storage > Advanced storage settings > Disks & volumes

Copy and paste the following code into Notepad:

Batch:
@echo off
start explorer.exe ms-settings:disksandvolumes

Save the file with a .bat extension, for example, DisksAndVolumes.bat

You could then create a shortcut to the batch file if you wanted to.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 Build 22631.4974
    Computer type
    PC/Desktop
    Manufacturer/Model
    Sin-built
    CPU
    Intel(R) Core(TM) i7-4770K CPU @ 3.50GHz (4th Gen?)
    Motherboard
    ASUS ROG Maximus VI Formula
    Memory
    32.0 GB of I forget and the box is in storage.
    Graphics Card(s)
    Gigabyte nVidia GeForce GTX 1660 Super OC 6GB
    Sound Card
    Onboard
    Monitor(s) Displays
    4 x LG 23MP75 - 2 x 24MK430H-B - 1 x Wacom Pro 22" Tablet
    Screen Resolution
    All over the place
    Hard Drives
    Too many to list.
    OS on Samsung 1TB 870 QVO SATA
    PSU
    Silverstone 1500
    Case
    NZXT Phantom 820 Full-Tower Case
    Cooling
    Noctua NH-D15 Elite Class Dual Tower CPU Cooler / 6 x EziDIY 120mm / 2 x Corsair 140mm somethings / 1 x 140mm Thermaltake something / 2 x 200mm Corsair.
    Keyboard
    Corsair K95 / Logitech diNovo Edge Wireless
    Mouse
    Logitech G402 / G502 / Mx Masters / MX Air Cordless
    Internet Speed
    100/40Mbps
    Browser
    All sorts
    Antivirus
    Kaspersky Premium
    Other Info
    I’m on a horse.
  • Operating System
    Windows 11 Pro 23H2 Build: 22631.4249
    Computer type
    Laptop
    Manufacturer/Model
    LENOVO Yoga 7i EVO OLED 14" Touchscreen i5 12 Core 16GB/512GB
    CPU
    Intel Core 12th Gen i5-1240P Processor (1.7 - 4.4GHz)
    Memory
    16GB LPDDR5 RAM
    Graphics card(s)
    Intel Iris Xe Graphics Processor
    Sound Card
    Optimized with Dolby Atmos®
    Screen Resolution
    QHD 2880 x 1800 OLED
    Hard Drives
    M.2 512GB
    Antivirus
    Defender / Malwarebytes
    Other Info
    …still on a horse.

My Computer

System One

  • OS
    Windows 11 Stable, Release Preview, Beta, Dev, Canary
    Computer type
    PC/Desktop
    Manufacturer/Model
    Micro-Star International Co., Ltd. MS-7D54
    CPU
    AMD Ryzen 9 PRO 5950X
    Motherboard
    MSI MAG X570S Tomahawk Max WiFi (MS-7D54) (2 PCI-E x1, 2 PCI-E x16, 2 M.2, 4 DDR4 DIMM, Audio, Video, 2.5GbE LAN, WiFi)
    Memory
    128 Gb
    Graphics Card(s)
    Intel(R) Arc(TM) A380 Graphics (2 ГБ)
    Sound Card
    Устройство с поддержкой High Definition Audio
    Monitor(s) Displays
    HP X34 [34" LCD] (6CM1300J5J) {2021}
    Screen Resolution
    3440x1440
    Hard Drives
    KINGSTON SFYRD2000G (2000 ГБ, PCI-E 4.0 x4)
    PSU
    Be Quiet! Dark Rock Pro 4
    Case
    Cooler Master HAF XB EVO
    Internet Speed
    1000 Mb/s
    Browser
    Chrome
    Antivirus
    Windows Defender
Hey?
Dronix said:
And if so?
Click to expand...

Not sure what and if so means, Dronix???

antspants said:
This is as close as I could get you.

I couldn't make a direct shortcut for some odd reason it wouldn't accept the path. But you can do the following.

This Batch will open Settings > System Storage > Advanced storage settings > Disks & volumes

Copy and paste the following code into Notepad:

Batch:
@echo off
start explorer.exe ms-settings:disksandvolumes

Save the file with a .bat extension, for example, DisksAndVolumes.bat

You could then create a shortcut to the batch file if you wanted to.
Click to expand...


I disabled my external 5 SSD hub and the shortcut version worked. Not sure what was preventing the shortcut from working. Perhaps because 50 million SSD’s on this computer. Exaggerated by a couple of drives.

Trying to write the batch to open the properties section for a designated disk, ex. Disk 0, either in the batch or a separate diskpart text file linked to the batch, but I fail.

Maybe @Brink knows?


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 Build 22631.4974
    Computer type
    PC/Desktop
    Manufacturer/Model
    Sin-built
    CPU
    Intel(R) Core(TM) i7-4770K CPU @ 3.50GHz (4th Gen?)
    Motherboard
    ASUS ROG Maximus VI Formula
    Memory
    32.0 GB of I forget and the box is in storage.
    Graphics Card(s)
    Gigabyte nVidia GeForce GTX 1660 Super OC 6GB
    Sound Card
    Onboard
    Monitor(s) Displays
    4 x LG 23MP75 - 2 x 24MK430H-B - 1 x Wacom Pro 22" Tablet
    Screen Resolution
    All over the place
    Hard Drives
    Too many to list.
    OS on Samsung 1TB 870 QVO SATA
    PSU
    Silverstone 1500
    Case
    NZXT Phantom 820 Full-Tower Case
    Cooling
    Noctua NH-D15 Elite Class Dual Tower CPU Cooler / 6 x EziDIY 120mm / 2 x Corsair 140mm somethings / 1 x 140mm Thermaltake something / 2 x 200mm Corsair.
    Keyboard
    Corsair K95 / Logitech diNovo Edge Wireless
    Mouse
    Logitech G402 / G502 / Mx Masters / MX Air Cordless
    Internet Speed
    100/40Mbps
    Browser
    All sorts
    Antivirus
    Kaspersky Premium
    Other Info
    I’m on a horse.
  • Operating System
    Windows 11 Pro 23H2 Build: 22631.4249
    Computer type
    Laptop
    Manufacturer/Model
    LENOVO Yoga 7i EVO OLED 14" Touchscreen i5 12 Core 16GB/512GB
    CPU
    Intel Core 12th Gen i5-1240P Processor (1.7 - 4.4GHz)
    Memory
    16GB LPDDR5 RAM
    Graphics card(s)
    Intel Iris Xe Graphics Processor
    Sound Card
    Optimized with Dolby Atmos®
    Screen Resolution
    QHD 2880 x 1800 OLED
    Hard Drives
    M.2 512GB
    Antivirus
    Defender / Malwarebytes
    Other Info
    …still on a horse.
TairikuOkami said:
I think that disk usage is more useful, since it can help to detect 100% lags.
You can not really do much about the temperatures, especially on NVMe.
Click to expand...
I agree but temp monitoring is handy when creating images on externals so as to keep an eye out for overheating (alarm levels appropriately set) so you can stop the process if temp goes to hot. Hasn't happened yet but I allow up to 75℃ for alarm.
I also use HWINFO 64 at times.


My Computers

System One System Two

  • OS
    Win 11 Home & Pro
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook
    CPU
    AMD Ryzen™ 7 7730U
    Motherboard
    M1605YA
    Memory
    15.0GB Dual-Channel DDR4 @ 1596MHz (22-22-22-52)
    Graphics Card(s)
    512MB ATI AMD Radeon Graphics (ASUStek Computer Inc)
    Monitor(s) Displays
    Generic PnP Monitor (1920x1200@60Hz) - P1 PLUS (1920x1080@59Hz)
    Screen Resolution
    1920 X 1200
    Hard Drives
    953GB Western Digital WD
    PSU
    45 Watts
    Mouse
    Lenovo Bluetooth.
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
antspants said:
Not sure what and if so means, Dronix???
Click to expand...
You'll have to excuse my "super-English", but that's how the translator failed to translate it. What I meant was that you can create a shortcut with the command ms-settings:disksandvolumes without start explorer.exe.


My Computer

System One

  • OS
    Windows 11 Stable, Release Preview, Beta, Dev, Canary
    Computer type
    PC/Desktop
    Manufacturer/Model
    Micro-Star International Co., Ltd. MS-7D54
    CPU
    AMD Ryzen 9 PRO 5950X
    Motherboard
    MSI MAG X570S Tomahawk Max WiFi (MS-7D54) (2 PCI-E x1, 2 PCI-E x16, 2 M.2, 4 DDR4 DIMM, Audio, Video, 2.5GbE LAN, WiFi)
    Memory
    128 Gb
    Graphics Card(s)
    Intel(R) Arc(TM) A380 Graphics (2 ГБ)
    Sound Card
    Устройство с поддержкой High Definition Audio
    Monitor(s) Displays
    HP X34 [34" LCD] (6CM1300J5J) {2021}
    Screen Resolution
    3440x1440
    Hard Drives
    KINGSTON SFYRD2000G (2000 ГБ, PCI-E 4.0 x4)
    PSU
    Be Quiet! Dark Rock Pro 4
    Case
    Cooler Master HAF XB EVO
    Internet Speed
    1000 Mb/s
    Browser
    Chrome
    Antivirus
    Windows Defender
Dronix said:
You'll have to excuse my "super-English", but that's how the translator failed to translate it. What I meant was that you can create a shortcut with the command ms-settings:disksandvolumes without start explorer.exe.
Click to expand...
Ahh OK sorry.

Yes, that’s what I originally did. The failing is somehow linked to an External 4 slot SSD Hub.
start explorer.exe is only used un the batch.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 Build 22631.4974
    Computer type
    PC/Desktop
    Manufacturer/Model
    Sin-built
    CPU
    Intel(R) Core(TM) i7-4770K CPU @ 3.50GHz (4th Gen?)
    Motherboard
    ASUS ROG Maximus VI Formula
    Memory
    32.0 GB of I forget and the box is in storage.
    Graphics Card(s)
    Gigabyte nVidia GeForce GTX 1660 Super OC 6GB
    Sound Card
    Onboard
    Monitor(s) Displays
    4 x LG 23MP75 - 2 x 24MK430H-B - 1 x Wacom Pro 22" Tablet
    Screen Resolution
    All over the place
    Hard Drives
    Too many to list.
    OS on Samsung 1TB 870 QVO SATA
    PSU
    Silverstone 1500
    Case
    NZXT Phantom 820 Full-Tower Case
    Cooling
    Noctua NH-D15 Elite Class Dual Tower CPU Cooler / 6 x EziDIY 120mm / 2 x Corsair 140mm somethings / 1 x 140mm Thermaltake something / 2 x 200mm Corsair.
    Keyboard
    Corsair K95 / Logitech diNovo Edge Wireless
    Mouse
    Logitech G402 / G502 / Mx Masters / MX Air Cordless
    Internet Speed
    100/40Mbps
    Browser
    All sorts
    Antivirus
    Kaspersky Premium
    Other Info
    I’m on a horse.
  • Operating System
    Windows 11 Pro 23H2 Build: 22631.4249
    Computer type
    Laptop
    Manufacturer/Model
    LENOVO Yoga 7i EVO OLED 14" Touchscreen i5 12 Core 16GB/512GB
    CPU
    Intel Core 12th Gen i5-1240P Processor (1.7 - 4.4GHz)
    Memory
    16GB LPDDR5 RAM
    Graphics card(s)
    Intel Iris Xe Graphics Processor
    Sound Card
    Optimized with Dolby Atmos®
    Screen Resolution
    QHD 2880 x 1800 OLED
    Hard Drives
    M.2 512GB
    Antivirus
    Defender / Malwarebytes
    Other Info
    …still on a horse.
antspants said:
only used un the batch.
Click to expand...
Isn't it enough in the bat file before the ms-settings:disksandvolumes command to just start or just explorer? It worked for me.


My Computer

System One

  • OS
    Windows 11 Stable, Release Preview, Beta, Dev, Canary
    Computer type
    PC/Desktop
    Manufacturer/Model
    Micro-Star International Co., Ltd. MS-7D54
    CPU
    AMD Ryzen 9 PRO 5950X
    Motherboard
    MSI MAG X570S Tomahawk Max WiFi (MS-7D54) (2 PCI-E x1, 2 PCI-E x16, 2 M.2, 4 DDR4 DIMM, Audio, Video, 2.5GbE LAN, WiFi)
    Memory
    128 Gb
    Graphics Card(s)
    Intel(R) Arc(TM) A380 Graphics (2 ГБ)
    Sound Card
    Устройство с поддержкой High Definition Audio
    Monitor(s) Displays
    HP X34 [34" LCD] (6CM1300J5J) {2021}
    Screen Resolution
    3440x1440
    Hard Drives
    KINGSTON SFYRD2000G (2000 ГБ, PCI-E 4.0 x4)
    PSU
    Be Quiet! Dark Rock Pro 4
    Case
    Cooler Master HAF XB EVO
    Internet Speed
    1000 Mb/s
    Browser
    Chrome
    Antivirus
    Windows Defender
You must log in or register to reply here.

Similar Windows 11 Tutorials

  • Article Article
Devices Check if HDD, SSD, or NVMe Disk Drive in Windows 11
Replies
1
Views
4K
mecanicogolf
mecanicogolf
  • Article Article
Devices Take Offline or Bring Online a Disk Drive in Windows 11
Replies
0
Views
4K
Brink
Brink
  • Article Article
Devices Check Graphics Card (GPU) Temperature in Windows 11
Replies
2
Views
4K
AK6DN
A
  • Article Article
Devices Initialize Disk in Windows 11
Replies
4
Views
2K
Brink
Brink
  • Article Article
Apps Find Copilot app Version in Windows 11
Replies
1
Views
1K
garlin
G
  • Article Article
Devices Rename Microphone in Windows 11
Replies
1
Views
518
antspants
antspants
  • Article Article
Devices Format Drive in Windows 11
Replies
0
Views
3K
Brink
Brink

Latest Support Threads

Latest Tutorials

Back
Top Bottom
