Despite enabling SMB 1.0 CFS W11 won't see my network drive

2pods said:

I did.
I let it finish, then ran gpedit.msc and got a Windows message saying "can't find gpedit.msc".

I'm sorry for plaguing the forum with all this, but It's always just worked the way I set it up, and a lot of this is a bit beyond me

Click to expand...

2pods said:

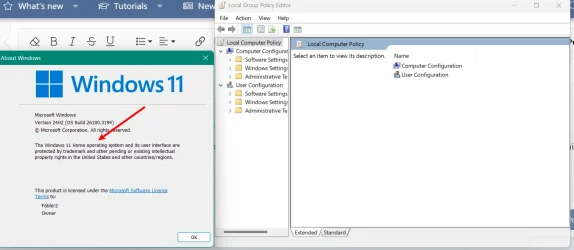

I got gpedit to go.
a couple of things were already deselected. I did the rest and rebooted, but still nothing.

I'm giving up
Nice of MS to clobber the home user in pursuit of the bad hats.
My PCs sit behind a router with Firewall, have the W11 Firewall enabled, along with a RT AV. I don't use pirate software, and avoid nasty sites.
I thought that was safe.
Apparently not enough for MS.
So, a small 2 x disc Netgear NAS, a WD network disk will be heading for landfill, along with the 4 x disk Netgear NAS if this keeps up !

Thanks to everyone for trying to help

Click to expand...

Labonte18 said:

Ugh.. I hate to pile on here, but I'm having a very similar issue.

I have a POS system, DOS based, that runs SMB1.0.. At some point recently.. No more access to it via Win11. Win10 still works great. I've tried, I think all of the suggestions here.. No love.

I have wiresharked it.. I can share that capture if you like.. But I think the event viewer logs might be more useful.

First off, if I try to connect via command prompt.. That results in

Code:

C:\Users\NCCTest>net use Z: \\192.168.0.65\posfiles
System error 67 has occurred.

The network name cannot be found.

Now.. That is there. That command works perfectly on a Win10 machine

Code:

C:\Users\NCCTest>net use Z: \\192.168.0.65\posfiles
The password is invalid for \\192.168.0.65\posfiles.

Enter the user name for '192.168.0.65':

Now.. On win11.. When I do that, if I go into event viewer->Appllications and Services Logs->Microsoft->Windows->SMB Client->Connectivity.. i get 2 errors and an 'informational'..

In this order..

Information -
Could not find a certificate mapping that matches the server name.

Connection type: Quic
Server name: 192.168.0.65.

Error -
Failed to establish a network connection.

Error: The transport connection attempt was refused by the remote system.

Server name: 192.168.0.65
Server address: 192.168.0.65:445
Instance name: \Device\LanmanRedirector
Connection type: TCPIP
Port origin: The port was selected from the global registry settings.

Guidance:
This indicates a problem with the underlying network or transport, such as with TCP/IP or QUIC/UDP, and not with SMB. A firewall that blocks the TCP or UDP port listed in the Server Address field can also cause this issue.


Error 2 -
Failed to establish a network connection.

Error: The QUIC connection was idle.

Server name: 192.168.0.65
Server address: 192.168.0.65:443
Instance name: \Device\LanmanRedirector
Connection type: Quic
Port origin: The port was selected from the global registry settings.
Connection ID: 0x6BB029B26C91FE44
Client certificate thumbprint: 0x0000000000000000000000000000000000000000

Guidance:
This indicates a problem with the underlying network or transport, such as with TCP/IP or QUIC/UDP, and not with SMB. A firewall that blocks the TCP or UDP port listed in the Server Address field can also cause this issue.




I've disabled the signing and QUIC, or so I think.. But the errors seem to suggest.. They're still enabled.

Signing.. Is certainly off

Code:

PS C:\Users\NCCTest> Get-SmbClientConfiguration | FL RequireSecuritySignature


RequireSecuritySignature : False

I've also run from powershell

Code:

 Set-SmbServerConfiguration -EnableSMBQUIC $false

Struggling here a bit.. Just fishing for ideas. Obviously.. Yes, I have SMB Client enabled on both sides.


just in case it helps.. results of Get-SmbClientConfiguration from both machines..

Win10

Code:

ConnectionCountPerRssNetworkInterface : 4
DirectoryCacheEntriesMax              : 16
DirectoryCacheEntrySizeMax            : 65536
DirectoryCacheLifetime                : 10
DormantFileLimit                      : 1023
EnableBandwidthThrottling             : True
EnableByteRangeLockingOnReadOnlyFiles : True
EnableInsecureGuestLogons             : True
EnableLargeMtu                        : True
EnableLoadBalanceScaleOut             : True
EnableMultiChannel                    : True
EnableSecuritySignature               : True
ExtendedSessionTimeout                : 1000
FileInfoCacheEntriesMax               : 64
FileInfoCacheLifetime                 : 10
FileNotFoundCacheEntriesMax           : 128
FileNotFoundCacheLifetime             : 5
KeepConn                              : 600
MaxCmds                               : 50
MaximumConnectionCountPerServer       : 32
OplocksDisabled                       : False
RequireSecuritySignature              : False
SessionTimeout                        : 60
UseOpportunisticLocking               : True
WindowSizeThreshold                   : 8

Win11

Code:

AuditInsecureGuestLogon               : False
AuditServerDoesNotSupportEncryption   : False
AuditServerDoesNotSupportSigning      : False
BlockNTLM                             : False
BlockNTLMServerExceptionList          :
CompressibilitySamplingSize           : 524288000
CompressibleThreshold                 : 104857600
ConnectionCountPerRssNetworkInterface : 4
DirectoryCacheEntriesMax              : 16
DirectoryCacheEntrySizeMax            : 65536
DirectoryCacheLifetime                : 10
DisableCompression                    : False
DisabledSMBQUICServerExceptionList    :
DormantFileLimit                      : 1023
EnableBandwidthThrottling             : True
EnableByteRangeLockingOnReadOnlyFiles : True
EnableCompressibilitySampling         : False
EnableInsecureGuestLogons             : True
EnableLargeMtu                        : True
EnableLoadBalanceScaleOut             : True
EnableMailslots                       : False
EnableMultiChannel                    : True
EnableSecuritySignature               : False
EnableSMBQUIC                         : False
EncryptionCiphers                     : AES_128_GCM, AES_128_CCM, AES_256_GCM, AES_256_CCM
ExtendedSessionTimeout                : 1000
FileInfoCacheEntriesMax               : 64
FileInfoCacheLifetime                 : 10
FileNotFoundCacheEntriesMax           : 128
FileNotFoundCacheLifetime             : 5
ForceSMBEncryptionOverQuic            : False
InvalidAuthenticationCacheLifetime    : 30
KeepConn                              : 600
MaxCmds                               : 50
MaximumConnectionCountPerServer       : 32
OplocksDisabled                       : False
RequestCompression                    : False
RequireEncryption                     : False
RequireSecuritySignature              : False
SessionTimeout                        : 60
SkipCertificateCheck                  : False
Smb2DialectMax                        : None
Smb2DialectMin                        : None
UseOpportunisticLocking               : True
WindowSizeThreshold                   : 8

Click to expand...
