Frequent BlueSoD on HP 840 laptop


TonyCzar

TonyCzar

Well-known member
Member
Local time
4:08 PM
Posts
263
Location
Reno, Nevada USA
OS
Win 11 Pro 24H2 (OS Build 26100.2894)
V2 log file on my personal GDrive

An Intel file with system description attached

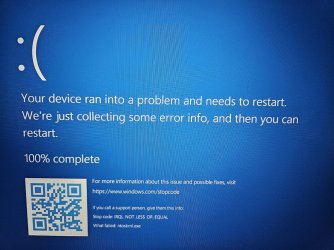

I wish I had more to report, but the BSoD occurs for my wife frequently when she's working hard and has a lot of things open. The few times it's hjappened to me have been when I was logging out of my MS account or rebooting the computer.

tyia for whatever insights you can provide.


Attachments

My Computer

System One

  • OS
    Win 11 Pro 24H2 (OS Build 26100.2894)
    Computer type
    Laptop
    Manufacturer/Model
    This laptop is an HP 840
    CPU
    i7-1360p 2.20 GHz
    Motherboard
    HP Model 8B41 KBC Version 51.40.00
    Memory
    32 GB
    Graphics Card(s)
    Intel® Iris® Xe Graphics
    Sound Card
    Realtek High Definition Audio; Intel® Smart Sound Technology for Bluetooth® Audio; Intel® Smart Sound Technology for USB Audio Intel® Smart Sound Technology for Digital Microphones
    Monitor(s) Displays
    as outfitted
    Screen Resolution
    1920 x 1200 (as recommended)
    Hard Drives
    one SSD 1TB
    Case
    N/A
    Cooling
    as outfitted
    Internet Speed
    800MB/sec up & down
    Browser
    Chrome
    Antivirus
    Malwarebytes
    Other Info
    Device name REC-840
    Processor 13th Gen Intel(R) Core(TM) i7-1360P 2.20 GHz
    Installed RAM 32.0 GB (31.6 GB usable)
    Product ID 00355-61334-62672-AAOEM
    System type 64-bit operating system, x64-based processor
    Pen and touch Touch support with 10 touch points
1) Please run Tuneup plus > post a share link


Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first
www.tenforums.com www.tenforums.com

Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first
www.tenforums.com www.tenforums.com




2) Download and install: HP PC Hardware Diagnostics UEFI – v10.7.0.0

It should upgrade 10.5.2.0 > 10.7.0.0




3) Power on the computer and repetitively click F2 or F10

> run the HP UEFI hardware diagnostics overnight while sleeping

> system > extensive > loop until error

> the next day if it has made two or more loops > click esc > take pictures

> post images or share links displaying the tests performed with results



4) Read this link on Windows Driver Verifier (WDV):

Enable and Disable Driver Verifier in Windows 10

www.tenforums.com

Enable and Disable Driver Verifier in Windows 10

How to Enable and Disable Driver Verifier in Windows 10
www.tenforums.com www.tenforums.com



5) Create a new restore point

Create System Restore Point in Windows 11

www.elevenforum.com

Create System Restore Point in Windows 11

This tutorial will show you how to manually create a restore point in Windows 11. Turning on system protection for a drive allows System Restore to include the drive when restore points are created so you can undo undesired system changes by reverting to a previous point in time. System...
www.elevenforum.com www.elevenforum.com



6) Learn the methods to recover from BSOD caused by WDV by booting into safe mode and running one or more of these commands:

verifier /reset

verifier /bootmode resetonbootfail

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
zbook said:
1) Please run Tuneup plus > post a share link


Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first
www.tenforums.com www.tenforums.com

Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first
www.tenforums.com www.tenforums.com




2) Download and install: HP PC Hardware Diagnostics UEFI – v10.7.0.0

It should upgrade 10.5.2.0 > 10.7.0.0




3) Power on the computer and repetitively click F2 or F10

> run the HP UEFI hardware diagnostics overnight while sleeping

> system > extensive > loop until error

> the next day if it has made two or more loops > click esc > take pictures

> post images or share links displaying the tests performed with results



4) Read this link on Windows Driver Verifier (WDV):

Enable and Disable Driver Verifier in Windows 10

www.tenforums.com

Enable and Disable Driver Verifier in Windows 10

How to Enable and Disable Driver Verifier in Windows 10
www.tenforums.com www.tenforums.com



5) Create a new restore point

Create System Restore Point in Windows 11

www.elevenforum.com

Create System Restore Point in Windows 11

This tutorial will show you how to manually create a restore point in Windows 11. Turning on system protection for a drive allows System Restore to include the drive when restore points are created so you can undo undesired system changes by reverting to a previous point in time. System...
www.elevenforum.com www.elevenforum.com



6) Learn the methods to recover from BSOD caused by WDV by booting into safe mode and running one or more of these commands:

verifier /reset

verifier /bootmode resetonbootfail
Click to expand...

I'm on the case. Thanks!


My Computer

System One

  • OS
    Win 11 Pro 24H2 (OS Build 26100.2894)
    Computer type
    Laptop
    Manufacturer/Model
    This laptop is an HP 840
    CPU
    i7-1360p 2.20 GHz
    Motherboard
    HP Model 8B41 KBC Version 51.40.00
    Memory
    32 GB
    Graphics Card(s)
    Intel® Iris® Xe Graphics
    Sound Card
    Realtek High Definition Audio; Intel® Smart Sound Technology for Bluetooth® Audio; Intel® Smart Sound Technology for USB Audio Intel® Smart Sound Technology for Digital Microphones
    Monitor(s) Displays
    as outfitted
    Screen Resolution
    1920 x 1200 (as recommended)
    Hard Drives
    one SSD 1TB
    Case
    N/A
    Cooling
    as outfitted
    Internet Speed
    800MB/sec up & down
    Browser
    Chrome
    Antivirus
    Malwarebytes
    Other Info
    Device name REC-840
    Processor 13th Gen Intel(R) Core(TM) i7-1360P 2.20 GHz
    Installed RAM 32.0 GB (31.6 GB usable)
    Product ID 00355-61334-62672-AAOEM
    System type 64-bit operating system, x64-based processor
    Pen and touch Touch support with 10 touch points

Attachments

My Computer

System One

  • OS
    Win 11 Pro 24H2 (OS Build 26100.2894)
    Computer type
    Laptop
    Manufacturer/Model
    This laptop is an HP 840
    CPU
    i7-1360p 2.20 GHz
    Motherboard
    HP Model 8B41 KBC Version 51.40.00
    Memory
    32 GB
    Graphics Card(s)
    Intel® Iris® Xe Graphics
    Sound Card
    Realtek High Definition Audio; Intel® Smart Sound Technology for Bluetooth® Audio; Intel® Smart Sound Technology for USB Audio Intel® Smart Sound Technology for Digital Microphones
    Monitor(s) Displays
    as outfitted
    Screen Resolution
    1920 x 1200 (as recommended)
    Hard Drives
    one SSD 1TB
    Case
    N/A
    Cooling
    as outfitted
    Internet Speed
    800MB/sec up & down
    Browser
    Chrome
    Antivirus
    Malwarebytes
    Other Info
    Device name REC-840
    Processor 13th Gen Intel(R) Core(TM) i7-1360P 2.20 GHz
    Installed RAM 32.0 GB (31.6 GB usable)
    Product ID 00355-61334-62672-AAOEM
    System type 64-bit operating system, x64-based processor
    Pen and touch Touch support with 10 touch points
Tuneup plus results were all good.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
zbook said:
> post images or share links displaying the tests performed with results
Click to expand...

Did steps 2 and 3. SET made it through eight passes with nary a BSoD in sight... which surprised me.

SET 1.jpgSET 2.jpg


My Computer

System One

  • OS
    Win 11 Pro 24H2 (OS Build 26100.2894)
    Computer type
    Laptop
    Manufacturer/Model
    This laptop is an HP 840
    CPU
    i7-1360p 2.20 GHz
    Motherboard
    HP Model 8B41 KBC Version 51.40.00
    Memory
    32 GB
    Graphics Card(s)
    Intel® Iris® Xe Graphics
    Sound Card
    Realtek High Definition Audio; Intel® Smart Sound Technology for Bluetooth® Audio; Intel® Smart Sound Technology for USB Audio Intel® Smart Sound Technology for Digital Microphones
    Monitor(s) Displays
    as outfitted
    Screen Resolution
    1920 x 1200 (as recommended)
    Hard Drives
    one SSD 1TB
    Case
    N/A
    Cooling
    as outfitted
    Internet Speed
    800MB/sec up & down
    Browser
    Chrome
    Antivirus
    Malwarebytes
    Other Info
    Device name REC-840
    Processor 13th Gen Intel(R) Core(TM) i7-1360P 2.20 GHz
    Installed RAM 32.0 GB (31.6 GB usable)
    Product ID 00355-61334-62672-AAOEM
    System type 64-bit operating system, x64-based processor
    Pen and touch Touch support with 10 touch points
The HP UEFI hardware diagnostics results were good.


Please create a new restore point.


Plan to run WDV with various customized test settings:

a) Test all non-Microsoft drivers

b) Test no Microsoft drivers

c) For the first run of WDV select the 3 customized tests displayed in the TF tutorial



5) Whenever the WDV tool is started if there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



WDV can run continuously during the testing.

Customized tests will then be posted for the next run of WDV.

For any BSOD post a new V2 share link into the newest post.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
zbook said:
The HP UEFI hardware diagnostics results were good.


Please create a new restore point.


Plan to run WDV with various customized test settings:

a) Test all non-Microsoft drivers

b) Test no Microsoft drivers

c) For the first run of WDV select the 3 customized tests displayed in the TF tutorial



5) Whenever the WDV tool is started if there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



WDV can run continuously during the testing.

Customized tests will then be posted for the next run of WDV.

For any BSOD post a new V2 share link into the newest post.
Click to expand...

I will get on it. Muchas gracias!


My Computer

System One

  • OS
    Win 11 Pro 24H2 (OS Build 26100.2894)
    Computer type
    Laptop
    Manufacturer/Model
    This laptop is an HP 840
    CPU
    i7-1360p 2.20 GHz
    Motherboard
    HP Model 8B41 KBC Version 51.40.00
    Memory
    32 GB
    Graphics Card(s)
    Intel® Iris® Xe Graphics
    Sound Card
    Realtek High Definition Audio; Intel® Smart Sound Technology for Bluetooth® Audio; Intel® Smart Sound Technology for USB Audio Intel® Smart Sound Technology for Digital Microphones
    Monitor(s) Displays
    as outfitted
    Screen Resolution
    1920 x 1200 (as recommended)
    Hard Drives
    one SSD 1TB
    Case
    N/A
    Cooling
    as outfitted
    Internet Speed
    800MB/sec up & down
    Browser
    Chrome
    Antivirus
    Malwarebytes
    Other Info
    Device name REC-840
    Processor 13th Gen Intel(R) Core(TM) i7-1360P 2.20 GHz
    Installed RAM 32.0 GB (31.6 GB usable)
    Product ID 00355-61334-62672-AAOEM
    System type 64-bit operating system, x64-based processor
    Pen and touch Touch support with 10 touch points
zbook said:
Plan to run WDV with various customized test settings:

a) Test all non-Microsoft drivers
Click to expand...

Update: I started playing with Verifier. A brand new tool for me. Ran procedure (a) on a stable computer and the BSoD appeared immediately. I can see that there's a lot of work to be done in this stage. A bit of foreshadowing, please... is the goal here to identify one driver that is the bad actor and then to replace it?


My Computer

System One

  • OS
    Win 11 Pro 24H2 (OS Build 26100.2894)
    Computer type
    Laptop
    Manufacturer/Model
    This laptop is an HP 840
    CPU
    i7-1360p 2.20 GHz
    Motherboard
    HP Model 8B41 KBC Version 51.40.00
    Memory
    32 GB
    Graphics Card(s)
    Intel® Iris® Xe Graphics
    Sound Card
    Realtek High Definition Audio; Intel® Smart Sound Technology for Bluetooth® Audio; Intel® Smart Sound Technology for USB Audio Intel® Smart Sound Technology for Digital Microphones
    Monitor(s) Displays
    as outfitted
    Screen Resolution
    1920 x 1200 (as recommended)
    Hard Drives
    one SSD 1TB
    Case
    N/A
    Cooling
    as outfitted
    Internet Speed
    800MB/sec up & down
    Browser
    Chrome
    Antivirus
    Malwarebytes
    Other Info
    Device name REC-840
    Processor 13th Gen Intel(R) Core(TM) i7-1360P 2.20 GHz
    Installed RAM 32.0 GB (31.6 GB usable)
    Product ID 00355-61334-62672-AAOEM
    System type 64-bit operating system, x64-based processor
    Pen and touch Touch support with 10 touch points
WDV is a tool that stresses drivers.

If there is a crash a dump file may be created.

If a dump is created it may be possible to debug the file.

If a misbehaving driver is identified the driver is uninstalled or uninstalled and reinstalled.

The process is repeated to check for additional misbehaving drivers


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
For any BSOD post a new V2 share link into the newest post.

If there is no BSOD when WDV is started then post verifier /querysettings results.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
TonyCzar said:
Update: I started playing with Verifier. A brand new tool for me. Ran procedure (a) on a stable computer and the BSoD appeared immediately. I can see that there's a lot of work to be done in this stage. A bit of foreshadowing, please... is the goal here to identify one driver that is the bad actor and then to replace it?
Click to expand...
zbook said:
If a misbehaving driver is identified the driver is uninstalled or uninstalled and reinstalled.
Click to expand...

I will follow your directions, but before that... the BSoD I mentioned in post #9 is shown below. The cause of the failure is listed as ntoskml.exe, which I believe is a driver. Might this be a shortcut to identifying bad actors?

Screen photo.jpg


My Computer

System One

  • OS
    Win 11 Pro 24H2 (OS Build 26100.2894)
    Computer type
    Laptop
    Manufacturer/Model
    This laptop is an HP 840
    CPU
    i7-1360p 2.20 GHz
    Motherboard
    HP Model 8B41 KBC Version 51.40.00
    Memory
    32 GB
    Graphics Card(s)
    Intel® Iris® Xe Graphics
    Sound Card
    Realtek High Definition Audio; Intel® Smart Sound Technology for Bluetooth® Audio; Intel® Smart Sound Technology for USB Audio Intel® Smart Sound Technology for Digital Microphones
    Monitor(s) Displays
    as outfitted
    Screen Resolution
    1920 x 1200 (as recommended)
    Hard Drives
    one SSD 1TB
    Case
    N/A
    Cooling
    as outfitted
    Internet Speed
    800MB/sec up & down
    Browser
    Chrome
    Antivirus
    Malwarebytes
    Other Info
    Device name REC-840
    Processor 13th Gen Intel(R) Core(TM) i7-1360P 2.20 GHz
    Installed RAM 32.0 GB (31.6 GB usable)
    Product ID 00355-61334-62672-AAOEM
    System type 64-bit operating system, x64-based processor
    Pen and touch Touch support with 10 touch points
For any BSOD with or without WDV please post a new V2 share link into the newest post.

When WDV is started see post #11.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
You must log in or register to reply here.

Similar threads

Frequent BSODs on Gaming PC: Need Help Diagnosing the Issue
Replies
4
Views
232
zbook
Z
Solved Frequent Blue Screen
Replies
4
Views
1K
RedHearse
R
Continuous BSOD with critical_structure_corruption error on HP Probook 455 G9 Laptop
Replies
2
Views
2K
idgat
idgat

Latest Support Threads

Latest Tutorials

Back
Top Bottom
