My bad. After I read the OP I just followed a registry mod procedure I had previously read om another site.
My Computer
System One
-
- OS
- Windows 10
Reports today that Windows11 TPM can be bypassed with Registry hack
- Thread starter scopio
- Start date
- Local time
- 11:00 AM
- Posts
- 1,761
- OS
- Windows 11
It just seems a whole lot easier to adjust a couple registry entries during setup...... to me anyway (takes less than 2 minutes extra). Seems easier to also just apply the image from install.wim or install.esd manually to a partition. But I guess you do have to learn the commands.
My Computers
System One System Two
-
- OS
- Windows 11
- Computer type
- PC/Desktop
- Manufacturer/Model
- Homebuilt
- CPU
- AMD Ryzen 7 3800XT
- Motherboard
- ASUS ROG Crosshair VII Hero (WiFi)
- Memory
- 32GB
- Graphics Card(s)
- EVGA GeForce GTX 1080 Ti
-
- Operating System
- Windows 11 Education
- Computer type
- Laptop
- Manufacturer/Model
- Dell Inspiron 7773
- CPU
- Intel i7-8550U
- Memory
- 32GB
- Graphics card(s)
- Nvidia Geforce MX150
- Sound Card
- Realtek
- Monitor(s) Displays
- 17"
- Screen Resolution
- 1920 x 1080
- Hard Drives
- Toshiba 512GB NVMe SSD
SK Hynix 512GB SATA SSD
- Internet Speed
- Fast!
I created a bootable disc earlier today with an ISO file for Windows 11 Pro Version 21H2 Build 22000.51 64-bit.
The pictorial guide and registry hack HERE worked fine in my Dell Precision Tower 3620.
It has a 6th generation Intel processor and 32 GB of DDR4 RAM, its BIOS has TPM 2.0, and secure boot and UEFI is not being used.

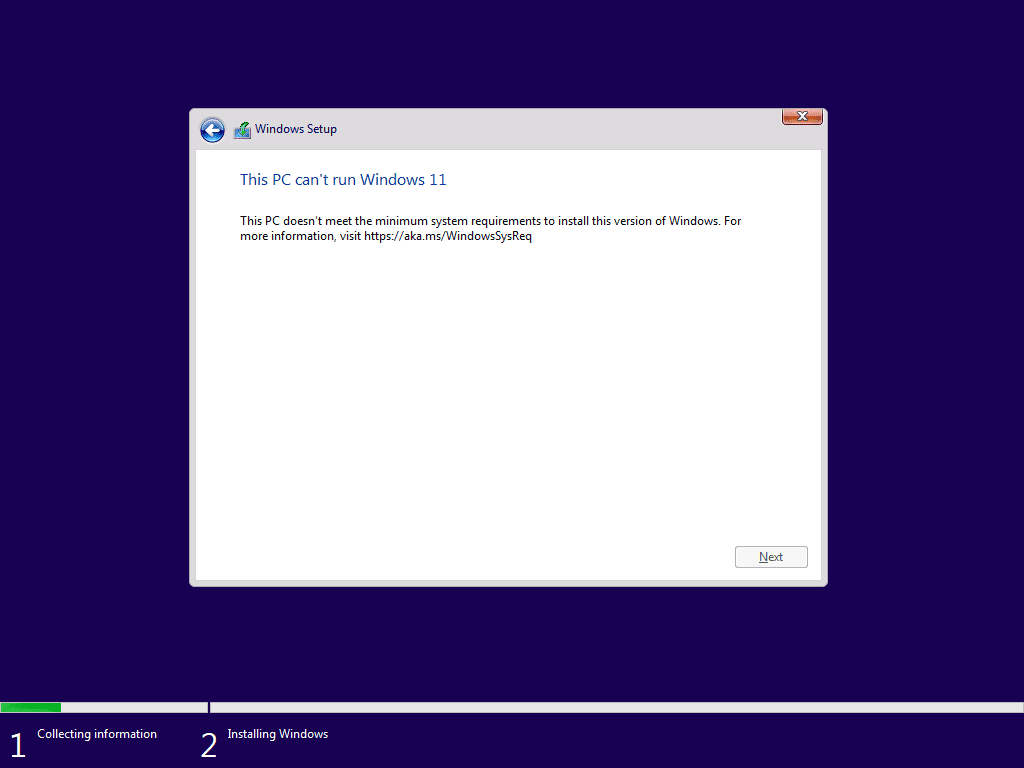

When I got to this point after hacking and exiting the registry,

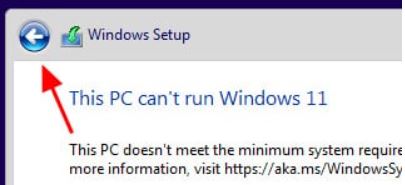

the blue "back" arrow button was greyed out, so it could not be clicked.
By clicking the "X" in the upper right and choosing to exit setup, that allowed the image with the "Install" button to re-appear.
The install process then begin and successfully finished.
This is information for those who have the same problem.
The pictorial guide and registry hack HERE worked fine in my Dell Precision Tower 3620.
It has a 6th generation Intel processor and 32 GB of DDR4 RAM, its BIOS has TPM 2.0, and secure boot and UEFI is not being used.
When I got to this point after hacking and exiting the registry,
the blue "back" arrow button was greyed out, so it could not be clicked.
By clicking the "X" in the upper right and choosing to exit setup, that allowed the image with the "Install" button to re-appear.
The install process then begin and successfully finished.
This is information for those who have the same problem.
My Computer
System One
-
- OS
- Windows 11 Pro 23H2 64-bit
- Computer type
- PC/Desktop
- Manufacturer/Model
- Dell OptiPlex 9020 / Dell Precision 3620
- CPU
- Intel Core i7-4790 / Intel Core i7-6700
- Memory
- 32 GB DDR3-1600 / 32 GB DDR4-2133
- Graphics Card(s)
- NVIDIA GeForce GTX 645 1 GB GDDR5
- Monitor(s) Displays
- Viewsonic 32" LCD
- Hard Drives
- Western Digital Blue SATA 2.5" SSD's
- Internet Speed
- Spectrum - 500 Mbps
- Local time
- 11:00 AM
- Posts
- 1,761
- OS
- Windows 11
Just like post #16!
My Computers
System One System Two
-
- OS
- Windows 11
- Computer type
- PC/Desktop
- Manufacturer/Model
- Homebuilt
- CPU
- AMD Ryzen 7 3800XT
- Motherboard
- ASUS ROG Crosshair VII Hero (WiFi)
- Memory
- 32GB
- Graphics Card(s)
- EVGA GeForce GTX 1080 Ti
-
- Operating System
- Windows 11 Education
- Computer type
- Laptop
- Manufacturer/Model
- Dell Inspiron 7773
- CPU
- Intel i7-8550U
- Memory
- 32GB
- Graphics card(s)
- Nvidia Geforce MX150
- Sound Card
- Realtek
- Monitor(s) Displays
- 17"
- Screen Resolution
- 1920 x 1080
- Hard Drives
- Toshiba 512GB NVMe SSD
SK Hynix 512GB SATA SSD
- Internet Speed
- Fast!
My Computer
System One
-
- OS
- Windows 11 Pro 23H2 64-bit
- Computer type
- PC/Desktop
- Manufacturer/Model
- Dell OptiPlex 9020 / Dell Precision 3620
- CPU
- Intel Core i7-4790 / Intel Core i7-6700
- Memory
- 32 GB DDR3-1600 / 32 GB DDR4-2133
- Graphics Card(s)
- NVIDIA GeForce GTX 645 1 GB GDDR5
- Monitor(s) Displays
- Viewsonic 32" LCD
- Hard Drives
- Western Digital Blue SATA 2.5" SSD's
- Internet Speed
- Spectrum - 500 Mbps
- Local time
- 7:00 PM
- Posts
- 2,190
- OS
- Win7,Win11
You could adjust boot.wim beforehand either by adding the entries to the system hive, or by merging during boot. It is quite easy.
One way is using 7-zip.
One way is using 7-zip.
My Computers
System One System Two
-
- OS
- Win7,Win11
- Computer type
- PC/Desktop
- CPU
- i5-8400
- Motherboard
- gigabyte b365m ds3h
- Memory
- 2x8gb 3200mhz
- Monitor(s) Displays
- benq gw2480
- PSU
- bequiet pure power 11 400CM
- Cooling
- cryorig m9i
-
- Operating System
- win7,win11
- Computer type
- PC/Desktop
- CPU
- pentium g5400
- Motherboard
- gigabyte b365m ds3h
- Memory
- 1x8gb 2400
- PSU
- xfx pro 450
- Local time
- 7:00 PM
- Posts
- 2,190
- OS
- Win7,Win11
Create this folder structure anywhere e.g. on your desktop 2\windows\system32.
(The reason the parent folder is called 2 is because the files will be added to image 2 in boot.wim)
Pop your winpeshl.ini and SKIP.cmd files into 2\windows\system32 folder
WINPESHL.INI
(The reason the parent folder is called 2 is because the files will be added to image 2 in boot.wim)
Pop your winpeshl.ini and SKIP.cmd files into 2\windows\system32 folder
WINPESHL.INI
Code:
[LaunchApps]
SKIP.CMD
X:\SETUP.EXE
Last edited:
My Computers
System One System Two
-
- OS
- Win7,Win11
- Computer type
- PC/Desktop
- CPU
- i5-8400
- Motherboard
- gigabyte b365m ds3h
- Memory
- 2x8gb 3200mhz
- Monitor(s) Displays
- benq gw2480
- PSU
- bequiet pure power 11 400CM
- Cooling
- cryorig m9i
-
- Operating System
- win7,win11
- Computer type
- PC/Desktop
- CPU
- pentium g5400
- Motherboard
- gigabyte b365m ds3h
- Memory
- 1x8gb 2400
- PSU
- xfx pro 450
- Local time
- 7:00 PM
- Posts
- 2,190
- OS
- Win7,Win11
Bypassing Windows 11 hardware requirements, revisited
As I stated previously, bypassing the Windows 11 hardware requirements can be done, but that doesn’t mean it’s a good idea. And I stand by that. But based on a couple of Twitter threads…
oofhours.com
Unzip the 2.zip file that is attached to the bottom of this post. Unzip it to the desktop is fine.
Then add the 2 folder to boot.wim with 7-zip

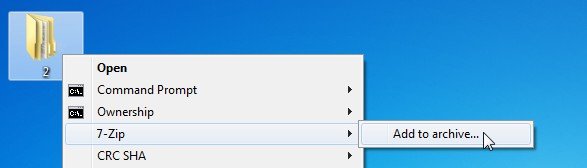

Rt click the 2 folder and select Add to Archive

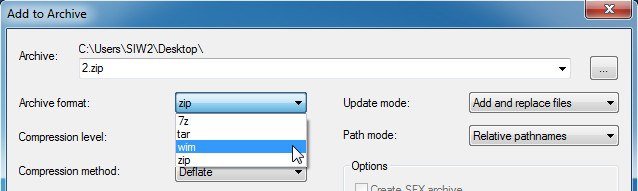

Select wim in the dropdown

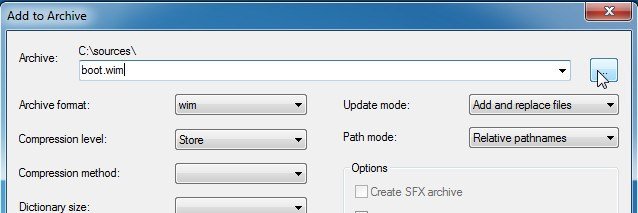

Browse to boot.wim
Click OK
That is it job done.
Contains these which will be automatically added.
winpeshl.ini
Code:
[LaunchApps]
SKIPALL.CMD
X:\SETUP.EXEskipall.cmd
Code:
@echo off
echo adding reg entries to skip compatibility checks
reg add "HKLM\SYSTEM\Setup\LabConfig" /f /v "BypassTPMCheck" /t REG_DWORD /d 1
reg add "HKLM\SYSTEM\Setup\LabConfig" /f /v "BypassSecureBootCheck" /t REG_DWORD /d 1
reg add "HKLM\SYSTEM\Setup\LabConfig" /f /v "BypassRAMCheck" /t REG_DWORD /d 1
wpeinit
>nul TIMEOUT /T 3
Last edited:
My Computers
System One System Two
-
- OS
- Win7,Win11
- Computer type
- PC/Desktop
- CPU
- i5-8400
- Motherboard
- gigabyte b365m ds3h
- Memory
- 2x8gb 3200mhz
- Monitor(s) Displays
- benq gw2480
- PSU
- bequiet pure power 11 400CM
- Cooling
- cryorig m9i
-
- Operating System
- win7,win11
- Computer type
- PC/Desktop
- CPU
- pentium g5400
- Motherboard
- gigabyte b365m ds3h
- Memory
- 1x8gb 2400
- PSU
- xfx pro 450
RuLich
Looking for a companion to the world of adventures
All these instructions only work when upgrading from 10 to 11. If you try to do a clean install of Win11, it will fail.
This is my guide on how to modify the Win11 installation so that it can be installed on any PC or laptop.
Production:
This is how the installation works:
This is my guide on how to modify the Win11 installation so that it can be installed on any PC or laptop.
Production:
This is how the installation works:
