Solved The boot configuration does not contain valid information 0xc0000098

William · Apr 18, 2023

Bios date and time is correct

Ghot · Apr 18, 2023

William said:
Yes it wont work if i did not select this option

If it still doesn't boot, you might want to consider checking the cables (?) on the drive your backups are stored on.

The backups "should" fix this problem. Since they don't seem to be, I'd check anything in the path from the drive where the backups are stored... to the drive you're trying to restore. And ofc... something that may have changed in the BIOS.

I can't think of what else might be causing the problem.

I guess the file you used to flash the BIOS may have gotten corrupted, somehow. Re-flashing the BIOS with a newly downloaded BIOS file... might be something else to try.
I've always assumed a corrupted BIOS file wouldn't succeed when you flashed... but ya never know.

All we know for sure is...

1. The comp worked before the BIOS flash.
2. The BIOS flash succeeded ?? BIOS settings were checked.
3. Now the comp won't boot.
4. For some reason, restoring from a "good" Macrium backup... is succeeding, but not solving the problem.
5. You ran chkdsk on the Windows (NVMe), drive, and that came up clean ??
6. You ran sfc /scannow on the Windows partition, and that came up clean ??
7. You rebuilt the BCD a few times ??

I don't see how all these things could have been successful, at the same time.

William · Apr 18, 2023

Seems restore time tripled without using delta rapid option.

Answer to all questions is yes. You made me think now that maybe i noticed my msi board restarted at 80% of the flashing process but not sure. If current restore was not successful i will flash it again. Thanks

SIW2 · Apr 18, 2023

The boot configuration does not contain valid information 0xc0000098

is that entire message or is there more ?

William · Apr 18, 2023

Here is an example , F1 didnot solve it

William · Apr 18, 2023

Full restore didn't solve it, trying flash now

SIW2 · Apr 18, 2023

doesnt contain valid information for an operating system.

You know from the message that bootmgr has started up and had a look in the bcd store.

I would have a look at the bcd store with something like bootice, it might give an idea what the damage is.

you could post a screenshot of the entries.

William · Apr 18, 2023

I created new efi and msr partitions then used commands

bootrec /scanos
bootrec /fixmbr
bootsect /nt60 sys
bootrec /fixboot
bootrec /rebuildbcd

problem remain

FreeBooter · Apr 18, 2023

If like i suggested that you deleted and have recreated BCD file have not resolved the problem try to repair EFI System Partition.

In this video, i will guide on how to repair EFI System Partition (ESP), if the system partition has been corrupted, you can use BCDBoot command to recreate the system partition files by using new copies of these files from the Windows partition.

William · Apr 18, 2023

FreeBooter said:
will guide on how to repair EFI System Partiti

Boot successfully created but then i get same error again

Ghot · Apr 18, 2023

William said:
Boot successfully created but then i get same error again

I still think it's gonna turn out to be a setting in the BIOS.
What is the exact make/model of your motherboard?

William · Apr 18, 2023

Msi mag x570s tomahawk max wifi

Ghot · Apr 18, 2023

William said:
Msi mag x570s tomahawk max wifi

I found your manual, but no BIOS settings.

Wisewiz · Apr 18, 2023

Scratching my head over this, like @Ghot and the others here.

Just recently, I launched a thread linked here:

Complete OS on two disks. If I remove one disk, will PC boot into other?

When I added a new M2, I used MR to "restore" my entire main disk to the new one. I've tried to get the boot order to make the new disk the primary booter, but so far, no luck. If I physically detach the old primary boot disk, and then boot with the new disk as first in the order, will that...

www.elevenforum.com

In that thread, I found that cloning from my original OS disk to my new, empty NVMe worked, when the restoring operation from an MR image didn't work to get the new NVMe to boot (even with the full OS and all patitions present). See post #15 in that thread.

The problem with the cloning solution is that you've got to have the original OS disk still available, and that's surely not the case for you. If you had that solution available, the cloning operation would give you drive C: on the new NVMe, and would change the C: letter on the old OS disk to something else. And in Disk Management, the new C: drive would have the "Boot" descriptor, while the old C: drive (with a new letter) would NOT have the "Boot" descriptor.

Ghot · Apr 18, 2023

@William

I found what might be your BIOS manual... same motherboard model without the "s"

https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&cad=rja&uact=8&ved=2ahUKEwjh8bCR-LP-AhUXMlkFHSFQB_oQFnoECB8QAQ&url=https%3A%2F%2Fdownload.msi.com%2Farchive%2Fmnu_exe%2Fmb%2FE7C84v1.1.pdf&usg=AOvVaw1mb12Y3vI1F1-nqNqWdhtF

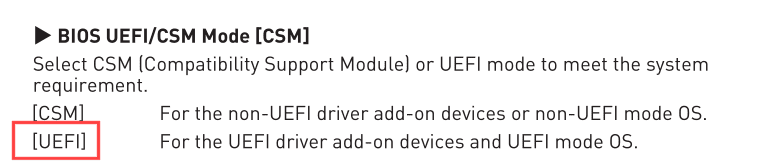

Anyway, is CSM set to UEFI? [Advanced > Windows OS Configuration]

William · Apr 18, 2023

@Ghot Yes UEFI

@Wisewiz that made my pc go into troubles also with windows updates and i had to reinstall windows .

Ghot · Apr 18, 2023

William said:
@Ghot Yes UEFI

@Wisewiz that made my pc go into troubles also with windows updates and i had to reinstall windows .

Only other thing I see (not shown in your BIOS manual, but should look similar)...

This is my BIOS, but yours should look about the same. [Boot tab > Boot Option Priorities...]

I remember, I kept trying to put my SSD first, like the old days, and it wouldn't work.
I had to put Windows Boot Manager first.

The more I think about it... the more I start to believe that we're getting away from what made sense and...
"just plain worked". LOL

William · Apr 18, 2023

Ghot said:
I remember, I kept trying to put my SSD first, like the old days, and it wouldn't work.
I had to put Windows Boot Manager first.

THAT FIX IT

Many thanks ,i wish i found thiss solution before restore because backup is 10 days old

Ghot · Apr 18, 2023

William said:
@Ghot Yes UEFI

@Wisewiz that made my pc go into troubles also with windows updates and i had to reinstall windows

THAT FIX IT

Many thanks ,i wish i found thiss solution before restore because backup is 10 days old

The official Seal of Approval.

And... you have been awarded the coveted...

Ten days? Now ya gotta do the April 11 WU again.

Glad you got it working. ^^

William654 · Apr 18, 2023

Greetings from Windows Account

Ghot said:
And... you have been awarded the coveted...

I can not read those letters , what it say ?

I dont know why nvme had these tiny unallocated spaces ?
