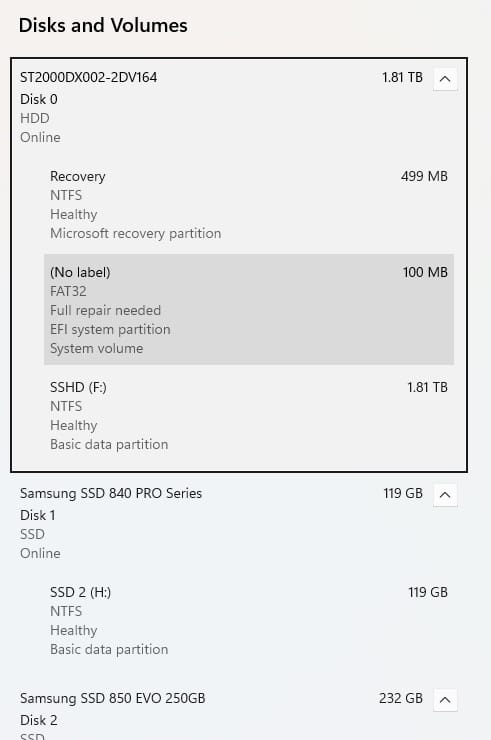

EfI full repair needed help


everything elese went perfect it just failed at the last step on this

bcdboot C:\windows /s W: /f all


My Computer

System One

  • OS
    windows 11
wait i think it worked cuz when i load my pc i tried multiple times not I have a bunch of efi on the C drive how do i delte themUntitled.jpg


My Computer

System One

  • OS
    windows 11

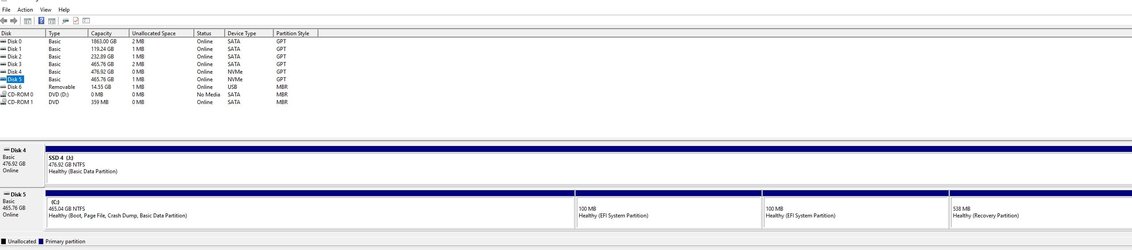

Please post images of disk management disk 5

Copy and paste all at one time and post images of the commands with results into this thread

Code:
diskpart
lis vol
sel dis 5
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par
sel par 5
det par
sel par 6
det par
sel par 7
det par
sel par 8
det par
sel par 9
det par


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

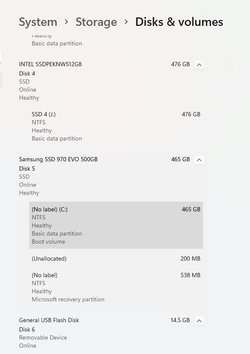

i think the partitions are there but it didnt copy the boot files because in the bios the boot manager is still disk F not the C drive


My Computer

System One

  • OS
    windows 11

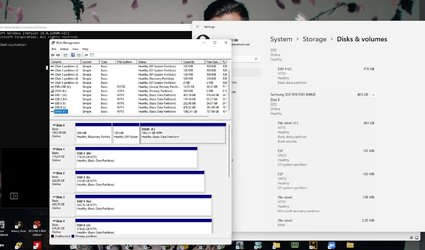

When available post images of:

Disk management displaying disk #5

The diskpart commands in post #23.

(copy and paste them all at one time so that there is an immediate result)


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
[/code]
Microsoft Windows [Version 10.0.22000.527]
(c) Microsoft Corporation. All rights reserved.

C:\WINDOWS\system32>diskpart

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: DESKTOP-5K1894B

DISKPART> lis vol

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 D DVD-ROM 0 B No Media
Volume 1 E JPOG CDFS DVD-ROM 358 MB Healthy
Volume 2 F SSHD NTFS Partition 1862 GB Healthy
Volume 3 Recovery NTFS Partition 499 MB Healthy Hidden
Volume 4 FAT32 Partition 100 MB Healthy System
Volume 5 H SSD 2 NTFS Partition 119 GB Healthy
Volume 6 I SSD 3 NTFS Partition 232 GB Healthy
Volume 7 G SSD 1 NTFS Partition 465 GB Healthy
Volume 8 J SSD 4 NTFS Partition 476 GB Healthy
Volume 9 C NTFS Partition 465 GB Healthy Boot
Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 12 NTFS Partition 538 MB Healthy Hidden
Volume 13 RAW Partition 2048 KB Healthy Hidden
Volume 14 K ESD-USB FAT32 Removable 14 GB Healthy

DISKPART> sel dis 5

Disk 5 is now the selected disk.

DISKPART> lis par

Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 Primary 465 GB 1024 KB
Partition 2 System 100 MB 465 GB
Partition 3 System 100 MB 465 GB
Partition 4 Recovery 538 MB 465 GB
Partition 5 System 2048 KB 465 GB

DISKPART> sel par 1

Partition 1 is now the selected partition.

DISKPART> det par

Partition 1
Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden : No
Required: No
Attrib : 0000000000000000
Offset in Bytes: 1048576

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 9 C NTFS Partition 465 GB Healthy Boot

DISKPART> sel par 2

Partition 2 is now the selected partition.

DISKPART> det par

Partition 2
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499331891200

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART> det par

Partition 3
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499436748800

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART> det par

Partition 4
Type : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden : Yes
Required: Yes
Attrib : 0X8000000000000001
Offset in Bytes: 499541606400

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 12 NTFS Partition 538 MB Healthy Hidden

DISKPART> sel par 5

Partition 5 is now the selected partition.

DISKPART> det par

Partition 5
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 500105740288

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 13 RAW Partition 2048 KB Healthy Hidden

DISKPART> sel par 6

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 7

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 8

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 9

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det pardiskpart

Microsoft DiskPart version 10.0.22000.1

DISK - Display the properties of the selected disk.
PARTITION - Display the properties of the selected partition.
VOLUME - Display the properties of the selected volume.
VDISK - Displays the properties of the selected virtual disk.

DISKPART> lis vol

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 D DVD-ROM 0 B No Media
Volume 1 E JPOG CDFS DVD-ROM 358 MB Healthy
Volume 2 F SSHD NTFS Partition 1862 GB Healthy
Volume 3 Recovery NTFS Partition 499 MB Healthy Hidden
Volume 4 FAT32 Partition 100 MB Healthy System
Volume 5 H SSD 2 NTFS Partition 119 GB Healthy
Volume 6 I SSD 3 NTFS Partition 232 GB Healthy
Volume 7 G SSD 1 NTFS Partition 465 GB Healthy
Volume 8 J SSD 4 NTFS Partition 476 GB Healthy
Volume 9 C NTFS Partition 465 GB Healthy Boot
Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 12 NTFS Partition 538 MB Healthy Hidden
Volume 13 RAW Partition 2048 KB Healthy Hidden
Volume 14 K ESD-USB FAT32 Removable 14 GB Healthy

DISKPART> sel dis 5

Disk 5 is now the selected disk.

DISKPART> lis par

Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 Primary 465 GB 1024 KB
Partition 2 System 100 MB 465 GB
Partition 3 System 100 MB 465 GB
Partition 4 Recovery 538 MB 465 GB
Partition 5 System 2048 KB 465 GB

DISKPART> sel par 1

Partition 1 is now the selected partition.

DISKPART> det par

Partition 1
Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden : No
Required: No
Attrib : 0000000000000000
Offset in Bytes: 1048576

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 9 C NTFS Partition 465 GB Healthy Boot

DISKPART> sel par 2

Partition 2 is now the selected partition.

DISKPART> det par

Partition 2
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499331891200

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART> det par

Partition 3
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499436748800

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART> det par

Partition 4
Type : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden : Yes
Required: Yes
Attrib : 0X8000000000000001
Offset in Bytes: 499541606400

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 12 NTFS Partition 538 MB Healthy Hidden

DISKPART> sel par 5

Partition 5 is now the selected partition.

DISKPART> det par

Partition 5
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 500105740288

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 13 RAW Partition 2048 KB Healthy Hidden

DISKPART> sel par 6

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 7

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 8

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 9

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det pardiskpart

Microsoft DiskPart version 10.0.22000.1

DISK - Display the properties of the selected disk.
PARTITION - Display the properties of the selected partition.
VOLUME - Display the properties of the selected volume.
VDISK - Displays the properties of the selected virtual disk.

DISKPART> lis vol

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 D DVD-ROM 0 B No Media
Volume 1 E JPOG CDFS DVD-ROM 358 MB Healthy
Volume 2 F SSHD NTFS Partition 1862 GB Healthy
Volume 3 Recovery NTFS Partition 499 MB Healthy Hidden
Volume 4 FAT32 Partition 100 MB Healthy System
Volume 5 H SSD 2 NTFS Partition 119 GB Healthy
Volume 6 I SSD 3 NTFS Partition 232 GB Healthy
Volume 7 G SSD 1 NTFS Partition 465 GB Healthy
Volume 8 J SSD 4 NTFS Partition 476 GB Healthy
Volume 9 C NTFS Partition 465 GB Healthy Boot
Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 12 NTFS Partition 538 MB Healthy Hidden
Volume 13 RAW Partition 2048 KB Healthy Hidden
Volume 14 K ESD-USB FAT32 Removable 14 GB Healthy

DISKPART> sel dis 5

Disk 5 is now the selected disk.

DISKPART> lis par

Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 Primary 465 GB 1024 KB
Partition 2 System 100 MB 465 GB
Partition 3 System 100 MB 465 GB
Partition 4 Recovery 538 MB 465 GB
Partition 5 System 2048 KB 465 GB

DISKPART> sel par 1

Partition 1 is now the selected partition.

DISKPART> det par

Partition 1
Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden : No
Required: No
Attrib : 0000000000000000
Offset in Bytes: 1048576

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 9 C NTFS Partition 465 GB Healthy Boot

DISKPART> sel par 2

Partition 2 is now the selected partition.

DISKPART> det par

Partition 2
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499331891200

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART> det par

Partition 3
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499436748800

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART> det par

Partition 4
Type : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden : Yes
Required: Yes
Attrib : 0X8000000000000001
Offset in Bytes: 499541606400

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 12 NTFS Partition 538 MB Healthy Hidden

DISKPART> sel par 5

Partition 5 is now the selected partition.

DISKPART> det par

Partition 5
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 500105740288

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 13 RAW Partition 2048 KB Healthy Hidden

DISKPART> sel par 6

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 7

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 8

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 9

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det pardiskpart

Microsoft DiskPart version 10.0.22000.1

DISK - Display the properties of the selected disk.
PARTITION - Display the properties of the selected partition.
VOLUME - Display the properties of the selected volume.
VDISK - Displays the properties of the selected virtual disk.

DISKPART> lis vol

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 D DVD-ROM 0 B No Media
Volume 1 E JPOG CDFS DVD-ROM 358 MB Healthy
Volume 2 F SSHD NTFS Partition 1862 GB Healthy
Volume 3 Recovery NTFS Partition 499 MB Healthy Hidden
Volume 4 FAT32 Partition 100 MB Healthy System
Volume 5 H SSD 2 NTFS Partition 119 GB Healthy
Volume 6 I SSD 3 NTFS Partition 232 GB Healthy
Volume 7 G SSD 1 NTFS Partition 465 GB Healthy
Volume 8 J SSD 4 NTFS Partition 476 GB Healthy
Volume 9 C NTFS Partition 465 GB Healthy Boot
Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 12 NTFS Partition 538 MB Healthy Hidden
Volume 13 RAW Partition 2048 KB Healthy Hidden
Volume 14 K ESD-USB FAT32 Removable 14 GB Healthy

DISKPART> sel dis 5

Disk 5 is now the selected disk.

DISKPART> lis par

Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 Primary 465 GB 1024 KB
Partition 2 System 100 MB 465 GB
Partition 3 System 100 MB 465 GB
Partition 4 Recovery 538 MB 465 GB
Partition 5 System 2048 KB 465 GB

DISKPART> sel par 1

Partition 1 is now the selected partition.

DISKPART> det par

Partition 1
Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden : No
Required: No
Attrib : 0000000000000000
Offset in Bytes: 1048576

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 9 C NTFS Partition 465 GB Healthy Boot

DISKPART> sel par 2

Partition 2 is now the selected partition.

DISKPART> det par

Partition 2
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499331891200

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART> det par

Partition 3
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499436748800

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART> det par

Partition 4
Type : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden : Yes
Required: Yes
Attrib : 0X8000000000000001
Offset in Bytes: 499541606400

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 12 NTFS Partition 538 MB Healthy Hidden

DISKPART> sel par 5

Partition 5 is now the selected partition.

DISKPART> det par

Partition 5
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 500105740288

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 13 RAW Partition 2048 KB Healthy Hidden

DISKPART> sel par 6

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 7

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 8

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 9

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det pardiskpart

Microsoft DiskPart version 10.0.22000.1

DISK - Display the properties of the selected disk.
PARTITION - Display the properties of the selected partition.
VOLUME - Display the properties of the selected volume.
VDISK - Displays the properties of the selected virtual disk.

DISKPART> lis vol

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 D DVD-ROM 0 B No Media
Volume 1 E JPOG CDFS DVD-ROM 358 MB Healthy
Volume 2 F SSHD NTFS Partition 1862 GB Healthy
Volume 3 Recovery NTFS Partition 499 MB Healthy Hidden
Volume 4 FAT32 Partition 100 MB Healthy System
Volume 5 H SSD 2 NTFS Partition 119 GB Healthy
Volume 6 I SSD 3 NTFS Partition 232 GB Healthy
Volume 7 G SSD 1 NTFS Partition 465 GB Healthy
Volume 8 J SSD 4 NTFS Partition 476 GB Healthy
Volume 9 C NTFS Partition 465 GB Healthy Boot
Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden
Volume 12 NTFS Partition 538 MB Healthy Hidden
Volume 13 RAW Partition 2048 KB Healthy Hidden
Volume 14 K ESD-USB FAT32 Removable 14 GB Healthy

DISKPART> sel dis 5

Disk 5 is now the selected disk.

DISKPART> lis par

Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 Primary 465 GB 1024 KB
Partition 2 System 100 MB 465 GB
Partition 3 System 100 MB 465 GB
Partition 4 Recovery 538 MB 465 GB
Partition 5 System 2048 KB 465 GB

DISKPART> sel par 1

Partition 1 is now the selected partition.

DISKPART> det par

Partition 1
Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden : No
Required: No
Attrib : 0000000000000000
Offset in Bytes: 1048576

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 9 C NTFS Partition 465 GB Healthy Boot

DISKPART> sel par 2

Partition 2 is now the selected partition.

DISKPART> det par

Partition 2
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499331891200

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 10 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART> det par

Partition 3
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 499436748800

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 11 ESP FAT32 Partition 100 MB Healthy Hidden

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART> det par

Partition 4
Type : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden : Yes
Required: Yes
Attrib : 0X8000000000000001
Offset in Bytes: 499541606400

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 12 NTFS Partition 538 MB Healthy Hidden

DISKPART> sel par 5

Partition 5 is now the selected partition.

DISKPART> det par

Partition 5
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 500105740288

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 13 RAW Partition 2048 KB Healthy Hidden

DISKPART> sel par 6

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 7

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 8

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par

There is no partition selected.
Please select a partition and try again.

DISKPART> sel par 9

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> det par
[/code]


Attachments

  • 2.jpg
    85.9 KB · Views: 1

My Computer

System One

  • OS
    windows 11
Copy and paste all at one time > post images with commands and results

Code:
diskpart
sel dis 5
lis par
sel par 3
del par override
sel par 5
del par override
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par
lis vol


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
I was able to delete all the partions I have ease us partion master pro now im back to where I started to create a new EFI file on C but it failed to copy last time


Attachments

  • 2.jpg
    22 KB · Views: 2

My Computer

System One

  • OS
    windows 11
When available please post the images of the commands in post #27.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
I'm not able to understand which steps you'll follow.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
I am able to create the EFI partition on drive C using Diskpart but when I’ve try to use the bcdboot command to copy the boot files it always says failed I’ve tried multiple commands and all over the internet been up the whole night. I can’t get a pic because my iPhone file size is too large to upload here


My Computer

System One

  • OS
    windows 11
If all else fails, make an image of your system drive to an external drive. Make a USB rescue disk with the imaging program you used. My main choice is Macrium. Make a Windows bootable install disk. Shutdown your computer and disconnect any drives except the one you want the OS on. Boot the computer from the Windows install disk and do a clean install. Verify that the computer can boot with the clean install. If everything is working, you can then restore the old C partition over the new C partition using the rescue disk.


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    #1. LG ULTRAWIDE 34" #2. AOC Q32G2WG3 32"
    Screen Resolution
    #1. 3440 X 1440 #2. 1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Canary Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec G156
    CPU
    Intel Core i5-8400 CPU @ 2.80GHz
    Motherboard
    AsusTeK Prime B360M-S
    Memory
    16 MB DDR 4-2666
    Monitor(s) Displays
    23" Speptre HDMI 75Hz
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 970 EVO 500GB NVMe
    Mouse
    Logitek M185
    Keyboard
    Logitek K270
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    Windows Defender
I have finally successfully created the efi and boot files on the C drive now the Windows boot manager in the Bios is the OS SSD and I have deleted the old one.


My Computer

System One

  • OS
    windows 11
spartanz1080 said:
How do I fix this? Nothing wrong with my PC it boots fine and everything is fine its not my OS C drive just a storage drive and it works fine too. I didn't know if it mattered because and I don't want to mess anything up. I think I noticed because the EFI drive used to show up in file explorer. I’m new at this.
View attachment 23019
Click to expand...
If it is NOT an OS drive, it doesn't need EFI partition. Just delete it from Disk Management.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
TheMystic said:
If it is NOT an OS drive, it doesn't need EFI partition. Just delete it from Disk Management.
Click to expand...
That’s actually not true the boot manager can be on another drive beside the OS drive if I deleted it wouldn’t boot unless it was on the boot the drive but I did get it switched successfully so it’s fine now.


My Computer

System One

  • OS
    windows 11
spartanz1080 said:
That’s actually not true the boot manager can be on another drive beside the OS drive if I deleted it wouldn’t boot unless it was on the boot the drive but I did get it switched successfully so it’s fine now.
Click to expand...
It is always wise to keep the EFI partition on the OS disk itself. There is no reason why it should be on another disk.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
You must log in or register to reply here.

Similar threads

EFI - Full repair needed?
Replies
3
Views
1K
Rollback_Jockey
Rollback_Jockey
ESP FAT32 Full Repair Needed EFI System Partition
Replies
8
Views
18K
NavyLCDR
NavyLCDR
Never-ending nightmare for Windows 11 newbie, please help.
2 3 4
Replies
65
Views
9K
POLYSIUS
P

Latest Support Threads

Latest Tutorials

Back
Top Bottom
