Solved Help me merge this small unallocated space to the main partition (C)

brummyfan · Dec 27, 2024

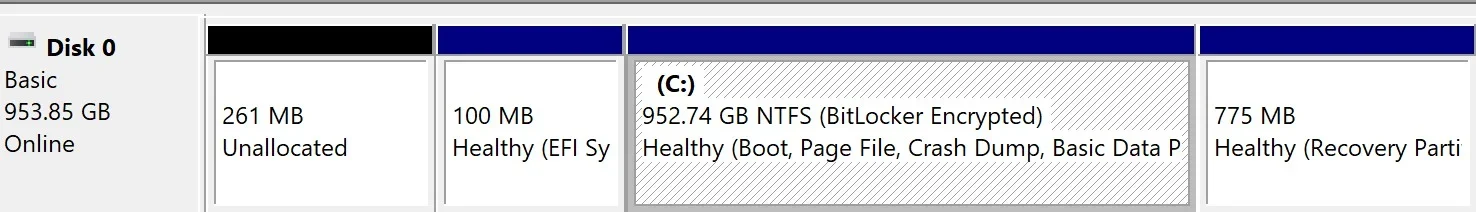

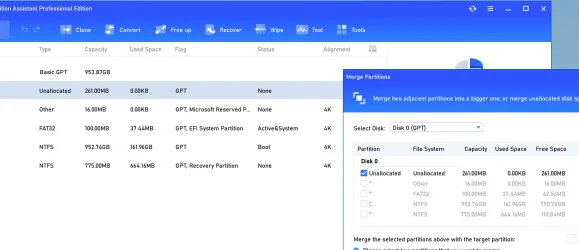

I am trying to merge this 261MB with the main partition but could someone guide me achieve this with AOMEI Partition Asst.Pro in my SFG14-72 Windows 11 installation, I understand it's a small unallocated space and it's not going to increase may main partition but I am trying this for learning AOMEI Partition Pro.

zbook · Dec 27, 2024

Make sure that you can decrypt and reencrypt.

How Can I Resize BitLocker Partition in Windows 10/11?

How can I resize Bitlocker Partition in Windows 10? Bitlocker partition only allows users to read information, if you want to resize this partition, you’ll have to try some tools.

www.diskpart.com

Berton · Dec 27, 2024

You said it yourself, it's a small amount. Windows Disk Management has a feature used to Shrink a partition the merge the newly available unallocated space to another partition. Or just delete the unused partition and merge it. BUT, the free space has to be contiguous to the one merging with or other partitions have to be moved around. I don't use AOMEI yet, my work in doing it has been on a Linux computer with GPARTED installed and using the drive in a USB Drive Dock, mostly for cleaning all data from a drive.

SIW2 · Dec 27, 2024

In addition to the bitlocker faff , cant do that from inside windows, needs to be done from boot media.

the 261mb unallocated is not adjacent there is the 100mb esp partition in between.

The partition manager will move the esp and os partitions to the left and have to adjust the bcd and registry entries.

It is not unique to aomei, they would all have to do that

( posting this from winpe while doing a defender scan, palemoon portable works fine )

SIW2 · Dec 27, 2024

I am trying this for learning AOMEI Partition Pro.

Fair enough. I have done a lot of that kind of thing over the years. Like everything else, it is easy when you have done it a few times. Daunting on the first attempt

Better have a backup in case you screw something up

Berton · Dec 27, 2024

I didn't pay enough attention to the picture at first but would caution that since it exists before the boot/system partition/s making a change could break the ability to boot the computer, cause a full reinstall.

brummyfan · Dec 27, 2024

SIW2 said:
Fair enough. I have done a lot of that kind of thing over the years. Like everything else, it is easy when you have done it a few times. Daunting on the first attempt

Better have a backup in case you screw something up

Yes, I can do this by cloning with Macrium Reflect by dragging the partitions, I want to experiment with AOMEI, yes, I have made two backups and a clone of this drive.

SIW2 · Dec 27, 2024

The older palemoon version I was using ( becuse it is small ) doesnt work well on this forum because John has the webp thing going on. Needs a fairly recent palemoon portable which is unfortunately bigger. Not a major issue the big palemoon runs off the usb stick, if a bit slowly

brummyfan · Dec 27, 2024

Berton said:
I didn't pay enough attention to the picture at first but would caution that since it exists before the boot/system partition/s making a change could break the ability to boot the computer, cause a full reinstall.

Thats what worries me as well, all the examples have the unallocated partition after the main partition, in my case it's in front of all partitions.

SIW2 · Dec 27, 2024

Trying is how one learns. Why are you worried you say you have backups. Use a bootable usb, I wouldnt use the preos or whatever it is called

Zeliha · Dec 27, 2024

Yerel Disk C Genişletme İşlemi Nasıl Yapılır? [Resimli Anlatım]

Yerel Disk C 'yi genişletme işlemi için çeşitli programlar kullananlar var ama bu işlem için program kullanmaya hiç gerek yok. Kullanacağını...

www.blogkafem.net

glasskuter · Dec 28, 2024

I strongly advise against it. It would go beyond just extending a partition into unallocated space. You should first understand the rules of how partitioning works. That space is not contiguous and would involve moving the data on your other partitions.. I understand partitioning and have been doing it for years and I would not do it since nothing is to be gained from it. If you want to learn how to partition, get an old drive with partitions already on it and partition away to learn how to use AOEMI. IMO, this particular case should not be used as a "lesson." But you do you. Guide for AOEMI here Overview of AOMEI Partition Assistant

If you image your system using Macrium or one of the others that allows you to resize partitions during a restore (Not all do) that space could easily be included into your partition scheme during a restore.

SIW2 · Dec 28, 2024

If you are paranoid you could clone your os disk to some old disk you have lying around then test your partitioning skills on that

most people have some mechanical disks hanging around, could use one of these. Takes a lot longer on a mechanical but it lets you try stuff out without worrying

The only way to learn is by doing.

brummyfan · Dec 28, 2024

Thank you both @SIW2 and @glasskuter for the valuable advice, I do really appreciate them

brummyfan · Dec 28, 2024

It looks neat and I didn't experiment with AOMEI, accomplished the job with Macrium Reflect cloning and pleased with it.

KevTech · Dec 28, 2024

Recovery partition is typically placed after the Windows partition not before it.

brummyfan · Dec 28, 2024

KevTech said:
Recovery partition is typically placed after the Windows partition not before it.

Thanks for pointing out, I'll repeat the procedure after New Year, happy new year to you

glasskuter · Dec 28, 2024

KevTech said:
Recovery partition is typically placed after the Windows partition not before it.

Yes, Kevtech is correct. The reason for this is as the recovery partition changes and grows through windows updates, the update process is designed to take space away from the trailing end of the OS partition and then add that space to the recovery partition to accomodate these changes.
Since your recovery partition is before your OS partition, that automatic enlargement of stealing space from C: is no longer possible.

zbook · Dec 28, 2024

brummyfan said:
It looks neat and I didn't experiment with AOMEI, accomplished the job with Macrium Reflect cloning and pleased with it.

Macrium can be used to have the default GPT partition architecture.

Partition layout

The default partition layout for UEFI-based PCs is: a system partition, an MSR, a Windows partition, and a recovery tools partition.

This layout lets you use Windows BitLocker Drive Encryption through both Windows and through the Windows Recovery Environment.

UEFI/GPT-based hard drive partitions

learn.microsoft.com

Code:

We recommend that you place this partition in a separate partition, immediately after the Windows partition.

This allows Windows to modify and recreate the partition later if future updates require a larger recovery image.

brummyfan · Dec 28, 2024

zbook said:
Macrium can be used to have the default GPT partition architecture.

Partition layout
The default partition layout for UEFI-based PCs is: a system partition, an MSR, a Windows partition, and a recovery tools partition.

This layout lets you use Windows BitLocker Drive Encryption through both Windows and through the Windows Recovery Environment.

UEFI/GPT-based hard drive partitions

UEFI/GPT-based hard drive partitions

learn.microsoft.com

Code:

We recommend that you place this partition in a separate partition, immediately after the Windows partition. This allows Windows to modify and recreate the partition later if future updates require a larger recovery image.

Thank you for the information
