Let's install Windows 11 on incompatible hardware

WAI · Oct 8, 2024

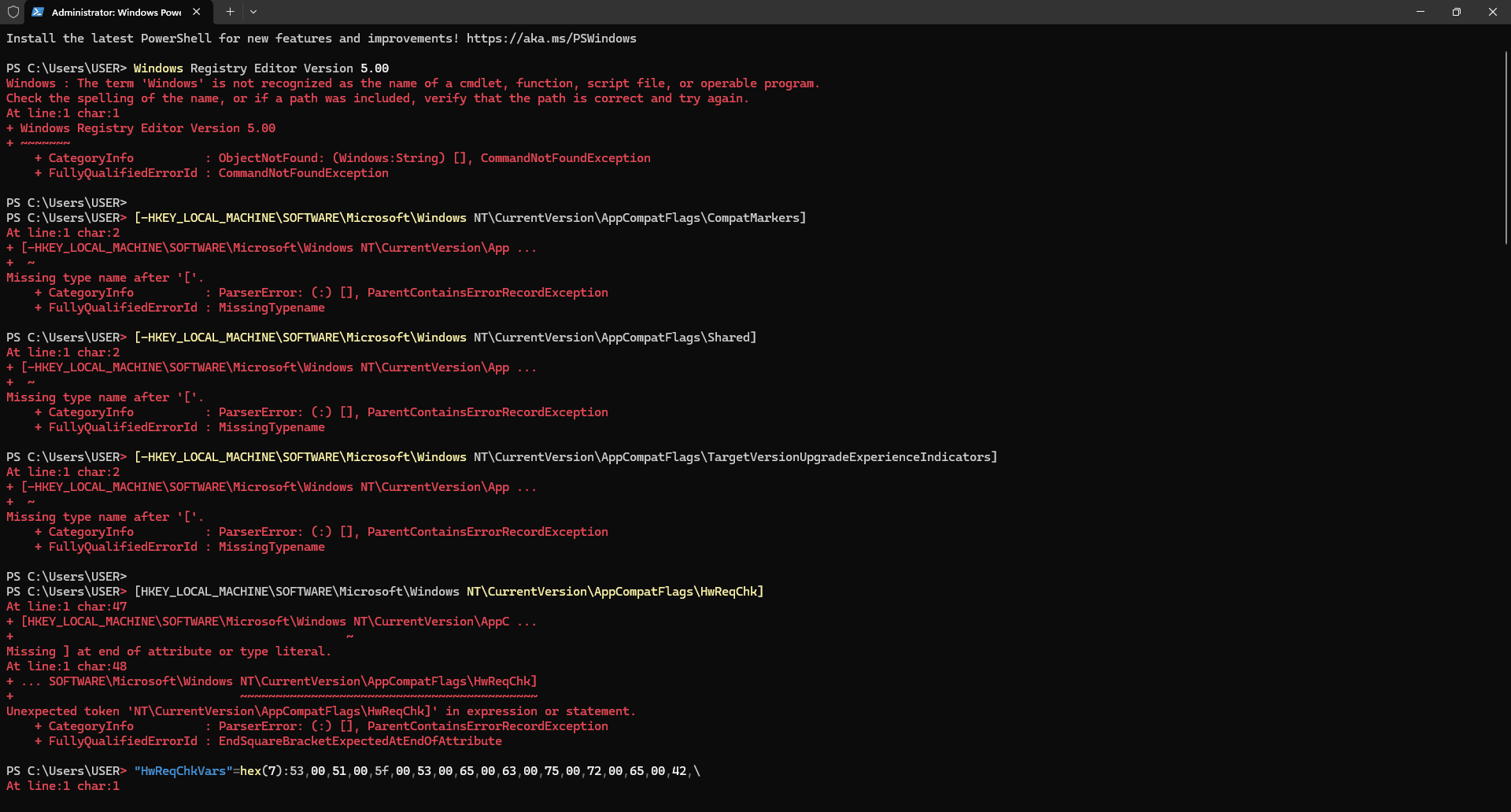

I was using power-shell.... I copied the whole thing and tried one by one command line but some are iffy to put in as idk what to remove

dacrone · Oct 8, 2024

if you are just copy/pasting code from a command line codebox on here, click the down arrow in your terminal window and click Command Prompt to load the correct console to use

garlin · Oct 8, 2024

WAI said:
Ohh..... I got it

Edit: Nope hmm..... be easier if you'd create reg files

Code:

Windows Registry Editor Version 5.00

[-HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\CompatMarkers]
[-HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\Shared]
[-HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators]

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\HwReqChk]
"HwReqChkVars"=hex(7):53,00,51,00,5f,00,53,00,65,00,63,00,75,00,72,00,65,00,42,\
  00,6f,00,6f,00,74,00,43,00,61,00,70,00,61,00,62,00,6c,00,65,00,3d,00,54,00,\
  52,00,55,00,45,00,00,00,53,00,51,00,5f,00,53,00,65,00,63,00,75,00,72,00,65,\
  00,42,00,6f,00,6f,00,74,00,45,00,6e,00,61,00,62,00,6c,00,65,00,64,00,3d,00,\
  54,00,52,00,55,00,45,00,00,00,53,00,51,00,5f,00,54,00,70,00,6d,00,56,00,65,\
  00,72,00,73,00,69,00,6f,00,6e,00,3d,00,32,00,00,00,53,00,51,00,5f,00,52,00,\
  61,00,6d,00,4d,00,42,00,3d,00,38,00,31,00,39,00,32,00,00,00,00,00

[HKEY_LOCAL_MACHINE\SYSTEM\Setup\MoSetup]
"AllowUpgradesWithUnsupportedTPMOrCPU"=dword:00000001

WAI · Oct 8, 2024

I'll deal with it tomorrow

garlin · Oct 8, 2024

Sorry, that's a .reg file not a set of CMD or PS commands.

You know:
Copy to Notepad, save as file.reg

Code:

reg.exe import file.reg

WAI · Oct 8, 2024

Well yeah but I'm fine until otherwise. I just know.... there's some way you know. Like I tried replacing some Files from 23H2 and SO Forth

antspants · Oct 8, 2024

Hang on, what diod I do wrong then?

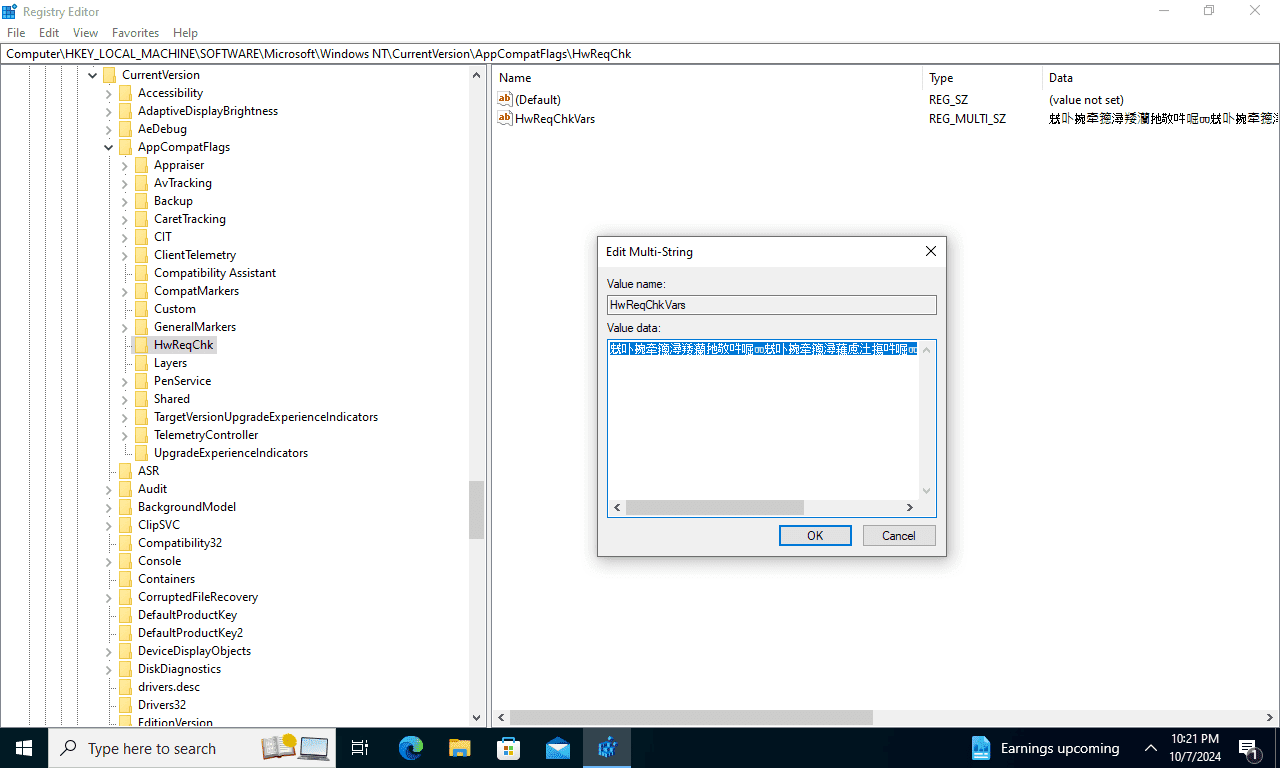

I created a reg file to accommodate all of the following and I get a different result than you with:
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\HwReqChk]

Batch

Batch:

reg.exe delete "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\CompatMarkers" /f 2>NUL
reg.exe delete "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\Shared" /f 2>NUL
reg.exe delete "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators" /f 2>NUL
reg.exe add "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\HwReqChk" /f /v HwReqChkVars /t REG_MULTI_SZ /s , /d "SQ_SecureBootCapable=TRUE,SQ_SecureBootEnabled=TRUE,SQ_TpmVersion=2,SQ_RamMB=8192,"
reg.exe add "HKLM\SYSTEM\Setup\MoSetup" /f /v AllowUpgradesWithUnsupportedTPMOrCPU /t REG_DWORD /d 1

Regedit

Code:

Windows Registry Editor Version 5.00

[-HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\CompatMarkers]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\Shared]

[-HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators]

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\HwReqChk]
"HwReqChkVars"=hex(7):53,51,5f,53,65,63,75,72,65,42,6f,6f,74,43,61,70,61,62,6c,\
  65,3d,54,52,55,45,2c,53,51,5f,53,65,63,75,72,65,42,6f,6f,74,45,6e,61,62,6c,\
  65,64,3d,54,52,55,45,2c,53,51,5f,54,70,6d,56,65,72,73,69,6f,6e,3d,32,2c,53,\
  51,5f,52,61,6d,4d,42,3d,38,31,39,32,2c,00

[HKEY_LOCAL_MACHINE\SYSTEM\Setup\MoSetup]
"AllowUpgradesWithUnsupportedTPMOrCPU"=dword:00000001

WAI · Oct 8, 2024

It's my cpu man

antspants · Oct 8, 2024

WAI said:
It's my cpu man

I think it would just be easier to run cmd as admin as instructed here and add the commands one by one.

I'd like to add a reg file but I am getting a different result from Garlin and I trust Garlin over me, I just don't know why it's different and I'd like to know before adding it.

You can muck around if you want my friend but I can at least vouch for the fact that what is on that page works.

I'd like to see you succeed

garlin · Oct 8, 2024

Padawan, that's not how REG_MULTI_SZ is encoded (it's padded with NULL's).

antspants · Oct 8, 2024

WAI said:
It's my cpu man

You mean it doesn't have SSE 4.2?

WAI · Oct 8, 2024

I'll work on it tomorrow.... 775 cpu's don't support it

antspants · Oct 8, 2024

garlin said:
Padawan, that's not how REG_MULTI_SZ is encoded (it's padded with NULL's).

View attachment 111685

Right, Obi-Wan

antspants · Oct 8, 2024

WAI said:
I'll work on it tomorrow.... 775 cpu's don't support it

Then you wont install 24H2 no matter how hard you try

WAI · Oct 8, 2024

antspants said:
Then you wont install 24H2 no matter how hard you try

Well you know I'll upgrade eventually... Lol

antspants · Oct 8, 2024

There are members that have been able to install 24H2 without SSE 4.2 but it just goes into a loop of rebooting and doesn't load, sorry my friend.

hsehestedt · Oct 8, 2024

antspants said:
There are members that have been able to install it without SSE 4.2 but it just goes into a loop of rebooting and doesn't load, sorry my friend.

You make a great point - the problem is not with the installation, but with the running of Windows once installed. It starts to give you false hope when the installation is working.

dacrone · Oct 8, 2024

WAI said:
Well you know I'll upgrade eventually... Lol

if you want a real challenge, install 23H2, edit the reg:

Code:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion

String Value - "EditionID" = IoTEnterpriseS
String Value - "ProductName" = Windows 10 IoT Enterprise LTSC 2024

then upgrade to Windows 11 IoT Enterprise LTSC 24H2 with the iso and see how close you can get it to normal 24H2 via manual installations/mods

spapakons · Oct 9, 2024

You can install 24H2 on non-SSE4.2 system using various tricks, but then doesn't boot after first restart (second stage). It never goes past the first restart, unless you replace 24H2 bootloader with the old 23H2 bootloader before booting. I haven't tried that. But even then, probably SSE4.2 is used in some other system files and fails. Once I have the time to experiment again with my test laptop without SSE4.2, I will post results.

aubergine · Oct 9, 2024

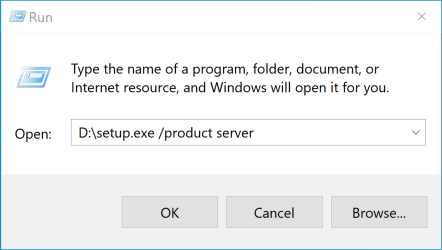

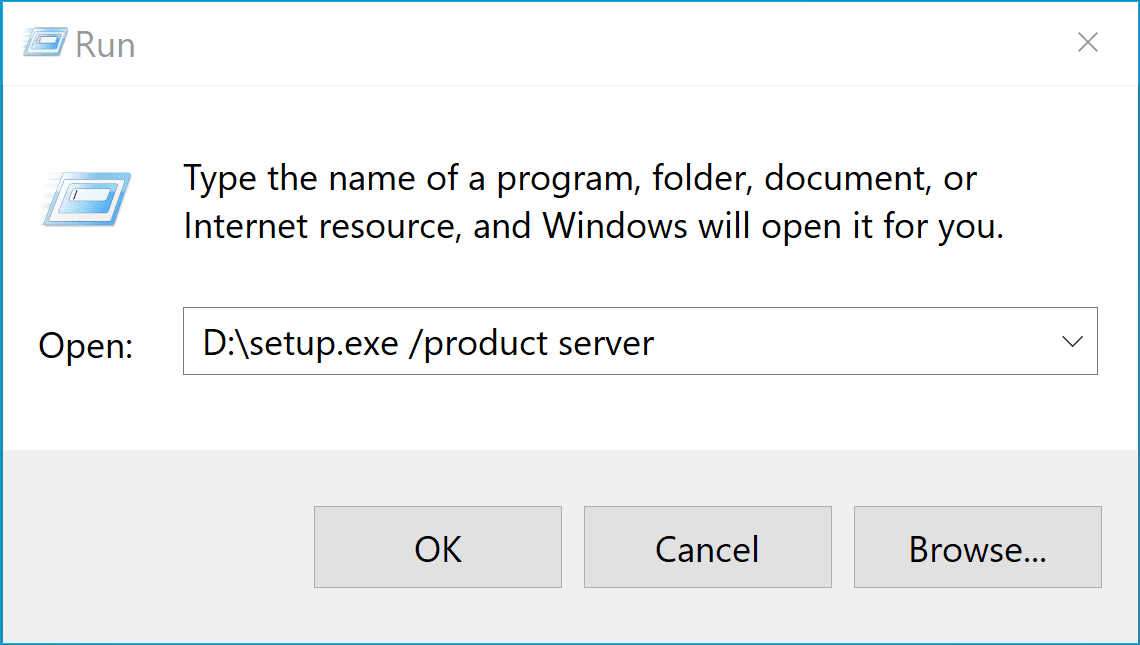

The command setup.exe /product server is the best and easiest way to bypass the system requirements (if you are using an ISO file, you must first mount the ISO file). Works with or without an internet connection. It doesn't matter if Windows 10/11 is installed on a GPT or MBR disk.

Upgrade to Windows 11

This tutorial will show you step by step on how to use an ISO or USB to manually upgrade to Windows 11 from Windows 11 (older build/version), Windows 10, Windows 8.1, or Windows 7. Windows 11 has all the power and security of Windows 10 with a redesigned and refreshed look. It also comes with...

www.elevenforum.com

<full path of setup.exe file> /product server

For example: D:\setup.exe /product server

-or-

Win 11 Boot And Upgrade FiX KiT (v5.1f Released!!!)

Win 11 Boot And Upgrade FiX KiT v5.1f [spoiler] Readme/Changelog: 5.1f Added code to skip the adding of the 22621 autorun.dll when the source iso...

forums.mydigitallife.net

24H2_Online_Upgrade_Enabler_Script.cmd

Code:

@echo off

REG QUERY HKU\S-1-5-19\Environment >NUL 2>&1
IF %ERRORLEVEL% EQU 0 goto :Got_Admin

echo ===================================================================
echo This script needs to be executed as an administrator.
echo ===================================================================
echo.
pause
goto :EOF

:Got_Admin
echo.
echo ===================================================================
echo.
echo Run this command only when you're performing a 24H2
echo ISO upgrade on unsupported hardware!!!
echo.
echo ===================================================================
:choice
set /P c=Are you sure you want to continue[Y/N]?
if /I "%c%" EQU "Y" goto :RUN
if /I "%c%" EQU "N" goto :EOF
goto :choice
echo.
:Run
:Mod_OS_Reg
ECHO.
ECHO =============================================================
ECHO Adding HwReqChkVars registry for Current OS
ECHO ^(Bypass CPU-Disksize-RAM-TPM-Secureboot checks for upgrade^)
ECHO =============================================================
ECHO.
SET "ACF=HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags"
Reg.exe delete "%ACF%\CompatMarkers" /f 1>nul 2>nul
Reg.exe delete "%ACF%\Shared" /f 1>nul 2>nul
Reg.exe delete "%ACF%\TargetVersionUpgradeExperienceIndicators" /f 1>nul 2>nul
Reg.exe add "%ACF%\HwReqChk" /f /v "HwReqChkVars" /t REG_MULTI_SZ /s "," /d "SQ_SSE2ProcessorSupport=TRUE,SQ_SSE4_2ProcessorSupport=TRUE,SQ_NXProcessorSupport=TRUE,SQ_CompareExchange128=TRUE,SQ_LahfSahfSupport=TRUE,SQ_PrefetchWSupport=TRUE,SQ_PopCntInstructionSupport=TRUE,SQ_SecureBootCapable=TRUE,SQ_SecureBootEnabled=TRUE,SQ_TpmVersion=2,SQ_RamMB=9999,SQ_SystemDiskSizeMB=99999,SQ_CpuCoreCount=9,SQ_CpuModel=99,SQ_CpuFamily=99,SQ_CpuMhz=9999," 1>nul 2>nul
if %errorlevel% equ 0 (echo The operation completed successfully.) else (The operation failed.)
Reg.exe add "HKLM\SYSTEM\Setup\MoSetup" /f /v "AllowUpgradesWithUnsupportedTPMOrCPU" /t REG_DWORD /d "1" 1>nul 2>nul
if %errorlevel% equ 0 (echo The operation completed successfully.) else (The operation failed.)
pause
exit /b

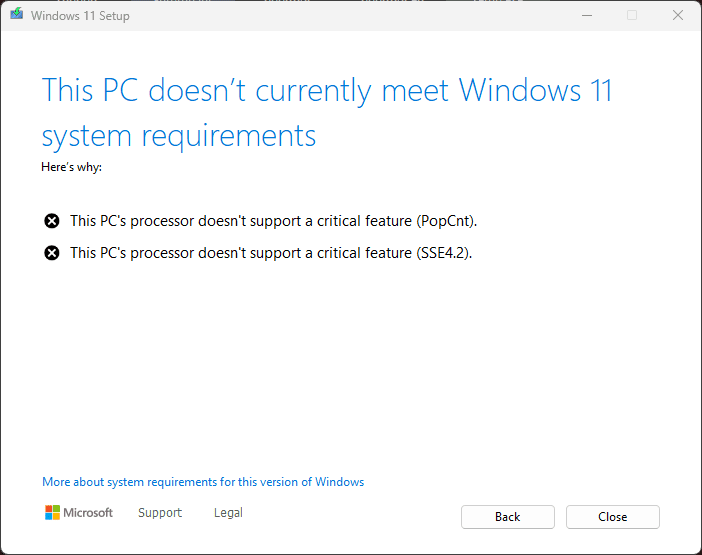

Windows 11 24H2 requires a CPU with PopCnt and SSE4.2 (2008 or newer CPU). This is a hardware requirement that cannot be bypassed.
