Solved Need Free Partitioning Software

ToddSauve · Jan 25, 2023

Fabler2 said:
The way I would do it is in stages. First is to create an image of the Windows drive.

Using MiniTool move the last partition (NTFS 505MB) to the right, 22.4GB and apply. Once done move the partition (Ext4) to the right and apply then move the NTFS (633MB) and apply. That will leave the Unallocated partition to the right of the C partition so you can expand C. Just complete the moves one at a time.
You can then expand the C drive.

Unfortunately, your recipe does not account for my Linux partition between my Win 11 and the now slightly larger 22 GB empty space. I thought that formatting the latter to EXT4 would allow me to simply merge it with my Linux install. But MiniTool won't merge EXT4 partitions. And there is no way to simply jump the 22 GB of empty space overtop of the linux install and into the Win 11 install. I just tried GPart again and it has the same problem. It won't even merge the Linux install with the 22 GB of empty space, even though they are both EXT4.

I have simply deleted the 505 MB partition and formatted both it and the 22 GB partition into NTFS and merged them in MiniTool. Then, as I said, I formatted that partition to EXT4 to tried to merge it to the Linux install. It simply will not do that in MiniTool. And in GPart all it offers in any of the tools or menus is the option to copy the 22 GB partition into my Linux install, but it warns me that it will wipe out all the information on my Linux install so that is a non-starter.

zbook · Jan 25, 2023

Please run these bat scripts and post share links into this thread using one drive, drop box, or google drive:

tuneup plus
disk par info

https://www.tenforums.com/attachments/bsod-crashes-debugging/360137d1645183388-batch-files-use-bsod-debugging-tuneup_plus_log.bat

https://www.tenforums.com/attachments/bsod-crashes-debugging/355861d1640707960-batch-files-use-bsod-debugging-diskparinfo.bat

ToddSauve · Jan 25, 2023

I simply do not understand how MiniTool works to move a partition to the right. It open up a completely different dialog, instead of allowing me to move the partition to the right with my mouse, it gives me a new window with Space before and after and I do not know how to make that happen. I have tried using the up and down arrows to increase both the before and after space but it it a profoundly inexplicable process. I don't have a clue what it is doing, and I simply have no way of comprehending it.

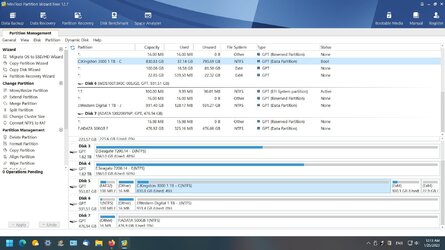

And Gpart is also an incomprehensible mess. But here is the current screenshot of MiniTool whith the current state of my system.

ToddSauve · Jan 25, 2023

zbook said:
Please run these bat scripts and post share links into this thread using one drive, drop box, or google drive:

tuneup plus
disk par info

https://www.tenforums.com/attachments/bsod-crashes-debugging/360137d1645183388-batch-files-use-bsod-debugging-tuneup_plus_log.bat

https://www.tenforums.com/attachments/bsod-crashes-debugging/355861d1640707960-batch-files-use-bsod-debugging-diskparinfo.bat

I don't use any of those storage services and wouldn't know how to link them to anything even if I did. I will run the batch files and try to save them to Notepad and post them here.

zbook · Jan 25, 2023

chkdsk:

Code:

Windows has found problems that must be fixed offline.

Open administrative command prompt and type or copy and paste:

chkdsk /b /v C:

These chkdsk switches can take significant time.
Please run chkdsk overnight while sleeping.

C:\WINDOWS\system32>chkdsk /b /v
The type of the file system is NTFS.
Cannot lock current drive.

Chkdsk cannot run because the volume is in use by another
process. Would you like to schedule this volume to be
checked the next time the system restarts? (Y/N)

Type: Y

Reboot as needed.

Open administrative command prompt and type or copy and paste:

reagentc /info
reagentc /enable
reagentc /info

Post images or share links into this thread using one drive, drop box, or google drive.

Code:

Disk 4

KINGSTON SKC3000S1024G

Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary            830 GB   117 MB
  Partition 4    Unknown            100 GB   830 GB
  Partition 5    OEM                 22 GB   931 GB

RAW system partition: Disk 5

Code:

Disk 5:  WDS100T3X0C-00SJG0

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary            931 GB   117 MB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 8                      RAW    Partition    100 MB  Healthy    Hidden

Windows RE status: Disabled

ToddSauve · Jan 25, 2023

That command is not recognized by Windows. C:\WINDOWS\system32>chkdsk /b /v

I did run the first command and it worked when I rebooted the PC. It went through 5 stages and said it repaired everything. I think it may say that whether it found any problems or not. This is a brand new drive and is very, very fast. I will move on to the remaining commands you posted.

Microsoft Windows [Version 10.0.22621.1105]
(c) Microsoft Corporation. All rights reserved.

C:\Users\Todd Sauve>reagentc /info
Windows Recovery Environment (Windows RE) and system reset configuration
Information:

Windows RE status: Disabled
Windows RE location:
Boot Configuration Data (BCD) identifier: 79e115f5-8b77-11ed-b252-b52a37c32cd6
Recovery image location:
Recovery image index: 0
Custom image location:
Custom image index: 0

REAGENTC.EXE: Operation Successful.

C:\Users\Todd Sauve>reagentc /enable
REAGENTC.EXE: The Windows RE image was not found.

C:\Users\Todd Sauve>reagentc /info

ToddSauve · Jan 25, 2023

If it is of any help, I do back up my C Drive every night using Macrium Reflect, so if I do have a disaster I can restore everything in about five minutes, Win 11 and Linux and every other partition, useful or useless.

zbook · Jan 25, 2023

There is no longer a working recovery partition on disk 4.

Before you go to bed tonight please open administrative command prompt and copy:

chkdsk /b /v

C:\WINDOWS\system32>chkdsk /b /v
The type of the file system is NTFS.
Cannot lock current drive.

Chkdsk cannot run because the volume is in use by another
process. Would you like to schedule this volume to be
checked the next time the system restarts? (Y/N)

Type: Y

Reboot as needed.

zbook · Jan 25, 2023

Are there any important files on Disk 5: WDS100T3X0C-00SJG0

ToddSauve · Jan 25, 2023

No, that drive is empty. Disk 5: WDS100T3X0C-00SJG0

zbook · Jan 25, 2023

There are EF members that regularly use Linux.

For Linux are you or do you intend to dual boot?

If Macrium can be used to move the Linux partition to another disk drive and later restore the partition then there is a work around to increase the size of C:

ToddSauve · Jan 25, 2023

Again, I ran your checkdisk command from an administrative prompt, my machine rebooted and it took less than 5 minutes to complete and told me there was nothing wrong. The second command said it cannot do that. So ...

zbook · Jan 25, 2023

When running administrative command prompt commands > type:
ctrl + a
ctrl + c

Paste into this thread typing:
ctrl + v

Please run it again and post results into this thread.

ToddSauve · Jan 25, 2023

I don't believe Macrium can move a particular partition off of one drive to another. There is the cloning option for an entire drive and that is all. Good idea, but there is also the Grub boot menu to contend with and it has both my Win 11 boot manager on it and the Linux boot manager, too. I do not believe these can be taken apart and moved to another disk without ruining the entire thing.

ToddSauve · Jan 25, 2023

None of those commands work on my PC.

Microsoft Windows [Version 10.0.22621.1105]
(c) Microsoft Corporation. All rights reserved.

C:\Users\Todd Sauve>ctrl + a
'ctrl' is not recognized as an internal or external command,
operable program or batch file.

C:\Users\Todd Sauve>ctrl + c
'ctrl' is not recognized as an internal or external command,
operable program or batch file.

C:\Users\Todd Sauve>

zbook · Jan 25, 2023

Please do not type into command prompt but type on the keyboard:

Click the ctrl key and then click the a key while holding down the ctrl key.

Then click the ctrl key and then click the c key while holding down the ctrl key.

Then paste into this thread by clicking the ctrl key and the p key while holding down the ctrl key.

Section one and three:

Keyboard Shortcuts in Windows 10

List of Keyboard Shortcuts in Windows 10

www.tenforums.com

If the above does not work then perform steps 1 and 2 in this link:

zbook · Jan 25, 2023

There are multiple TF and EF threads in which Macrium was used to move only the C: partition.

A clean install of Windows was performed on the second disk, then the C: partition was restored using Macrium.
Then there was a new system, reserved, and recovery partition with the C: partition.

ToddSauve · Jan 25, 2023

None of what you wrote above does anything that the Admin prompt will understand at all. I honestly don't even know what you are hoping for from these commands. They are futile and the video was of no help either.

ToddSauve · Jan 25, 2023

zbook said:
There are multiple TF and EF threads in which Macrium was used to move only the C: partition.

A clean install of Windows was performed on the second disk, then the C: partition was restored using Macrium.
Then there was a new system, reserved, and recovery partition with the C: partition.

But that would destroy my boot sector with Grub on it. I simply will not destroy my system trying to follow your instructions.

zbook · Jan 25, 2023

There were no instructions for the partitions.

The instructions were for the chkdsk run.
