Solved Upgrading Dell XPS 17 L702X from Windows 10 Pro to Windows 11 Pro


you need to change it from legacy mode to UFEI boot mode or Windows 11 wont install or upgrade.

best of luck, Steve ..
Motherboard/BIOS does not support those changes. Stuck with MBR/Legacy boot mode.


My Computer

System One

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 17 L702X
    CPU
    Intel Core i7-26700QM CPU @ 2.20 GHz
    Motherboard
    Dell Inc. 0K4H3G
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GT550M
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    1
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 Samsung SSD. 1 Original Dell HHD.
    PSU
    N/A
    Case
    N/A
    Cooling
    N/A
    Keyboard
    Built in
    Mouse
    Track Pad
    Internet Speed
    300 Gb
I don't know if this will help, but I have an ancient dell Inspiron 17R SE 7720 laptop which is running win 11 just fine. It originally had win 7 but was updated (free) to win 10 a year or so ago.

I used rufus to make the install USB stick and did an upgrade, not a clean install. All installed programs still work and no data was lost.

But first, I took the time to make a few preparations that might be helpful:

1) First, make backup images of your system drive and any other important data. This is always desirable before making major changes in case something goes wrong. Not from fear, but plain common sense.

2) I got rid of the ridiculous dell intel rst "raid" drivers and changed to normal AHCI. Very easy, but you have to first set windows to automatically boot to safe mode before you switch to AHCI in the bios (so windows can boot and download new drivers). Just run msconfig and look under the boot tab to do this. Revert to normal settings after you reboot and are using AHCI. Check that everything is working, then proceed.

2) Convert the system disk to GPT if it's currently the old MBR style. You can use the built in MBR2GPT program in windows. For me it didn't work when windows was running, so I ran it offline after booting to windows RE. (recovery environment). I converted all my other data drives too, but I think that's optional. Check that everything is working, then proceed.

3) In your bios settings (press F2 when booting), set the machine to boot in UEFI rather than legacy/bios mode. Check that everything is working, then proceed.

You should confirm everything is working after each step by booting into windows and making sure there are no problems or errors. Maybe run a few programs or look at a few pictures or use a browser, etc.

I think it will work for you, with only a small amount of patience and attention to detail.
My laptop came out in 2011, and yours came out in 2012. Pretty sure on your 3rd point that the BIOS in this laptop will not allow me to boot in UEFI. Could not even get to that setting in the BIOS which I had checked originally. From my research some people have created a modied BIOS for this laptop, but I am not going down that road. For the little I do on this laptop, will not connect to internet when using, and just use as my music streaming device. Will look in to your suggestions when I have some time. Thanks.

Last edited:

My Computer

System One

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 17 L702X
    CPU
    Intel Core i7-26700QM CPU @ 2.20 GHz
    Motherboard
    Dell Inc. 0K4H3G
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GT550M
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    1
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 Samsung SSD. 1 Original Dell HHD.
    PSU
    N/A
    Case
    N/A
    Cooling
    N/A
    Keyboard
    Built in
    Mouse
    Track Pad
    Internet Speed
    300 Gb
My laptop came out in 2011, and yours came out in 2012. Pretty sure on your 3rd point that the BIOS in this laptop will not allow me to boot in UEFI. Could not even get to that setting in the BIOS which I had checked originally. From my research some people have created a modied BIOS for this laptop, but I am not going down that road. For the little I do on this laptop, will not connect to internet when using, and just use as my music streaming device. Will look in to your suggestions when I have some time. Thanks.

Be sure you have the latest bios firmware, because uefi could have been added later.

I seem to remember reading something (probably here) about being able to install with legacy bios. But I didn't have to go that route, and it's been over a year, so might not be true now.

Sorry I couldn't help better, but maybe someone else will be able to refer any methods that might work.


My Computer

System One

  • OS
    win 11 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell 790 (Mt)
    CPU
    i5-2400
    Motherboard
    Dell
    Memory
    32 GB DDR-3
    Graphics Card(s)
    Intel HD Graphics 2000 (on-board)
    Sound Card
    Intel Cougar Point PCH [B2] (On-Board)
    Monitor(s) Displays
    LG 27MN60T
Be sure you have the latest bios firmware, because uefi could have been added later.

I seem to remember reading something (probably here) about being able to install with legacy bios. But I didn't have to go that route, and it's been over a year, so might not be true now.

Sorry I couldn't help better, but maybe someone else will be able to refer any methods that might work.
Updated the BIOS. No UEFI. Will check out your suggestions when I get a chance. Thanks. Rob


My Computer

System One

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 17 L702X
    CPU
    Intel Core i7-26700QM CPU @ 2.20 GHz
    Motherboard
    Dell Inc. 0K4H3G
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GT550M
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    1
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 Samsung SSD. 1 Original Dell HHD.
    PSU
    N/A
    Case
    N/A
    Cooling
    N/A
    Keyboard
    Built in
    Mouse
    Track Pad
    Internet Speed
    300 Gb
right, i have found this. UEFI is doable on your computer you just have to format the SSD GPT and install using UEFI mode.
UEFI doesn't have to be enabled or present .. just install Win 11 using UEFI mode after formatting the SSD to GPT.

here is the link.

edit to add.

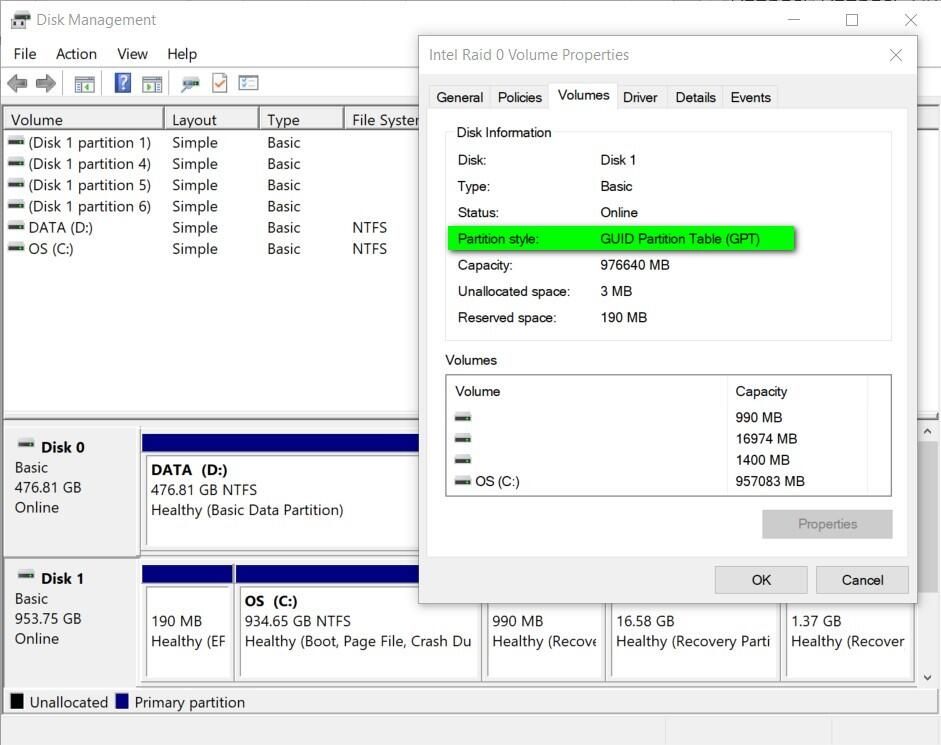

how to format a SSD in GPT Windows

this also maybe of help.

best of luck, Steve ..

Last edited:

My Computers

System One System Two

  • OS
    .. Debian 'Testing' .. Win 11 24H2 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP 24" AiO
    CPU
    Ryzen 7 5825u
    Motherboard
    HP
    Memory
    64GB DDR4 3200
    Graphics Card(s)
    Ryzen 7 5825u
    Sound Card
    RealTek
    Monitor(s) Displays
    24" HP AiO
    Hard Drives
    1TB WD Blue SN580 M2 SSD Partitioned.
    2x 1TB USB HDD External Backup/Storage.
    Internet Speed
    900MB full fibre
    Browser
    Firefox ESR & Thunderbird
    Antivirus
    ClamAV TK
    Other Info
    Mainly Open Source Software
  • Operating System
    Ubuntu 22.04.5 LTS
    Computer type
    Laptop
    Manufacturer/Model
    Dell 13" Latitude 2017
    CPU
    i5 7200u
    Motherboard
    Dell
    Memory
    16GB DDR4
    Graphics card(s)
    Intel
    Sound Card
    Intel
    Monitor(s) Displays
    13" Dell Laptop
    Hard Drives
    250GB Crucial 2.5" SSD
    Mouse
    Gerenic 3 button
    Internet Speed
    WiFi only
    Browser
    FireFox
    Antivirus
    ClamAV TK
    Other Info
    Mainly Open Source Software
right, i have found this. UEFI is doable on your computer you just have to format the SSD GPT and install using UEFI mode.
UEFI doesn't have to be enabled or present .. just install Win 11 using UEFI mode after formatting the SSD to GPT.

here is the link.

edit to add.
how to format a SSD in GPT Windows

this also maybe of help.

best of luck, Steve ..
Will check it out. Thanks, Steve.
