Solved Black SOD - Random crashing

AnonFromUS114 · Jan 11, 2025

zbook said:
Open administrative command prompt and copy and paste:

driverquery /si

pnputil.exe /enum-drivers

dism /online /get-drivers /format:table

Post share links for each command.

DonE!

zbook · Jan 11, 2025

Restart WDV with all customized tests except:

Code:

    [ ] 0x00000004 Randomized low resources simulation.

Test all non-Microsoft drivers except:

Code:

wdcsam64.sys

Run for 24 hours.

If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.

For any BSOD post a new V2 share link into the newest post.

zbook · Jan 11, 2025

1) Open administrative command prompt and copy and paste:

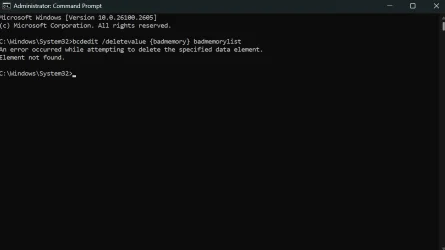

bcdedit /deletevalue {badmemory} badmemorylist

2) Post a new Tuneup plus share link

https://www.tenforums.com/attachments/bsod-crashes-debugging/360139d1645183596-batch-files-use-bsod-debugging-tuneup_plus_log.zip

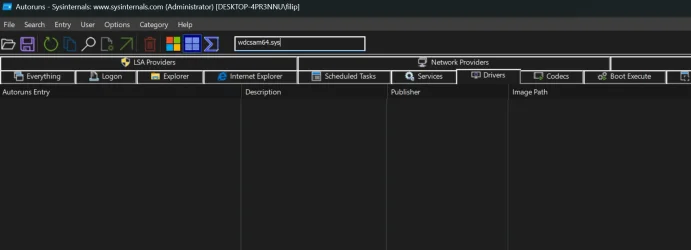

3) Search for wdcsam64.sys using autoruns (option 6 in the link) > post images or share links

wdc_sam WD SCSI Pass Thru driver c:\windows\system32\drivers\wdcsam64.sys

Uninstall Driver in Windows 11

This tutorial will show you how to uninstall a driver for a device in Windows 10 and Windows 11. When a device is connected to your PC, Windows will usually automatically install drivers for it, or you may have to manually install the device's driver software. Sometimes it might be necessary...

www.elevenforum.com

AnonFromUS114 · Jan 11, 2025

For WDCsam64.sys could it have been a usb drive? I did unplug it.

Systems crashes to black screen persist.

AnonFromUS114 · Jan 11, 2025

zbook said:
Restart WDV with all customized tests except:

Code:

[ ] 0x00000004 Randomized low resources simulation.

Test all non-Microsoft drivers except:

Code:

wdcsam64.sys

Run for 24 hours.

If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.

For any BSOD post a new V2 share link into the newest post.

BSOD was triggerred

zbook · Jan 11, 2025

Please post a new querysettings.

Tuneup plus results were excellent.

Download and install:

voidtools

www.voidtools.com

Search for the driver.

Modify the driver name:

wdcsam64.sys > wdcsam64.sys.old

After 24 hours WDV > turn off the tool

Run Memtest86+ for 8 or more passes > take pictures > post images or share links

Memtest86+ | The Open-Source Memory Testing Tool

Just 1 error is a test fail and testing can be aborted.

The more the passes the better the testing conditions.

It sometimes takes passes into the 20's to detect malfunctioning RAM.

The RAM can be tested all at one time or one at a time in the same DIMM.

Memtest86+ | The Open-Source Memory Testing Tool

If you cannot boot Memtest86+ then run Memtest86 free version for four passes.

MemTest86 - Official Site of the x86 Memory Testing Tool

MemTest86 is the original self booting memory testing software for x86 and ARM computers. Supporting both BIOS and UEFI, with options to boot from USB.

www.memtest86.com

MemTest86+ - Test RAM

Code:

        [BcdEdit /enum {badmemory}]

RAM Defects
-----------
identifier              {badmemory}

zbook · Jan 11, 2025

Uninstall or uninstall and reinstall:

aesmaudl AE USB Audio Driver-Lower (Samson) c:\windows\system32\drivers\aesmaudl64.sys

Restart WDV.

AnonFromUS114 · Jan 11, 2025

zbook said:
Please post a new querysettings.

Just a heads up, I ran the verifier like you told me too in post #22 and it triggered a BSOD, I posted that log. I have since turned the verifier settings off.

zbook said:
ownload and install:

voidtools

www.voidtools.com

Search for the driver.

Modify the driver name:

wdcsam64.sys > wdcsam64.sys.old

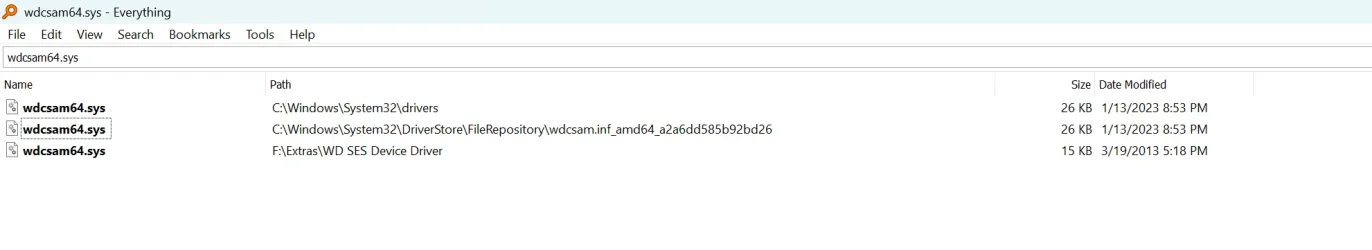

I have three entries; I figure it has to be one of the top two, do I change one of them or both of them?

AnonFromUS114 · Jan 11, 2025

zbook said:
Uninstall or uninstall and reinstall:

aesmaudl AE USB Audio Driver-Lower (Samson) c:\windows\system32\drivers\aesmaudl64.sys

Restart WDV.

zbook · Jan 11, 2025

Please run: > post a share link

https://www.tenforums.com/attachments/bsod-crashes-debugging/355861d1640707960-batch-files-use-bsod-debugging-diskparinfo.bat

Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first

www.tenforums.com

Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first

www.tenforums.com

AnonFromUS114 · Jan 11, 2025

No BSOD on start-up. Here's the querysettings

zbook · Jan 11, 2025

The driver is dated 2014.

Please modify the driver name:

aesmaudl64.sys > aesmaudl64.sys.old

Code:

AESMAudL64.sys Wed May  7 12:48:08 2014 (536A71D8)

AnonFromUS114 · Jan 11, 2025

zbook said:
The driver is dated 2014.

Please modify the driver name:

aesmaudl64.sys > aesmaudl64.sys.old

Code:

AESMAudL64.sys Wed May 7 12:48:08 2014 (536A71D8)

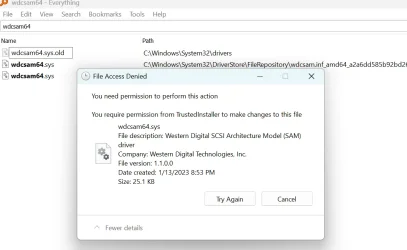

For both this and wdcsam64.sys it is asking me for permission from TeustedInstaller.

Also, do I modify both entries in System32 and System32\DriverStore?

I've attached the DiskParInfo log.

zbook · Jan 11, 2025

Please restart WDV > run all customized tests except:

Code:

    [ ] 0x00000004 Randomized low resources simulation.

Test all non-Microsoft drivers.

Run for 24 hours.

If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.

For any BSOD post a new V2 share link into the newest post

It's 3:15 AM > heading to bed
I'll catch up with you later in the day.

zbook · Jan 11, 2025

Backup all drivers:

Backup and Restore Device Drivers in Windows 11

This tutorial will show you how to back up and restore all 3rd party device drivers on your Windows 10 and Windows 11 PC. If you clean install Windows, you will need to install drivers for each device in the system. Some of these device drivers may no longer be available from the manufacturer...

www.elevenforum.com

Disk #2: WD My Book 1230 USB Device may need the earlier driver?
See if you can find a replacement driver.

For now run WDV without testing these drivers.

AnonFromUS114 · Jan 12, 2025

zbook said:
Backup all drivers:

Backup and Restore Device Drivers in Windows 11

This tutorial will show you how to back up and restore all 3rd party device drivers on your Windows 10 and Windows 11 PC. If you clean install Windows, you will need to install drivers for each device in the system. Some of these device drivers may no longer be available from the manufacturer...

www.elevenforum.com

I've done this.

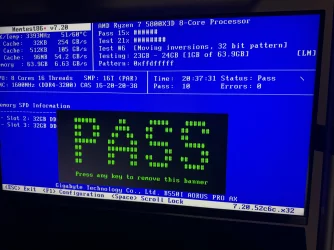

also, 22 hours of Memtest 86+ 10 passes, no errors found.

zbook · Jan 12, 2025

Which drivers were uninstalled?

Which drivers were not tested?

Please post images or share links memtest.

AnonFromUS114 · Jan 12, 2025

zbook said:
Which drivers were uninstalled?

Which drivers were not tested?

I did not check off aesmaudl64.sys or wdcsam64.sys.

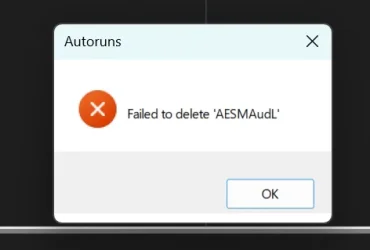

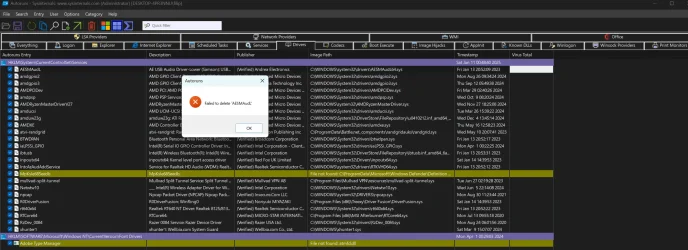

I could not delete or change the name of either driver. Autoruns failed to delete it, and Everything indicates I need a TrustedInstaller to change the name for either driver.

I am currently running driver verifier for 24 hours.

zbook · Jan 12, 2025

AnonFromUS114 said:
also, 22 hours of Memtest 86+ 10 passes, no errors found.

Please post images or share links memtest.

Was autorun run as administrator?

AnonFromUS114 · Jan 12, 2025

zbook said:
Please post images or share links memtest.

Was autorun run as administrator?

Yes!
