Solved BSOD UNEXPECTED_KERNEL_MODE_TRAP

zbook · Aug 11, 2023

When available please post a new V2 share link into the newest post.

Gianmarco · Aug 11, 2023

After a few evenings with no bsod, this morning it occured again. Here it is the v2 link BSOD(2023-08-11_12-38-16).zip always same error, same parameter...

x BlueRobot · Aug 11, 2023

When you have the opportunity, I would recommend that you run MemTest86 for 8 passes as suggested previously. If you aren't able to get the tool to boot again then please let us know, or alternatively, you could always swap out your current RAM sticks for another compatible set if have any available.

x BlueRobot · Aug 11, 2023

I've just noticed that the gameflt service is running and the start mode has been set to manual. Have you made any changes to this service?

Gianmarco · Aug 11, 2023

x BlueRobot said:
I've just noticed that the gameflt service is running and the start mode has been set to manual. Have you made any changes to this service?

I did a few updates on Wednesday (KB5029263, KB5028948, KB5029688), maybe I've to run again the command of your previous post?
For the memtest: I tried with another pen-drive and it worked, so in a few hours I'll start memtest+

x BlueRobot · Aug 11, 2023

One of the updates has likely added it back and enabled it again. I've written a new script which combines the previous steps we did before together.

Please run the attached script and then attach the fixlog.txt to your next post.

zbook · Aug 11, 2023

Please run:

https://www.tenforums.com/attachments/bsod-crashes-debugging/358470d1643456903-batch-files-use-bsod-debugging-gather_additional_dump_files.bat

Post a share link into this thread using one drive, drop box, or google drive.

For Memtest+ please make sure that 8 or more passes are performed for each test.

The more the passes the better the testing conditions.

Just 1 error is a test fail and testing can be aborted.

Gianmarco · Aug 13, 2023

Test 9 is still running, but seems that all is going well. Let me know if it’s ok or I have to wait until the end of test 10

zbook · Aug 13, 2023

When were the RAM modules installed?

1) Please complete the tenth pass > post an image or share link

2) Check the motherboard Qualified Vendor List (QVL) > report whether the installed RAM is or is not on the QVL

3) Post a share link for:
https://www.tenforums.com/attachmen...od-debugging-gather_additional_dump_files.bat

4) Post a new V2 share link into the newest post

Gianmarco · Aug 13, 2023

RAM were installed in middle 2021 and yes they are in motherboard QVL list (CMW32GX4M2D3600C18 this is the ram model number).

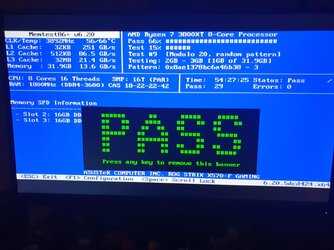

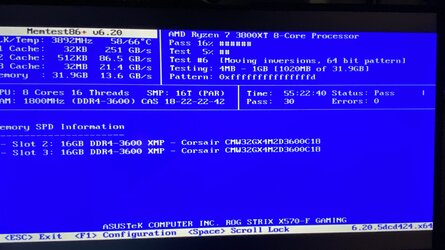

Maybe I’m wrong but under the time memtest is running show a Pass:30 and now it restarted and it’s at test 6. Here a pics after the tenth test I think. Let me know if I can normally boot the computer, thank you.

zbook · Aug 13, 2023

There were 30 passes with no errors.

Please reboot the computer and post share links.

Gianmarco · Aug 13, 2023

x BlueRobot said:
One of the updates has likely added it back and enabled it again. I've written a new script which combines the previous steps we did before together.

Please run the attached script and then attach the fixlog.txt to your next post.

Here the log for FRST: Fixlog.txt

zbook said:
When were the RAM modules installed?

1) Please complete the tenth pass > post an image or share link

2) Check the motherboard Qualified Vendor List (QVL) > report whether the installed RAM is or is not on the QVL

3) Post a share link for:
https://www.tenforums.com/attachmen...od-debugging-gather_additional_dump_files.bat

4) Post a new V2 share link into the newest post

And here the zip for the batch I downloaded: LiveKernel Reports 2023-08-13 (23-40-52).zip

Hope I did everything in the right way. Always thanks for all the help you are giving me.

zbook · Aug 13, 2023

Please post a new V2.

x BlueRobot · Aug 13, 2023

Gianmarco said:
Here the log for FRST: Fixlog.txt

Your fix log looks good to me, it seems that gameflt.sys has been successfully removed and is no longer running. If you have any other crashes, then check that gameflt is present using the fltmc filters command.

x BlueRobot · Aug 13, 2023

Your RAM looks okay to me, from what I remember of MemTest86(+), you have multiple tests per a pass.

zbook · Aug 13, 2023

Post a new V2 share link then reinstall the AMD chipset drivers.

https://www.amd.com/en/support

Gianmarco · Aug 14, 2023

zbook said:
Post a new V2 share link then reinstall the AMD chipset drivers.

https://www.amd.com/en/support

Here the link to the V2 log LOG-(2023-08-14_11-15-41).zip
I'm going to reinstall all the chipset drivers.

zbook · Aug 14, 2023

Please use reliability monitor and report any BSOD and / or unexpected shutdowns and restarts.

View Reliability History in Windows 11

This tutorial will show you how to view reliability history for your Windows 11 device. The Reliability Monitor provides a system stability overview and details about events that impact reliability. It calculates the Stability Index shown in the System Stability Chart. Reliability Monitor...

www.elevenforum.com

Reliability Monitor is the Best Windows Troubleshooting Tool You Aren't Using

When it comes to hidden gems in Windows, nothing beats the Reliability monitor tool, hidden behind a link inside of another tool that you don't use either.

www.howtogeek.com

Gianmarco · Aug 16, 2023

x BlueRobot said:
Your fix log looks good to me, it seems that gameflt.sys has been successfully removed and is no longer running. If you have any other crashes, then check that gameflt is present using the fltmc filters command.

Checked today and it's still alive

zbook said:
Please use reliability monitor and report any BSOD and / or unexpected shutdowns and restarts.

View Reliability History in Windows 11

This tutorial will show you how to view reliability history for your Windows 11 device. The Reliability Monitor provides a system stability overview and details about events that impact reliability. It calculates the Stability Index shown in the System Stability Chart. Reliability Monitor...

www.elevenforum.com

Reliability Monitor is the Best Windows Troubleshooting Tool You Aren't Using

When it comes to hidden gems in Windows, nothing beats the Reliability monitor tool, hidden behind a link inside of another tool that you don't use either.

www.howtogeek.com

Using the reliability monitor these days I saw some errors about some services that didn't work, today I had the first BSOD after a few good days. Bluscreenviewer doesn't show any code, but before reboot I red kernel security check (could be?) Here the link to the v2 log and the screen of the reliability:
V2: BSOD(2023-08-16_17-23-43).zip
Reliability: https://1drv.ms/i/s!Ah6ejrCrNAyugYlDqofvZ5rgue6OvA?e=kbFV0D https://1drv.ms/i/s!Ah6ejrCrNAyugYlEGr6l-aHNhKO4jw?e=GGCmgU https://1drv.ms/i/s!Ah6ejrCrNAyugYlFiNDkNH_2JpyJkw?e=SfPI8O
fltmc command: https://1drv.ms/i/s!Ah6ejrCrNAyugYlGAipN1gsDRlwgdw?e=JdKEtA

zbook · Aug 16, 2023

1) Make a new restore point:

Create System Restore Point in Windows 11

This tutorial will show you how to manually create a restore point in Windows 11. Turning on system protection for a drive allows System Restore to include the drive when restore points are created so you can undo undesired system changes by reverting to a previous point in time. System...

www.elevenforum.com

2) Read this link on Window Driver Verifier (WDV):

Enable and Disable Driver Verifier in Windows 10

How to Enable and Disable Driver Verifier in Windows 10

www.tenforums.com

Learn the methods to recover from using the tool by booting into safe mode and running one or more of these commands:

verifier /reset

verifier /bootmode resetonbootfail

Start WDV with these settings:

a) test all non-Microsoft drivers
b) test no Microsoft drivers
c) start the testing with the 3 customized tests in the Ten Forums WDV link

If there is no immediate BSOD open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link into the newest post using one drive, drop box, or google drive.

For any BSOD post a new V2 share link into the newest post using one drive, drop box, or google drive.

Plan to run WDV with various customized tests for 48 hrs or 24 hrs after the last BSOD.
