How to enable missing power plan profiles on Windows 10 20H2 and later, and Windows 11

ShamrockRig · Jul 15, 2021

abactuon said:
For example, I want to disable turbo boost, but this setting is hidden. Have to run
# Processor performance boost mode
C:\Windows\System32\powercfg.exe -attributes SUB_PROCESSOR PERFBOOSTMODE -ATTRIB_HIDE

Thats typically always been a BIOS setting for me

badrobot · Jul 16, 2021

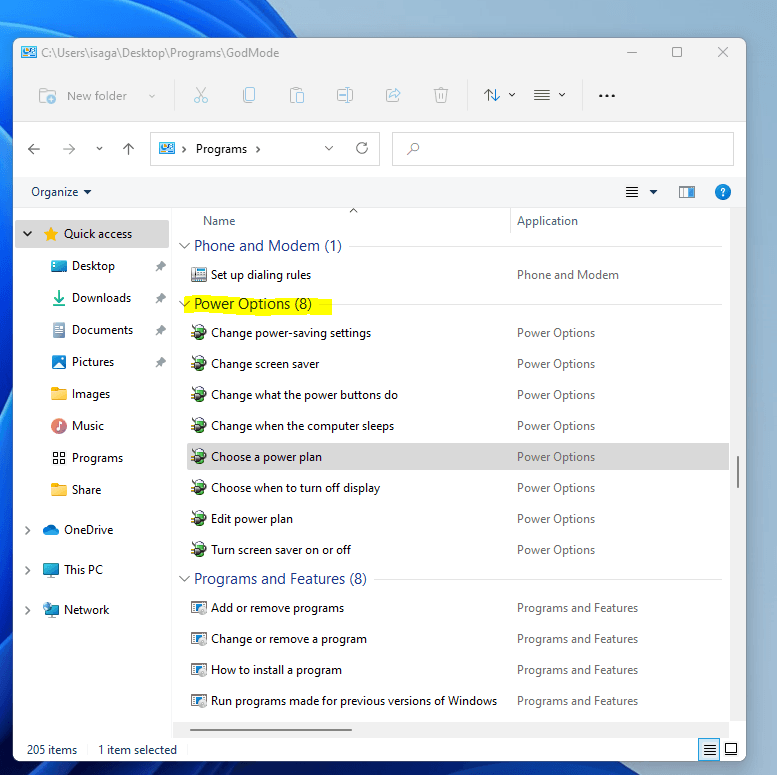

God mode is also another option to look around...

ShamrockRig · Jul 16, 2021

badrobot said:
God mode is also another option to look around...

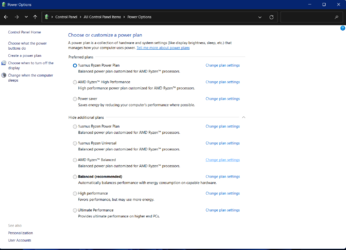

View attachment 3145

I did not know about this! That's really useful thank you!

badrobot · Jul 16, 2021

Devlin1888 said:
I did not know about this! That's really useful thank you!

Brink has a tutorial for God Mode over at Tenforums. It also works on Windows 11.

ShamrockRig · Jul 16, 2021

badrobot said:
Brink has a tutorial for God Mode over at Tenforums. It also works on Windows 11.

I have a quick Google. Got it going :)

badrobot · Jul 16, 2021

Devlin1888 said:
I have a quick Google. Got it going :)

You can drag anything from Godmode to your desktop to create a shortcut if you use it regularly.

Almighty1 · Jul 16, 2021

Ghot said:
Be aware that sometimes updating the chipset driver will change power plans, also.

Dru2 said:
I guess I can't argue about your laptop, but on mine no such issues exist. I just created this custom High Performance power plan. No registry hacks required. All done from the Power Settings...

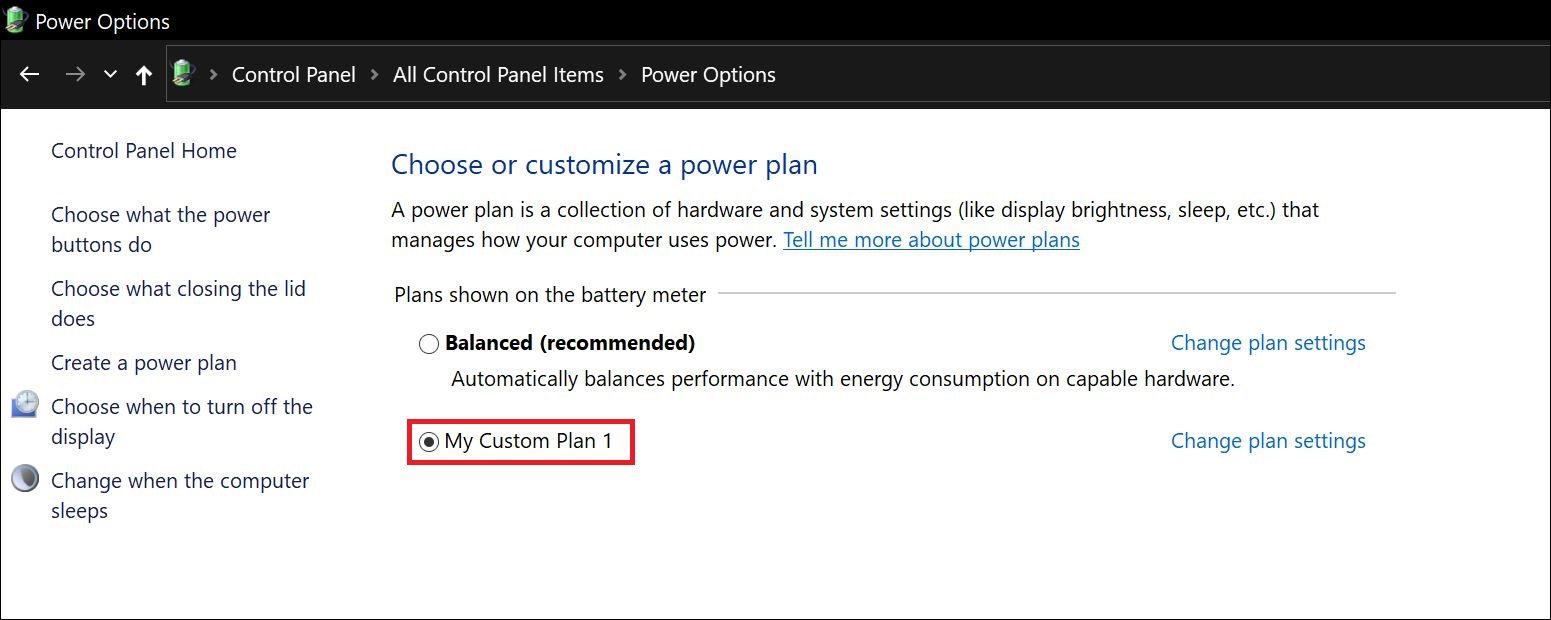

View attachment 3107

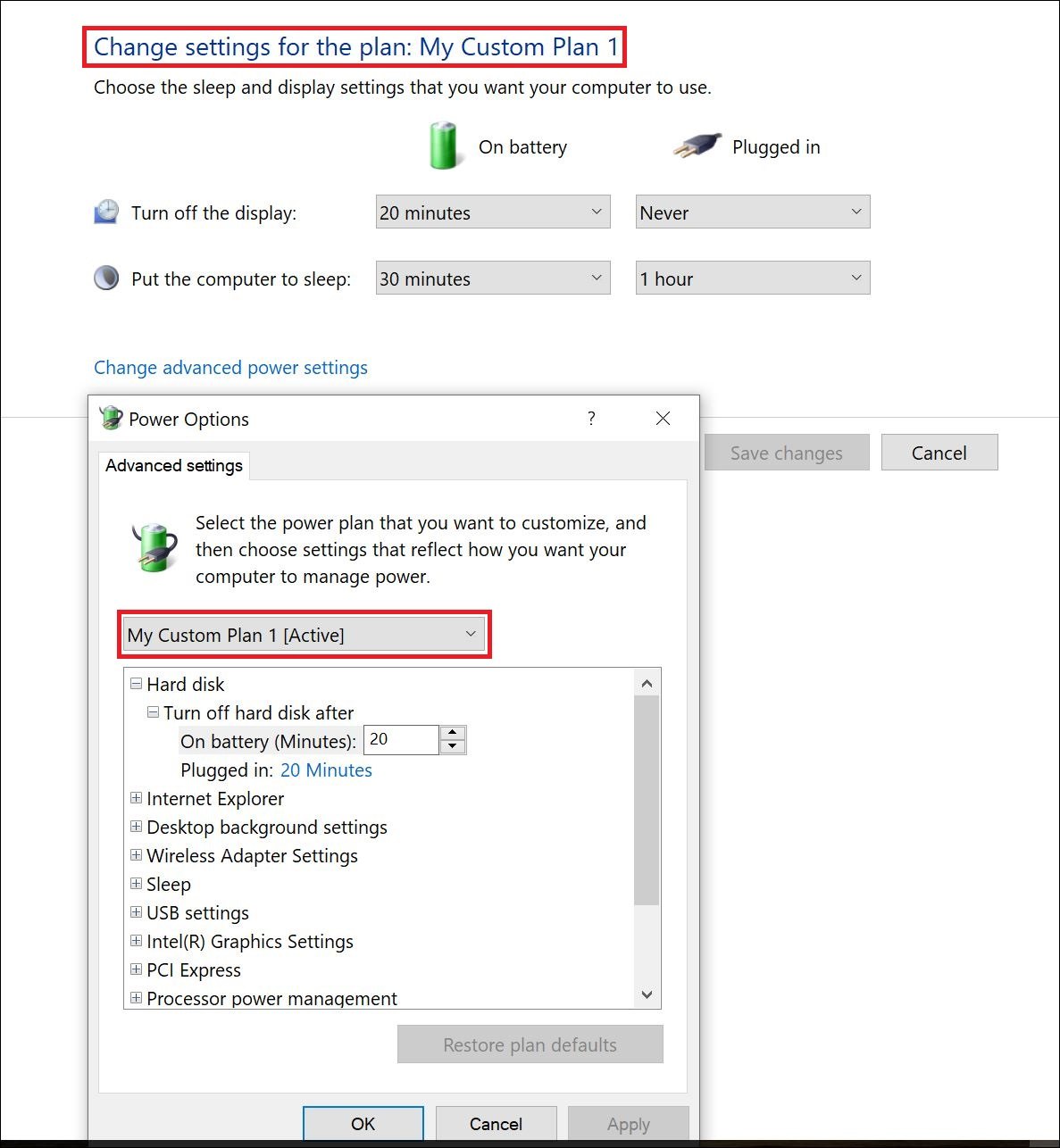

View attachment 3109

Works for me. This is on a 2017 (2nd gen) Lenovo ThinkPad Yoga X1.

At any rate I recognize that not everyone doesn't have the same equipment with the same options so, I guess other actions are needed.

Peace

It's hard to say and there can be several factors involved, your BIOS still has support for S3 as usually, it's the updated versions of the BIOS that killed it. Lenovo seemed to have gone the opposite direction which is good, from no S3 to S3 enabled at least on the 3rd Gen Yoga X1.

https://www.reddit.com/r/thinkpad/comments/br0wtv

Hmm, I thought you had all the other profiles enabled by default but you only created the High Performance plan? According to post #13 in this thread, the High Performance Plan that is created manually versus the one that ships with Windows behave differently for the CPU:

Power options missing High Performance option - Windows 10 Help Forums

Surface 3. Windows 10 Home, version 1709 Build 16299.192 Cannot find the High Performance option under Power Options. I used registry editing: HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\Power

www.tenforums.com

Ofcourse the bad part about ThinkPads is whatever hardware you put in, has to be on their whitelist or else it won't work providing it's the same make/model of a product. This machine was more of a fast replacement 2 years ago so I will probably get something else. ThinkPad is the reference standard after all provided it's a real ThinkPad model and not something that Lenovo just slaps the ThinkPad name on it. Yes, I am a ThinkPad user and even have a thinkpads.com email address since 1996.

CountMike · Jul 16, 2021

Didn't loose any

Dru2 · Jul 16, 2021

Almighty1 said:
Hmm, I thought you had all the other profiles enabled by default but you only created the High Performance plan? According to post #13 in this thread, the High Performance Plan that is created manually versus the one that ships with Windows behave differently for the CPU:

If you go back to post #9 you'll see in the image I can choose a plan or create a plan.

At any rate the custom plan I created was only a test to see if it could be done seeing some said it couldn't. All I did was change a few settings and created the profile for high performance. I could have did more tweaks but this was only a test.

Hope that clarifies :)

CountMike · Jul 16, 2021

Dru2 said:
If you go back to post #9 you'll see in the image I can choose a plan or create a plan.

At any rate the custom plan I created was only a test to see if it could be done seeing some said it couldn't. All I did was change a few settings and created the profile for high performance. I could have did more tweaks but this was only a test.

Hope that clarifies :)

Power plans you don't have to make one by one, it's enough to have one, modify it and save with different name, that's how I created some of them. Other plan like Ryzen power plan (high performance and power saver) came with installation of AMD chipset drivers. 1usmus PP came from a well known Ryzen (and other AMD) contributor. It contains parts that are hidden from normal user and so not easily accessible.
Nice tool for PPs Power Plan Assistant
and

PowerSettingsExplorer

MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.

www.mediafire.com

Almighty1 · Jul 19, 2021

Dru2 said:
Oh, the ole "registry hacks" makes everything fine mentality.

Pretty sure if people actually "explored" the OS they would find that many of those reg hacks are unnecessary and aren't required.

Also, when something goes wrong due to such hacks, it's always Windows' fault, never the one tinkering with the registry.

This is actually documented by Microsoft so unlike other hacks, there is something in writing when it comes to liability:

Wake on Touch - Windows IoT

Configure your device to wake on touch, so that it turns off while not in use but turns on quickly when you touch the screen. Set a video idle timeout.

docs.microsoft.com

Almighty1 · Jul 19, 2021

Dru2 said:
If you go back to post #9 you'll see in the image I can choose a plan or create a plan.

At any rate the custom plan I created was only a test to see if it could be done seeing some said it couldn't. All I did was change a few settings and created the profile for high performance. I could have did more tweaks but this was only a test.

Hope that clarifies :)

That was why I made that comment. I guess if you had the default 3 profiles (Balanced, High Performance, Power Saver) already shown, then it's not a issue. Some people only have the Balanced profile since if you looked at my screenshot, I still wonder if there is a difference between the Dell and the Balanced power plan as the description is exactly the same. In any case, I was curious, do you have the Power Management tab in your devices in Device Manager because I still don't have it even with the registry hack.

Update: I do see the Power Management tab after I updated from the Killer 1535 WiFi 802.11ac/Bluetooth v4.1 to the Intel AX210ngw WiFi 6E/Bluetooth v5.2

Almighty1 · Jul 19, 2021

CountMike said:
Power plans you don't have to make one by one, it's enough to have one, modify it and save with different name, that's how I created some of them. Other plan like Ryzen power plan (high performance and power saver) came with installation of AMD chipset drivers. 1usmus PP came from a well known Ryzen (and other AMD) contributor. It contains parts that are hidden from normal user and so not easily accessible.
Nice tool for PPs Power Plan Assistant
and

PowerSettingsExplorer

MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.

www.mediafire.com

Good to know. Just curious, is this a desktop or a laptop? I would think Desktops would come with the standard power plans all shown (Power Saver, Balanced, High Performance), only Ultimate Performance would be hidden.

Ed Tittel · Jul 20, 2021

Thanks for the discussion peeps: I just checked on my two Win11 test machines and the Power Options widget in Control Panel works the same as it did in Windows 10 for both of them. Possible that a clean install may make a difference. Both of my test machines -- Lenovo X380 Yoga (2018) and X12 Hybrid/Detachable (2021) -- had power plans defined in Windows 10 before their upgrades, and continue to show the same stuff after moving up to Windows 11. Hope this input is helpful: if not, please ignore! Thanks, =e=

Bemosu · Oct 15, 2023

Almighty1 said:
There used to be the option of setting CsEnabled option to 0 in the registry key prior to Windows 10 20H2 which Microsoft had removed and disabled on Windows 10 2004 and later:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power

Update for Windows 10 >= 20h2 including Windows 11:

Restore Missing Power Plans in Windows 11

This tutorial will show you how to restore the built-in Balanced, High performance, Power saver, and/or Ultimate Performance power plans if missing in Windows 10 and Windows 11. A power plan is a collection of hardware and system settings that manages how your computer uses power. Power plans...

www.elevenforum.com

Prior to doing the above, you need to do the following and reboot:

Disable Modern Standby in Windows 10 and Windows 11

This tutorial will show you how to disable Modern Standby (S0 Low Power Idle) to enable S3 support on a Windows 10 and Windows 11 device. In Windows 10 and Windows 11, there are two power models for PCs: S3 and Modern Standby (S0 Low Power Idle). The S3 power model is an older standard and is...

www.elevenforum.com

Setting PlatformAoAcOverride to 0 under HKLM\System\CurrentControlSet\Control\Power. Removing the entry again to get back modern standby.

Open cmd.exe as admin and run:

reg add HKLM\System\CurrentControlSet\Control\Power /v PlatformAoAcOverride /t REG_DWORD /d 0

You can just run regedit as admin and delete PlatformAoAcOverride under HKLM\System\CurrentControlSet\Control\Power again to revert back. Or just as admin in cmd.exe:

reg delete "HKLM\System\CurrentControlSet\Control\Power" /v PlatformAoAcOverride

This right here:

reg add HKLM\System\CurrentControlSet\Control\Power /v PlatformAoAcOverride /t REG_DWORD /d 0

MAN. I don't know how to show my gratitude for you in text, but just remember that you are great dude. I had this problem like 1 year ago with a new laptop and somehow fixed it myself in a few days (how did I do that??). Now with this laptop, I forgot all the rubbish I learned a year ago and didn't find a fix for this problem, till I found this thread. The only clue I had was about standby states, but couldn't figure it out how to fix it. Thank you, god :).

Edwin · Oct 15, 2023

@Bemosu
Welcome...

Almighty1 · Oct 15, 2023

Bemosu said:
This right here:

MAN. I don't know how to show my gratitude for you in text, but just remember that you are great dude. I had this problem like 1 year ago with a new laptop and somehow fixed it myself in a few days (how did I do that??). Now with this laptop, I forgot all the rubbish I learned a year ago and didn't find a fix for this problem, till I found this thread. The only clue I had was about standby states, but couldn't figure it out how to fix it. Thank you, god :).

You are welcome! All that really does is it disabled Modern Standby and re-enables the S3 traditional standby mode which would also make the other power profiles available. The registry entry changed as it was something else before which no longer worked after a certain build of Windows 10 which includes Windows 11 which was:
"1) [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power] CsEnabled=0
2) deleted [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power\ModernSleep]"

Almighty1 · Oct 17, 2023

CountMike said:
Power plans you don't have to make one by one, it's enough to have one, modify it and save with different name, that's how I created some of them. Other plan like Ryzen power plan (high performance and power saver) came with installation of AMD chipset drivers. 1usmus PP came from a well known Ryzen (and other AMD) contributor. It contains parts that are hidden from normal user and so not easily accessible.
Nice tool for PPs Power Plan Assistant
and

PowerSettingsExplorer

MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.

www.mediafire.com

Didn't get a chance to try Power Plan Assistant until earlier today. Is there a version that currently works as after I downloaded the version in your link, it has a splash screen saying it's a outdated version and the program immediately exits.
