Random, Intermittent BSODs - Windows 11


Before bed > turn off WDV > create a new restore point

Please restart WDV with these customized tests and run overnight while sleeping:

Code:
    [ ] 0x00000001 Special pool.
    [ ] 0x00000002 Force IRQL checking.
    [ ] 0x00000008 Pool tracking.
    [ ] 0x00000010 I/O verification.
    [ ] 0x00000200 Force pending I/O requests.
    [ ] 0x00000020 Deadlock detection.
    [ ] 0x00000080 DMA checking.
    [ ] 0x00000100 Security checks.
    [ ] 0x00000800 Miscellaneous checks.
    [ ] 0x00020000 DDI compliance checking.
    [ ] 0x00000004 Randomized low resources simulation.
    [ ] 0x00000400 IRP logging.
    [ ] 0x00200000 NDIS/WIFI verification.
    [ ] 0x00800000 Kernel synchronization delay fuzzing.
    [ ] 0x01000000 VM switch verification.
    [ ] 0x02000000 Code integrity checks.


If there are no BSOD the next day this will complete the use of the tool.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
DONE See query settings below. INTERESTING RESULTS: After enabling WDV and rebooting, Wifi did not work. I rebooted and, during the reboot, received a BSOD "page fault in non-paged area" - V2 LOG attached. After another reboot, WiFi was working after but another BSOD occurred while I was writing this post. I rebooted to continue this post and while trying to complete this post, Windows rebooted without an apparent BSOD - I disabled WDV and rebooted to allow me to complete this post. Will re-enable and leave running for the night after this post.

link to V2 LOG for Page Fault BSOD: FRANKENPUTER-(2024-09-22_20-23-22).zip
link to V2 Log for 2nd BSOD: FRANKENPUTER-(2024-09-22_20-29-11).zip


Verifier Flags: 0x03b20fbf

Standard Flags:

[X] 0x00000001 Special pool.
[X] 0x00000002 Force IRQL checking.
[X] 0x00000008 Pool tracking.
[X] 0x00000010 I/O verification.
[X] 0x00000020 Deadlock detection.
[X] 0x00000080 DMA checking.
[X] 0x00000100 Security checks.
[X] 0x00000800 Miscellaneous checks.
[X] 0x00020000 DDI compliance checking.

Additional Flags:

[X] 0x00000004 Randomized low resources simulation.
[X] 0x00000200 Force pending I/O requests.
[X] 0x00000400 IRP logging.
[ ] 0x00002000 Invariant MDL checking for stack.
[ ] 0x00004000 Invariant MDL checking for driver.
[ ] 0x00008000 Power framework delay fuzzing.
[ ] 0x00010000 Port/miniport interface checking.
[ ] 0x00040000 Systematic low resources simulation.
[ ] 0x00080000 DDI compliance checking (additional).
[X] 0x00200000 NDIS/WIFI verification.
[X] 0x00800000 Kernel synchronization delay fuzzing.
[X] 0x01000000 VM switch verification.
[X] 0x02000000 Code integrity checks.

Internal Flags:

[X] 0x00100000 Extended Verifier flags (internal).

[X] Indicates flag is enabled.

Boot Mode:

Persistent

Randomized Low Resources Simulation Parameters:

Probability: 0
Pool Tags: (null)
Applications: (null)
Delay Minutes: 0

Rules:

All rules are using default settings

Extensions:

wdm: rules.default
ndis: rules.default

Verified Drivers:

amdpsp.sys
mtkwl6ex.sys
rt640x64.sys
nvlddmkm.sys
amdpcidev.sys
amdgpio2.sys
amdgpio3.sys
nvvad64v.sys
nvmoduletracker.sys
nvvhci.sys
nvhda64v.sys
rtkvhd64.sys
mtkbtfilterx.sys
dump_dumpstorport.sys
dump_stornvme.sys
dump_dumpfve.sys
amdryzenmasterdriver.sys
googledrivefs31626.sys
ndis.sys
netadaptercx.sys
mbbcx.sys
wificx.sys
wdiwifi.sys


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
1) Uninstall and reinstall Nvidia GPU drivers using DDU

Reinstall a version different from:
27.21.14.5671
30.0.14.7514



2) Uninstall or uninstall and reinstall:

mtkbtfilterx64 MTK BT Filter Driver c:\windows\system32\drivers\mtkbtfilterx.sys



3) Create a new restore point



4) Restart WDV with all customized tests except:

[ ] 0x00000004 Randomized low resources simulation.



5) Run WDV continuously for 48 hours



6) If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



For any BSOD post a new V2 share link into the newest post



7) If there are recurrent BSOD then find a GPU card for swap testing (Nvidia or AMD)




Code:
Name    NVIDIA GeForce GTX 780
PNP Device ID    PCI\VEN_10DE&DEV_1004&SUBSYS_36041458&REV_A1\4&2FB337C6&0&0019
Adapter Type    NVIDIA GeForce GTX 780, NVIDIA compatible
Adapter Description    NVIDIA GeForce GTX 780
Adapter RAM    (1,073,741,824) bytes
Installed Drivers    C:\Windows\System32\DriverStore\FileRepository\nv_dispi.inf_amd64_9777c5fc85d41633\nvldumdx.dll,C:\Windows\System32\DriverStore\FileRepository\nv_dispi.inf_amd64_9777c5fc85d41633\nvldumdx.dll,C:\Windows\System32\DriverStore\FileRepository\nv_dispi.inf_amd64_9777c5fc85d41633\nvldumdx.dll,C:\Windows\System32\DriverStore\FileRepository\nv_dispi.inf_amd64_9777c5fc85d41633\nvldumdx.dll
Driver Version    30.0.14.7514
INF File    oem8.inf (Section012 section)
Driver    C:\WINDOWS\SYSTEM32\DRIVERSTORE\FILEREPOSITORY\NV_DISPI.INF_AMD64_9777C5FC85D41633\NVLDDMKM.SYS (30.0.14.7514, 36.03 MB (37,776,536 bytes), 9/22/2024 1:11 PM)





nvlddmkm.sys Mon Jun 10 00:53:04 2024 (666694C0)
mtkbtfilterx.sys Wed Nov 29 15:19:16 2023 (6567AAD4)

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Done - driver version for GPU used below
Will be interesting to see results. I've back-leveled NVIDIA drivers for 2 different GPUs with no luck but we'll see what happens this time. Will update this post with query settings after enabling WDV & reboot.
Verifier Flags: 0x03bfefbb

Standard Flags:

[X] 0x00000001 Special pool.
[X] 0x00000002 Force IRQL checking.
[X] 0x00000008 Pool tracking.
[X] 0x00000010 I/O verification.
[X] 0x00000020 Deadlock detection.
[X] 0x00000080 DMA checking.
[X] 0x00000100 Security checks.
[X] 0x00000800 Miscellaneous checks.
[X] 0x00020000 DDI compliance checking.

Additional Flags:

[ ] 0x00000004 Randomized low resources simulation.
[X] 0x00000200 Force pending I/O requests.
[X] 0x00000400 IRP logging.
[X] 0x00002000 Invariant MDL checking for stack.
[X] 0x00004000 Invariant MDL checking for driver.
[X] 0x00008000 Power framework delay fuzzing.
[X] 0x00010000 Port/miniport interface checking.
[X] 0x00040000 Systematic low resources simulation.
[X] 0x00080000 DDI compliance checking (additional).
[X] 0x00200000 NDIS/WIFI verification.
[X] 0x00800000 Kernel synchronization delay fuzzing.
[X] 0x01000000 VM switch verification.
[X] 0x02000000 Code integrity checks.

Internal Flags:

[X] 0x00100000 Extended Verifier flags (internal).

[X] Indicates flag is enabled.

Boot Mode:

Persistent

Rules:

All rules are using default settings

Extensions:

wdm: rules.all
ndis: rules.default

Verified Drivers:

amdpsp.sys
mtkwl6ex.sys
rt640x64.sys
amdpcidev.sys
amdgpio2.sys
amdgpio3.sys
nvhda64v.sys
rtkvhd64.sys
dump_dumpstorport.sys
dump_stornvme.sys
dump_dumpfve.sys
amdryzenmasterdriver.sys
googledrivefs31626.sys
mtkbtfilterx.sys
nvlddmkm.sys
ndis.sys
netadaptercx.sys
mbbcx.sys
wificx.sys
wdiwifi.sys


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
UPDATE - no crashes overnight. Will let run at least another 24 hours with WDV enabled. I'm also following up on research that shows other recent instances of bugcheck 7e for nvlddmkm. Perhpas the minidump with the WDV info will help in getting a resolution from Nvidia.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
@zbook - No crashes while verifier was running - below are my notes and take aways. Your final input appreciated:
  1. every reboot while verifier was running results in page fault in non paged error with mtkbtfilterx.sys being highlighted in the mini dump. I'm disregarding for now until I see signs of failure other than reboot with WDV running - esp since I just refreshed that driver a few days ago but the crash persists.
  2. nvlddmkm.sys back level appears to fix one of the crashes. I've got that mini-dump and will submit to Nvidia. I'm a bit surprised at this as I swapped GPUs (both Nvidia) and back leveled the drivers previously - it could be other crashes muddied the water on this point.
  3. logi_lamparray.sys also appears to be an issue. Since I reinstalled a new version and the crash during WDV still occurred, I assume it's something other than driver corruption and I'll dig through the old V2 Logs and dig up the minidump to send to Logitech. UPDATE: Logitech claims - it is expected that logi_lamparray.sys will crash when running WDV.
  4. I plan to run without WDV for next 10-14 days to see if any of the random BSODs recur. Will report back.
Thanks for your diligence and patience.

Last edited:

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
During the troubleshooting whenever possible uninstall drivers > do not reinstall > monitor for stability / instability


Monitor for stability / instability using reliability monitor:

www.elevenforum.com

View Reliability History in Windows 11

This tutorial will show you how to view reliability history for your Windows 11 device. The Reliability Monitor provides a system stability overview and details about events that impact reliability. It calculates the Stability Index shown in the System Stability Chart. Reliability Monitor...
www.elevenforum.com www.elevenforum.com


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
@zbook -understand - that's what I always do.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
UPDATE - DPC WATCHDOG VIOLATION crash tonight. This matches the pattern I've been seeing of "random, intermittent" crashes. The computer was not actively being used at the time. WDV was NOT enabled at the time - still running the back level version of Nvidia driver.
Link to V2 Log: FRANKENPUTER-(2024-09-26_20-03-55).zip


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
Another crash today - KMODE EXCEPTION NOT HANDLED - link to V2 LOG below. This time, I was actively using Audacity to capture audio. I've been using Audacity pretty much nonstop for the past 2 days since disabling WDV and this was the first failure. Nothing different that I am aware of going on in this instance.
link to V2 LOG: FRANKENPUTER-(2024-09-27_12-14-01).zip


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
@zbook - apologies for so many posts back to back - but I want to provide any input that might show a pattern. Another crash occurred today - this time, IRL bug check. V2 Log link is below. Audacity was running as was true for the previous crash. Since Audacity doesn't have any drivers directly associated with it, I am assuming (if the crash was, in fact, caused by Audacity) that either the audio drivers or video drivers are the culprit. I'll continue using Audacity but will minimize the playback screen to see if that makes any difference. I have not seen this many crashes so close together before but the time between crashes has always seemed arbitrary throughout this experience with no apparent pattern or obvious cause.

Any input or thoughts on next steps appreciated.

V2 LOG: FRANKENPUTER-(2024-09-27_17-28-24).zip

FYI - The only notable events I've seen in the reliability monitor are the crashes. XML for latest Reliability Monitor report is here: Reliability Monitor 2024 09 27.XML


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
1) Run Sea Tools Long generic test (all drives) > post images or share links

https://www.seagate.com/content/dam...ds/seatools/_shared/downloads/100869623_B.pdf

https://www.seagate.com/content/dam...shared/downloads/SeaToolsWindowsInstaller.exe




2) Run HD Tune (all drives) (run an old version so that it produces results for the whole drive)

HD Tune website

HD Tune
www.hdtune.com
a) Health
b) Full error scan



3) Open administrative command prompt and copy and paste:

chkdsk /b /v

Run these chkdsk switches on all drives using the syntax: chkdsk /b /v C: or chkdsk /b /v D: or chkdsk /b /v E: etc.

Make sure that the windows drive runs overnight while sleeping.

C:\WINDOWS\system32>chkdsk /b /v
The type of the file system is NTFS.
Cannot lock current drive.

Chkdsk cannot run because the volume is in use by another
process. Would you like to schedule this volume to be
checked the next time the system restarts? (Y/N)

Type: Y

Reboot as needed.





Make sure that this runs only after the prior three steps for each drive.

4) Run HD Sentinel (all drives) > post images or share links (do not run until posting results for each steps 1, 2, and 3)

Hard Disk Sentinel - HDD health and temperature monitoring

Monitoring hard disk health and temperature. Test and repair HDD problems, predict disk failure.
www.hdsentinel.com www.hdsentinel.com
a) Overview
b) Temperature
c) SMART




5) Download and install one or more (test drive the software):

Download Speccy | Find your computer specs, free!

HWMONITOR | Softwares | CPUID

SpeedFan - Access temperature sensor in your computer




6) Make sure that there is no overclocking




7) Run: Prime95 for 3 hrs > record continuous testing time, Tmax, post images or share links

Prime95 - Stress Test Your CPU





8) Run: Furmark > continuous 30 min > record continuous testing time, Tmax, post images or share links

FurMark - GPU Stress Test

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Thanks for all the input. I've run CHKDSK and multiple CPU/GPU tools many times including Furmark with no negative findings and no noted temp issues. To be comprehensive in this effort, I'll follow all the prescribed steps. FYI - I've got a couple gigs Sunday that I am prepping for. So - this will all happen starting on Monday.
There is NO overclocking.
Thanks again


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
Software that stress test hardware often display pass when there is malfunctioning hardware.

Swap testing is typically needed to identify the malfunctioning component.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Understand and agree. I have swap tested every component but the CPU. Correction - I have not swap tested the hard drives containing user data. However, I have done my latest clean install onto a different SSD than the original boot drive.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
These steps / tests can be performed overnight while sleeping:

a) Sea Tools Long generic test
b) HD Tune Full error scan
c) Chkdsk /b /v


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

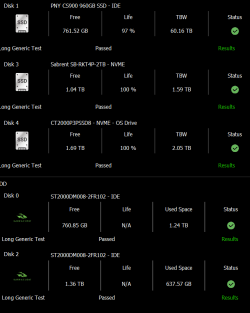

Long Generic tests running now


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
Code:
Description    Disk drive
Manufacturer    (Standard disk drives)
Model    ST2000DM008-2FR102
Bytes/Sector    512
Media Loaded    Yes
Media Type    Fixed hard disk
Partitions    1
SCSI Bus    3
SCSI Logical Unit    0
SCSI Port    0
SCSI Target ID    0
Sectors/Track    63
Size    1.82 TB (2,000,396,321,280 bytes)
Total Cylinders    243,201
Total Sectors    3,907,024,065
Total Tracks    62,016,255
Tracks/Cylinder    255
Partition    Disk #2, Partition #0
Partition Size    1.82 TB (2,000,381,018,112 bytes)
Partition Starting Offset    16,777,216 bytes

Description    Disk drive
Manufacturer    (Standard disk drives)
Model    PNY CS900 960GB SSD
Bytes/Sector    512
Media Loaded    Yes
Media Type    Fixed hard disk
Partitions    3
SCSI Bus    2
SCSI Logical Unit    0
SCSI Port    0
SCSI Target ID    0
Sectors/Track    63
Size    894.25 GB (960,194,511,360 bytes)
Total Cylinders    116,737
Total Sectors    1,875,379,905
Total Tracks    29,767,935
Tracks/Cylinder    255
Partition    Disk #1, Partition #0
Partition Size    100.00 MB (104,857,600 bytes)
Partition Starting Offset    1,048,576 bytes
Partition    Disk #1, Partition #1
Partition Size    893.39 GB (959,267,733,504 bytes)
Partition Starting Offset    122,683,392 bytes
Partition    Disk #1, Partition #2
Partition Size    768.00 MB (805,306,368 bytes)
Partition Starting Offset    959,390,416,896 bytes

Description    Disk drive
Manufacturer    (Standard disk drives)
Model    ST2000DM008-2FR102
Bytes/Sector    512
Media Loaded    Yes
Media Type    Fixed hard disk
Partitions    1
SCSI Bus    1
SCSI Logical Unit    0
SCSI Port    0
SCSI Target ID    0
Sectors/Track    63
Size    1.82 TB (2,000,396,321,280 bytes)
Total Cylinders    243,201
Total Sectors    3,907,024,065
Total Tracks    62,016,255
Tracks/Cylinder    255
Partition    Disk #0, Partition #0
Partition Size    1.82 TB (2,000,381,018,112 bytes)
Partition Starting Offset    16,777,216 bytes

Description    Disk drive
Manufacturer    (Standard disk drives)
Model    Sabrent SB-RKT4P-2TB
Bytes/Sector    512
Media Loaded    Yes
Media Type    Fixed hard disk
Partitions    1
SCSI Bus    0
SCSI Logical Unit    0
SCSI Port    1
SCSI Target ID    0
Sectors/Track    63
Size    1.82 TB (2,000,396,321,280 bytes)
Total Cylinders    243,201
Total Sectors    3,907,024,065
Total Tracks    62,016,255
Tracks/Cylinder    255
Partition    Disk #3, Partition #0
Partition Size    1.82 TB (2,000,381,018,112 bytes)
Partition Starting Offset    16,777,216 bytes

Description    Disk drive
Manufacturer    (Standard disk drives)
Model    CT2000P3PSSD8
Bytes/Sector    512
Media Loaded    Yes
Media Type    Fixed hard disk
Partitions    2
SCSI Bus    0
SCSI Logical Unit    0
SCSI Port    2
SCSI Target ID    0
Sectors/Track    63
Size    1.82 TB (2,000,396,321,280 bytes)
Total Cylinders    243,201
Total Sectors    3,907,024,065
Total Tracks    62,016,255
Tracks/Cylinder    255
Partition    Disk #4, Partition #0
Partition Size    937.50 GB (1,006,632,960,000 bytes)
Partition Starting Offset    16,777,216 bytes
Partition    Disk #4, Partition #1
Partition Size    925.50 GB (993,748,058,112 bytes)
Partition Starting Offset    1,006,649,737,216 bytes


Code:
------------------------
Disk & DVD/CD-ROM Drives
------------------------
      Drive: C:
 Free Space: 827.8 GB
Total Space: 960.0 GB
File System: NTFS
      Model: CT2000P3PSSD8

      Drive: D:
 Free Space: 725.6 GB
Total Space: 1907.7 GB
File System: NTFS
      Model: ST2000DM008-2FR102

      Drive: E:
 Free Space: 1299.7 GB
Total Space: 1907.7 GB
File System: NTFS
      Model: ST2000DM008-2FR102

      Drive: F:
 Free Space: 995.9 GB
Total Space: 1907.7 GB
File System: NTFS
      Model: Sabrent SB-RKT4P-2TB

      Drive: G:
 Free Space: 7.9 GB
Total Space: 15.4 GB
File System: FAT32
      Model: n/a

      Drive: H:
 Free Space: 14.8 GB
Total Space: 15.4 GB
File System: FAT32
      Model: n/a

      Drive: J:
 Free Space: 14.9 GB
Total Space: 15.4 GB
File System: FAT32
      Model: n/a

      Drive: Y:
 Free Space: 725.4 GB
Total Space: 914.8 GB
File System: NTFS
      Model: PNY CS900 960GB SSD

      Drive: Z:
 Free Space: 788.6 GB
Total Space: 947.7 GB
File System: NTFS
      Model: CT2000P3PSSD8

      Drive: I:
      Model: HL-DT-ST BD-RE  WH14NS40
     Driver: C:\WINDOWS\SYSTEM32\DRIVERS\CDROM.SYS, 10.00.22621.0001 (English), 5/7/2022 00:19:03, 204800 bytes


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Link to HDTUNE and CHKDSK results - one user data drive had 2 bad blocks - other than that, no errors noted.

HDTUNE & Chkdsk.txt

drive.google.com drive.google.com


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    MSI B550 Tomohawk Max Wifi
    Memory
    32GB 4X8GB Corsair Vengance
    Graphics Card(s)
    Nvidia GeForce GTX 1650
    Sound Card
    built-in to MoBo
    Hard Drives
    PNY CS900 960GB, Seagate Barrracuda 2TB, Sabrent ROcket 4 2TB
    PSU
    Corsair RM750x 750W 80+
    Case
    Corsair Obsidian 750D
    Internet Speed
    50MB+
    Browser
    Chrome
    Antivirus
    MS Defender
You must log in or register to reply here.

Similar threads

Intermittent BSODs with varying errors
Replies
0
Views
68
Unregistered
U
Random / intermittent BSOD - Hypervisor Error
Replies
2
Views
978
BLG56
B

Latest Support Threads

Latest Tutorials

Back
Top Bottom
