Repair install of Win 11 Pro fails using ISO file


There i no way of replying in a thread to someone?

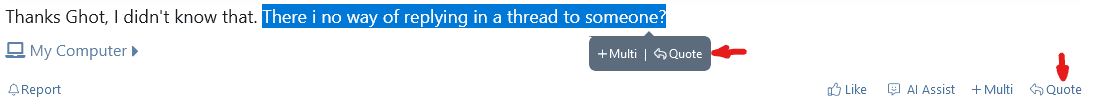

There are two easy ways to quote someone and reply to them, highlight just that part of their text you want to reply to, or click Quote at the bottom right of their post to quote their whole post. Quoting someone will show a notification in their alert 'bell'.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October 2021 it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update, and 24H2 on 3rd October 2024 through Windows Update by setting the Target Release Version for 24H2.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 8GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Dev, Beta, and RP 24H2 as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 8GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus Insider Beta, Dev, and Canary builds (and a few others) as a native boot .vhdx.

    My SYSTEM SIX is a Dell Latitude 5550, Core Ultra 7 165H, 64GB RAM, 1TB NVMe SSD, supported device, Windows 11 Pro 24H2, Hyper-V host machine.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package. In-place upgrade to 24H2 using hybrid 23H2/24H2 install media. Also running Insider Beta, Dev, and Canary builds as a native boot .vhdx.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 8GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Dev, Beta, and RP 24H2 as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 8GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus Insider Beta, Dev, and Canary builds (and a few others) as a native boot .vhdx.

    My SYSTEM SIX is a Dell Latitude 5550, Core Ultra 7 165H, 64GB RAM, 1TB NVMe SSD, supported device, Windows 11 Pro 24H2, Hyper-V host machine.
Thanks Ghot, I didn't know that. There i no way of replying in a thread to someone?


Well people "can" follow a thread, and that will "notify" them too.
And they can, in their settings > preferences set things so they get an email, when they get notified or someone responds to their thread.

But as I mentioned... the best way to get someone's attention is to quote them or add the @ symbol in front of their account name.


For example.... this is under my "bell" (top right), at the moment...




My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦26100.3775 ♦♦♦♦♦♦♦24H2 ♦♦♦non-Insider
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 5002)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 15 years?
Please perform the following steps: (in sequence)


1) When available please post info from post #13 and #16.
(task manager, antivirus, firewall, drive encryption)



2) Run:



Post a share link into this thread using one drive, drop box, or google drive



3) Run these troubleshooters > if available click view detailed information > post share links into this thread using one drive, drop box, or google drive

Open administrative command prompt and type or copy and paste:

msdt.exe -id WindowsUpdateDiagnostic
msdt.exe -id DeviceDiagnostic



4) Run Sea Tools for Windows Long Generic test (all drives):

https://www.seagate.com/content/dam...shared/downloads/SeaToolsWindowsInstaller.exe

https://www.seagate.com/content/dam...ds/seatools/_shared/downloads/100869623_B.pdf

Post images or share links into this thread using one drive, drop box, or google drive.



5) Run HD Tune: (free or trial version) (all drives):

HD Tune website

Post images or share links for results on these tabs:

a) Health
b) Benchmark
c) Full error scan



6) These tests can run overnight while sleeping:

a) Sea Tools for Windows Long Generic test
b) HD Tune Full error scan



7) record / report boot time


8) Perform a clean boot > report boot time




9) Open administrative command prompt and type or copy and paste:

net user test10 /add


10) Reboot and sign on with the new user named test10 > reboot > report boot time





Code:
Event[40463]
  Log Name: System
  Source: Microsoft-Windows-WHEA-Logger
  Date: 2023-10-03T09:05:16.8860000Z
  Event ID: 3
  Task: N/A
  Level: Information
  Opcode: Info  a
  Keyword: WHEA Error Event Logs,
  User: S-1-5-19
  User Name: NT AUTHORITY\LOCAL SERVICE
  Computer: NewMesh
  Description:
A hardware event has occurred. An informational record describing the condition is contained in the data section of this event.

Code:
Event[40227]
  Log Name: System
  Source: Microsoft-Windows-WHEA-Logger
  Date: 2023-10-03T08:57:29.7780000Z
  Event ID: 3
  Task: N/A
  Level: Information
  Opcode: Info  a
  Keyword: WHEA Error Event Logs,
  User: S-1-5-19
  User Name: NT AUTHORITY\LOCAL SERVICE
  Computer: NewMesh
  Description:
A hardware event has occurred. An informational record describing the condition is contained in the data section of this event.

Code:
Event[39996]
  Log Name: System
  Source: Microsoft-Windows-WHEA-Logger
  Date: 2023-10-03T08:20:00.2830000Z
  Event ID: 3
  Task: N/A
  Level: Information
  Opcode: Info  a
  Keyword: WHEA Error Event Logs,
  User: S-1-5-19
  User Name: NT AUTHORITY\LOCAL SERVICE
  Computer: NewMesh
  Description:
A hardware event has occurred. An informational record describing the condition is contained in the data section of this event.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Please perform the following steps: (in sequence)


1) When available please post info from post #13 and #16.
(task manager, antivirus, firewall, drive encryption)
@zbook. Thanks for the reply - I’ll work on it.

Taskmanager is in the reply from 2.37 pm yesterday (probably #17).
I had said that Bitdefender had been installed and uninstalled with the BD Uninstall Tool several times recently and attempts to use the ISO have been mainly with it uninstalled. In the absence of Bd, the Firewall is MS and there is no drive encryption- I’d put this in a post, but it may have been one that self-deleted while I was checking back up the thread or going from page 2 to 1 and back.

Was the V2 log useful?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Mesh
    CPU
    12th Gen Intel Core i3-12100
    Motherboard
    Asus Prime H610M-D D4
    Memory
    16 Gb
    Graphics Card(s)
    Integrated Graphics 730
That was a long BIOS time: 87.4 sec

The reply for many of the V2 findings were the steps and reports in the most recent post.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
After completing the prior post steps plan to reset the BIOS:


How to Clear Your Computers CMOS to Reset BIOS Settings:

3 Ways to Reset Your BIOS - wikiHow:

3 Easy Ways to Clear CMOS (Reset BIOS)


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
That was a long BIOS time: 87.4 sec

The reply for many of the V2 findings were the steps and reports in the most recent post.
The reason I'm trying to do the repair of Windows IS precisely because the boot times are long - I've been working on this for about 7 days solid now. Normal boot times range widely and seemingly randomly from 40-240 secs, as reported by the programme BootPacer, recommended in this month's PCworld.
I'd already tried clean boots after uninstalling Bitdefender - the normal clean boot method doesn't work with BD, as it refuses to be turned off. Clean Boots made no difference, though what BootPacer calls Clean Boot (no idea what the difference is) may speed it up (though this is hard to tell when the boot times fluctuate so much).
I'm up to SeaTools long generic in your list - nothing found so far (I'd already run SFC and DISM over and over again, but did it again) apart from Windows update supposedly being not set to download drivers.
I'll be back once I've finished the list


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Mesh
    CPU
    12th Gen Intel Core i3-12100
    Motherboard
    Asus Prime H610M-D D4
    Memory
    16 Gb
    Graphics Card(s)
    Integrated Graphics 730
After completing the prior post steps plan to reset the BIOS:
Still on error scan of HD. I'm going to have many files - do I do a separate Googledrive link for each one? - I'm not used to using such things

The 3 links you gave for this part (BIOS) - do i do them all?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Mesh
    CPU
    12th Gen Intel Core i3-12100
    Motherboard
    Asus Prime H610M-D D4
    Memory
    16 Gb
    Graphics Card(s)
    Integrated Graphics 730
The 3 links you gave for this part (BIOS) - do i do them all?


No.

Do this...

1. Shut off the computer, and on the back of the computer, shut off the power supply switch.
2. Press and hold the power button on the case, for about 5-10 seconds (to discharge capacitors).
3. Remove the CMOS battery (BLUE box), noting which side is... UP. There's a tiny clip that will eject the battery.
4. Wait about 5 minutes, then replace the CMOS battery.
5. Turn the power supply switch back ON.
6. Turn the computer on.
7. Enter the BIOS by gently spamming the DEL key during boot, and make sure the BIOS date/time is correct.
8. In the BIOS go to the Boot tab and under Boot Configuration > Setup Mode... set it to Advanced Mode.
......If you can't see the Boot tab, hit the F7 key to temporarily enable Advanced Mode.
The F10 is the Save & Exit key.


Image1.jpg Image1.jpg

Use little flat blade screw driver to work the clip...


After you've reset the BIOS, some things may not be the same. The RAM may run at a slower speed.
Any overclocking settings will be gone... etc. Those can be dealt with after you've solved your original problem.


Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦26100.3775 ♦♦♦♦♦♦♦24H2 ♦♦♦non-Insider
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 5002)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 15 years?
@Ghot In my efforts to sort this slow boot, as a last resort, I’d updated the BIOS, but that had no effect. Presumably resetting it will wipe out the update?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Mesh
    CPU
    12th Gen Intel Core i3-12100
    Motherboard
    Asus Prime H610M-D D4
    Memory
    16 Gb
    Graphics Card(s)
    Integrated Graphics 730
@Ghot In my efforts to sort this slow boot, as a last resort, I’d updated the BIOS, but that had no effect. Presumably resetting it will wipe out the update?


No.
BIOS updates are... permanent. (Well... sometimes, on some boards, you can undo a BIOS update)
But it's not easy, and it's best to believe it's not possible.. :-)

All that resetting the BIOS does... is reset the "settings" in the BIOS.


BIOS 1st time.png

:D


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦26100.3775 ♦♦♦♦♦♦♦24H2 ♦♦♦non-Insider
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 5002)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 15 years?
just use this and repair-install from mounted ISO it removes all the checks

Win 11 Download Tool

if you already have the ISO you can just drop it onto the file it will make the edits without downloading a new one

then just double click the ISO again to mount it, run AllowUnsupportedUpgrades right next to setup, then run Setup 👍


My Computer

System One

  • OS
    PE
just use this and repair-install from mounted ISO it removes all the checks

Win 11 Download Tool

if you already have the ISO you can just drop it onto the file it will make the edits without downloading a new one

then just double click the ISO again to mount it, run AllowUnsupportedUpgrades right next to setup, then run Setup 👍
Hi BobOmb, Tried it. Double clicked on AllowUnsupported Updates, then on Setuo and got exactly the same message - can’t install from flash drive. I assume I did it right?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Mesh
    CPU
    12th Gen Intel Core i3-12100
    Motherboard
    Asus Prime H610M-D D4
    Memory
    16 Gb
    Graphics Card(s)
    Integrated Graphics 730
Please perform the following steps: (in sequence)


1) When available please post info from post #13 and #16.
(task manager, antivirus, firewall, drive encryption)



2) Run:



Post a share link into this thread using one drive, drop box, or google drive



3) Run these troubleshooters > if available click view detailed information > post share links into this thread using one drive, drop box, or google drive

Open administrative command prompt and type or copy and paste:

msdt.exe -id WindowsUpdateDiagnostic
msdt.exe -id DeviceDiagnostic



4) Run Sea Tools for Windows Long Generic test (all drives):

https://www.seagate.com/content/dam...shared/downloads/SeaToolsWindowsInstaller.exe

https://www.seagate.com/content/dam...ds/seatools/_shared/downloads/100869623_B.pdf

Post images or share links into this thread using one drive, drop box, or google drive.



5) Run HD Tune: (free or trial version) (all drives):

HD Tune website

Post images or share links for results on these tabs:

a) Health
b) Benchmark
c) Full error scan



6) These tests can run overnight while sleeping:

a) Sea Tools for Windows Long Generic test
b) HD Tune Full error scan



Tests up to and including 6


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Mesh
    CPU
    12th Gen Intel Core i3-12100
    Motherboard
    Asus Prime H610M-D D4
    Memory
    16 Gb
    Graphics Card(s)
    Integrated Graphics 730
yes, that is all you would need to do.

can you go into diskpart, and take a screenshot of the detail disk command for the disk that you are using?

You have to type ”select disk _” (_being the disc number) first, then just type detail disk, and post a screenshot of that


My Computer

System One

  • OS
    PE
When available post Sea Tools for Windows long generic test result share links.
Also a Kingston drive full error image?


After resetting the BIOS please post new:

a) task manager > startup tab > full box
b) V2 log collector
c) approximate shutdown > start time
d) approximate restart > start time


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
When available post Sea Tools for Windows long generic test result share links.
Also a Kingston drive full error image?
It is strange it is telling him a mounted ISO is a USB device, i wonder if the disk is reporting the interface incorrectly


My Computer

System One

  • OS
    PE
Open device manager > click view > click show hidden devices > manually expand all rows > look for rows displaying a yellow triangle with black exclamation mark or unknown device > post images or share links into this thread


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
For the last day or two, boot times have been less than 40 sec - I’m happy with that.
Boot times normal account 33.6 sec, clean boot 23.7 (all are mean of 3)
Boot times Admin account 28.7 sec, clean boot 28.8
Boot times new account tb10 32.7 sec, clean boot 30.9
Boot times normal account after BIOS set to default 35.0 sec, clean boot 26.6.
Thanks for the help.
Would be nice to know why the repair ISO freaks out


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Mesh
    CPU
    12th Gen Intel Core i3-12100
    Motherboard
    Asus Prime H610M-D D4
    Memory
    16 Gb
    Graphics Card(s)
    Integrated Graphics 730
Open device manager > click view > click show hidden devices > manually expand all rows > look for rows displaying a yellow triangle with black exclamation mark or unknown device > post images or share links into this thread

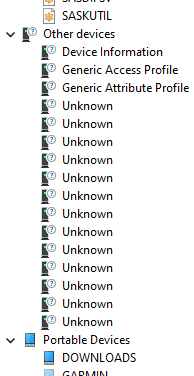

No yellow triangle, Only unknown devices are these


Attachments

  • mmc_ksmF3TAqyg.png
    3 KB · Views: 0

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Mesh
    CPU
    12th Gen Intel Core i3-12100
    Motherboard
    Asus Prime H610M-D D4
    Memory
    16 Gb
    Graphics Card(s)
    Integrated Graphics 730

Latest Support Threads

Back
Top Bottom
