I Cannot Boot Into Windows 11 On An ASUS Laptop PC's NVMe SSD After Removing And Reinstalling The Drive. Why?


montecarlo1987 said:
Remember, this particular PC with all the newer models out now from ASUS I am assuming have no "legacy mode" any longer. ASUS wanted to ditch legacy mode sooner than later. I assume other PC manufacturers are in the midst of have already too removed legacy mode with newer PCs. Windows 11 is the newer UEFI/GPT only anyways. Once Windows 10 is shelved in the next year or two, legacy mode will be totally over! If I had legacy mode, I would have a lot more options to likely fix this issue!
Click to expand...
Yeahbut as one of my HS teachers said long ago. Is this Linux capable? I bet it has the legacy option but we will check that in a bunch of minutes...!


My Computers

System One System Two

  • OS
    win 11Pro, 24H2 current-1mo, WuMgr, StartAllBack, Terabyte Image for Win, Revo Uninstaller Pro Port
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    I9-13900k
    Motherboard
    ASUS ROG STRIX Z790-E Gam wifi-6E, latest AMI BIOS 2801
    Memory
    G.Skill Ripjaws S5 32GB Kit DDR5 6000. 6000.
    Graphics Card(s)
    GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)
    Sound Card
    "Realtek USB Audio", ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Bose Computer Music Monitor/ Desktop Computer Speakers
    Monitor(s) Displays
    Dell S3221QS
    Screen Resolution
    4K but I usually display at 1K
    Hard Drives
    Sam 980 Pro 1T M.2, 990Pro, WD 570, others(all NVMe)
    PSU
    Corsair RM750e fully modular
    Case
    CoolerMaster TD500 mesh white case
    Cooling
    CPU:Thermalright aio A-E-360 V4 TOP(Thermalright anti-bend plate), CASE:3 front fans IN, 1 back fan OUT.
    Keyboard
    Logitech K270
    Mouse
    Logitech M510
    Internet Speed
    220Mbs Starry I226-V
    Browser
    Firefox current, Tab center Reborn, etc etc etc.
    Antivirus
    BitDefender AV Free
    Other Info
    Time Spy Extreme 6239, VRMark Orange Room 16430, etc.
    Been doing computers since '62(IBM 7070/4(just missed their 650!!!). Managed a bunch of 360's. My first PC I think was one of the RS puters (I tried them all), a commodore, an IBM PC w DOS 3.11, and others mainly DIY (COMPUTER SHOPPER!!!) w 95, 98, xp, vista, me, 7!!!, 8, 10!!!, and now, finally, 11.
  • Operating System
    win 10, Mint
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P15s
    CPU
    i7-10510U 1.8-4.9GHz
    Motherboard
    Intel SoC
    Memory
    16GB DDR4
    Graphics card(s)
    Nvidia Quadro P520 2GB DDR5 supports 4K external via HDMI or USB-C
    Sound Card
    Realtek ALC3287 HD
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1K
    Hard Drives
    NVMe various
krism said:
Oh first, just for fun, on the delete, just click on that box that says select... but then remember what it says and hit the ESC button top left on kbd - ie, don't change anything.
Click to expand...

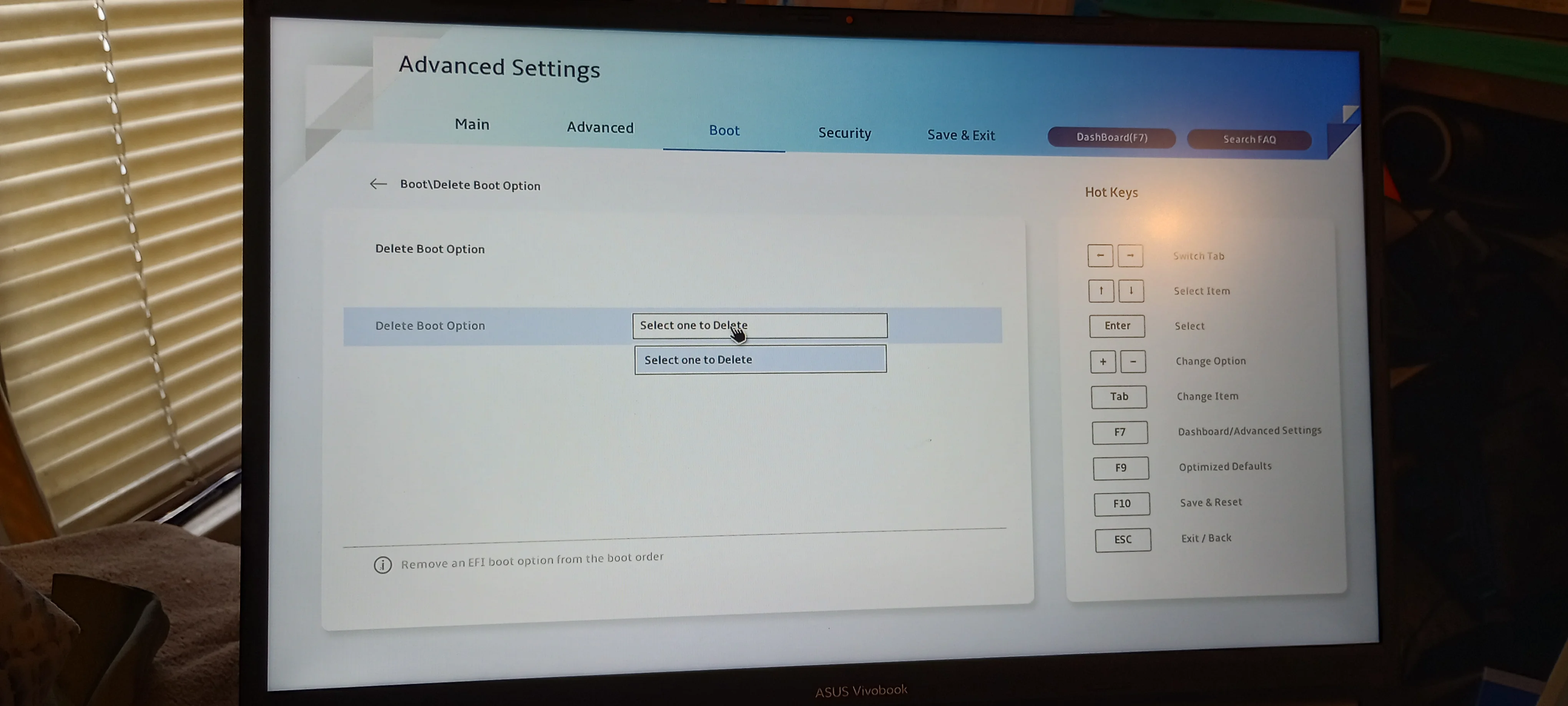

Okay, this is for "Delete...". See pic. Not much really to do here?


Attachments

  • IMG_20250205_115712954_HDR.webp
    227.8 KB · Views: 1

My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo
Oh, hey, at some point when you're booting press F8 and keep tapping it after you reboot and see if you get anything. I don't know what F that uses but my asus mobo uses F8.


My Computers

System One System Two

  • OS
    win 11Pro, 24H2 current-1mo, WuMgr, StartAllBack, Terabyte Image for Win, Revo Uninstaller Pro Port
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    I9-13900k
    Motherboard
    ASUS ROG STRIX Z790-E Gam wifi-6E, latest AMI BIOS 2801
    Memory
    G.Skill Ripjaws S5 32GB Kit DDR5 6000. 6000.
    Graphics Card(s)
    GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)
    Sound Card
    "Realtek USB Audio", ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Bose Computer Music Monitor/ Desktop Computer Speakers
    Monitor(s) Displays
    Dell S3221QS
    Screen Resolution
    4K but I usually display at 1K
    Hard Drives
    Sam 980 Pro 1T M.2, 990Pro, WD 570, others(all NVMe)
    PSU
    Corsair RM750e fully modular
    Case
    CoolerMaster TD500 mesh white case
    Cooling
    CPU:Thermalright aio A-E-360 V4 TOP(Thermalright anti-bend plate), CASE:3 front fans IN, 1 back fan OUT.
    Keyboard
    Logitech K270
    Mouse
    Logitech M510
    Internet Speed
    220Mbs Starry I226-V
    Browser
    Firefox current, Tab center Reborn, etc etc etc.
    Antivirus
    BitDefender AV Free
    Other Info
    Time Spy Extreme 6239, VRMark Orange Room 16430, etc.
    Been doing computers since '62(IBM 7070/4(just missed their 650!!!). Managed a bunch of 360's. My first PC I think was one of the RS puters (I tried them all), a commodore, an IBM PC w DOS 3.11, and others mainly DIY (COMPUTER SHOPPER!!!) w 95, 98, xp, vista, me, 7!!!, 8, 10!!!, and now, finally, 11.
  • Operating System
    win 10, Mint
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P15s
    CPU
    i7-10510U 1.8-4.9GHz
    Motherboard
    Intel SoC
    Memory
    16GB DDR4
    Graphics card(s)
    Nvidia Quadro P520 2GB DDR5 supports 4K external via HDMI or USB-C
    Sound Card
    Realtek ALC3287 HD
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1K
    Hard Drives
    NVMe various
montecarlo1987 said:
Okay, this is for "Delete...". See pic. Not much really to do here?
Click to expand...
Okay , do you have a bootable USB stick that you could plug in, boot, if you get that same BIOS screen, F7, BOOT, add... and see if anything there inside box, if so, add it and boot to it just to test.


My Computers

System One System Two

  • OS
    win 11Pro, 24H2 current-1mo, WuMgr, StartAllBack, Terabyte Image for Win, Revo Uninstaller Pro Port
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    I9-13900k
    Motherboard
    ASUS ROG STRIX Z790-E Gam wifi-6E, latest AMI BIOS 2801
    Memory
    G.Skill Ripjaws S5 32GB Kit DDR5 6000. 6000.
    Graphics Card(s)
    GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)
    Sound Card
    "Realtek USB Audio", ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Bose Computer Music Monitor/ Desktop Computer Speakers
    Monitor(s) Displays
    Dell S3221QS
    Screen Resolution
    4K but I usually display at 1K
    Hard Drives
    Sam 980 Pro 1T M.2, 990Pro, WD 570, others(all NVMe)
    PSU
    Corsair RM750e fully modular
    Case
    CoolerMaster TD500 mesh white case
    Cooling
    CPU:Thermalright aio A-E-360 V4 TOP(Thermalright anti-bend plate), CASE:3 front fans IN, 1 back fan OUT.
    Keyboard
    Logitech K270
    Mouse
    Logitech M510
    Internet Speed
    220Mbs Starry I226-V
    Browser
    Firefox current, Tab center Reborn, etc etc etc.
    Antivirus
    BitDefender AV Free
    Other Info
    Time Spy Extreme 6239, VRMark Orange Room 16430, etc.
    Been doing computers since '62(IBM 7070/4(just missed their 650!!!). Managed a bunch of 360's. My first PC I think was one of the RS puters (I tried them all), a commodore, an IBM PC w DOS 3.11, and others mainly DIY (COMPUTER SHOPPER!!!) w 95, 98, xp, vista, me, 7!!!, 8, 10!!!, and now, finally, 11.
  • Operating System
    win 10, Mint
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P15s
    CPU
    i7-10510U 1.8-4.9GHz
    Motherboard
    Intel SoC
    Memory
    16GB DDR4
    Graphics card(s)
    Nvidia Quadro P520 2GB DDR5 supports 4K external via HDMI or USB-C
    Sound Card
    Realtek ALC3287 HD
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1K
    Hard Drives
    NVMe various
krism said:
bummer, and assuming there is nothing in the Delete Boot option it would seem that you do not have a bootable NVMe. Why? I would have no idea.

Let's try that first screen and "System diagnostics"
Click to expand...

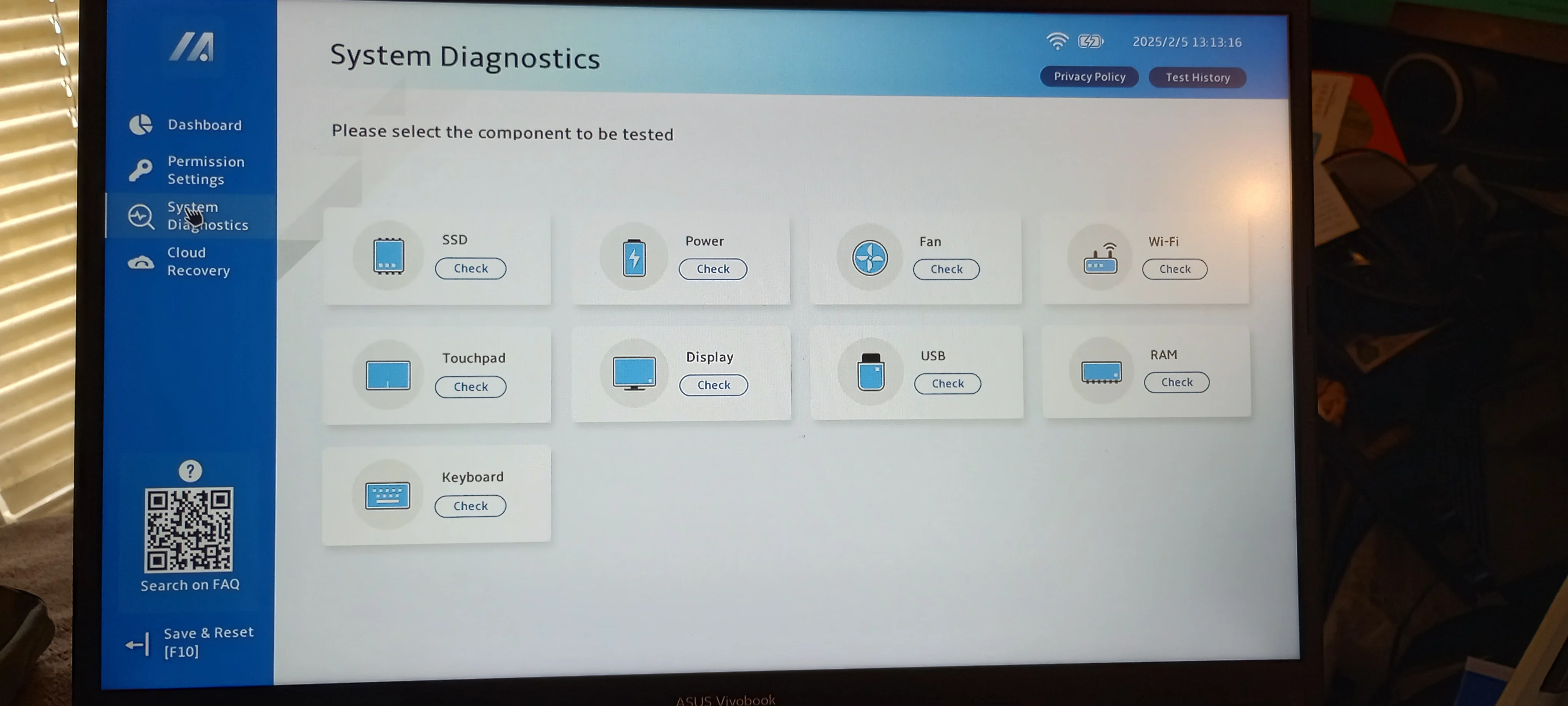

Okay, the System Diagnostics screen in UEFI BIOS pic.


Attachments

  • IMG_20250205_120641770_HDR.webp
    248.5 KB · Views: 1

My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo
If you're still there, click check the SSD


My Computers

System One System Two

  • OS
    win 11Pro, 24H2 current-1mo, WuMgr, StartAllBack, Terabyte Image for Win, Revo Uninstaller Pro Port
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    I9-13900k
    Motherboard
    ASUS ROG STRIX Z790-E Gam wifi-6E, latest AMI BIOS 2801
    Memory
    G.Skill Ripjaws S5 32GB Kit DDR5 6000. 6000.
    Graphics Card(s)
    GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)
    Sound Card
    "Realtek USB Audio", ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Bose Computer Music Monitor/ Desktop Computer Speakers
    Monitor(s) Displays
    Dell S3221QS
    Screen Resolution
    4K but I usually display at 1K
    Hard Drives
    Sam 980 Pro 1T M.2, 990Pro, WD 570, others(all NVMe)
    PSU
    Corsair RM750e fully modular
    Case
    CoolerMaster TD500 mesh white case
    Cooling
    CPU:Thermalright aio A-E-360 V4 TOP(Thermalright anti-bend plate), CASE:3 front fans IN, 1 back fan OUT.
    Keyboard
    Logitech K270
    Mouse
    Logitech M510
    Internet Speed
    220Mbs Starry I226-V
    Browser
    Firefox current, Tab center Reborn, etc etc etc.
    Antivirus
    BitDefender AV Free
    Other Info
    Time Spy Extreme 6239, VRMark Orange Room 16430, etc.
    Been doing computers since '62(IBM 7070/4(just missed their 650!!!). Managed a bunch of 360's. My first PC I think was one of the RS puters (I tried them all), a commodore, an IBM PC w DOS 3.11, and others mainly DIY (COMPUTER SHOPPER!!!) w 95, 98, xp, vista, me, 7!!!, 8, 10!!!, and now, finally, 11.
  • Operating System
    win 10, Mint
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P15s
    CPU
    i7-10510U 1.8-4.9GHz
    Motherboard
    Intel SoC
    Memory
    16GB DDR4
    Graphics card(s)
    Nvidia Quadro P520 2GB DDR5 supports 4K external via HDMI or USB-C
    Sound Card
    Realtek ALC3287 HD
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1K
    Hard Drives
    NVMe various
krism said:
If you're still there, click check the SSD
Click to expand...

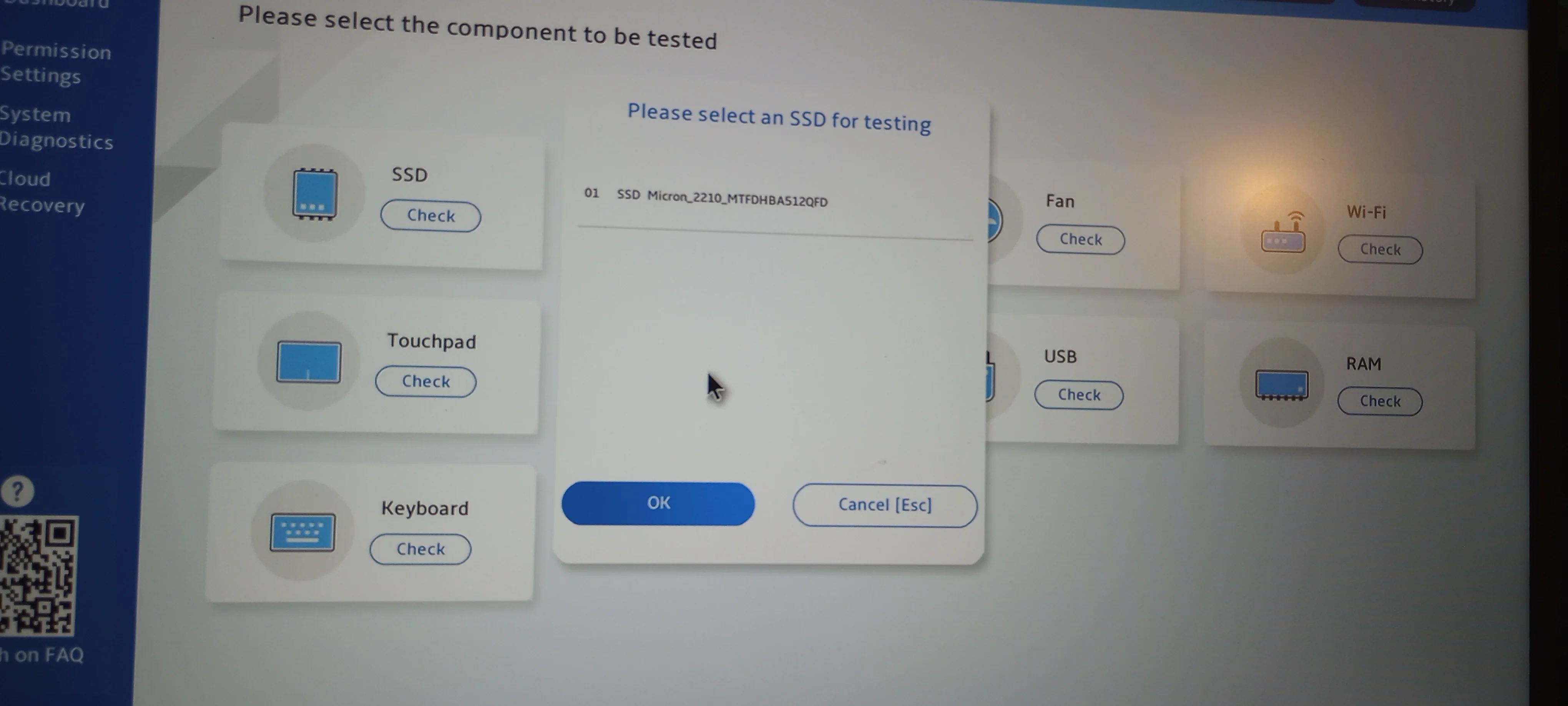

Sure. Here is a few pics from that test I performed in UEFI BIOS. Pic.1


Attachments

  • IMG_20250205_121246750.webp
    139.7 KB · Views: 1

My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo

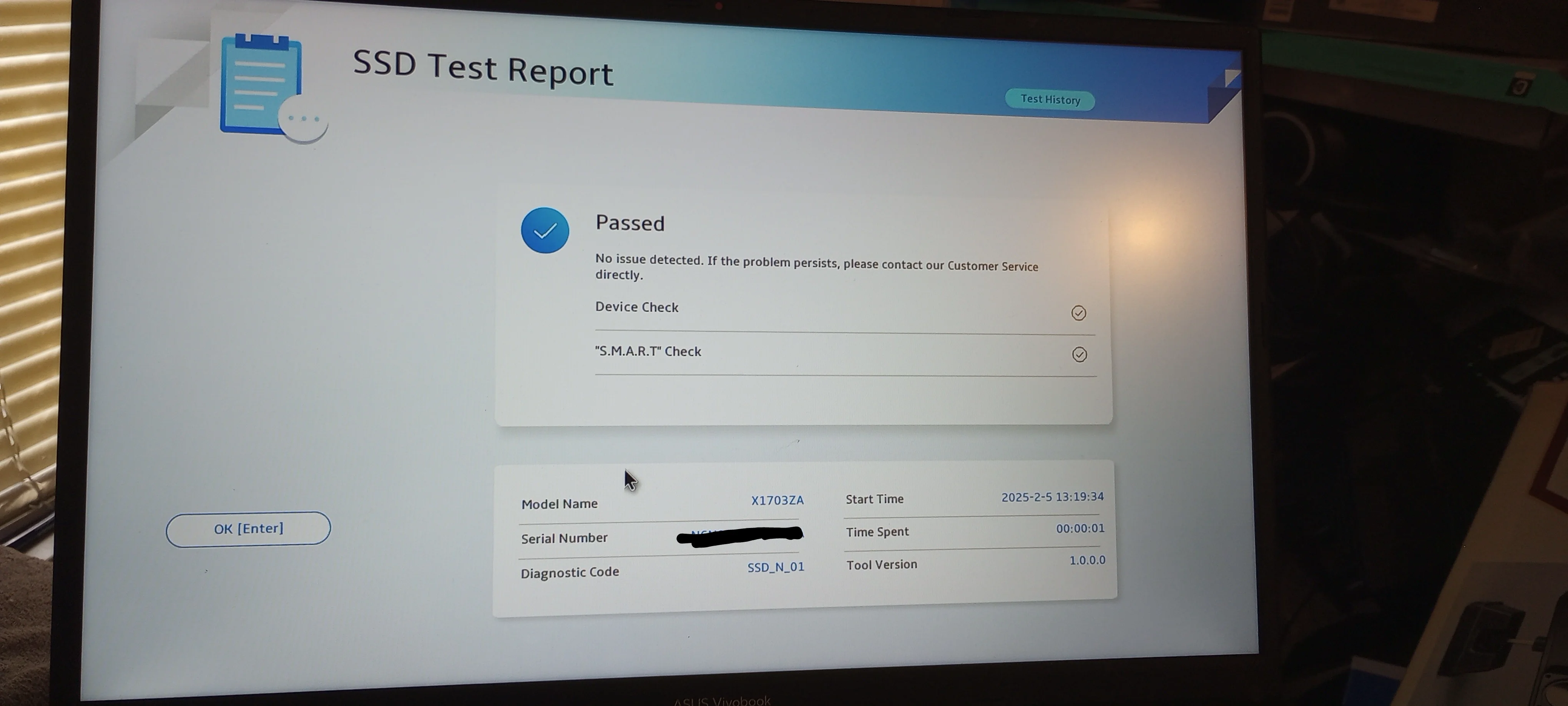

Pic.2 It passed! The PC knows the NVMe drive is there. Just Windows will not boot!


Attachments

  • IMG_20250205_121308169~2.webp
    225 KB · Views: 1

My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo

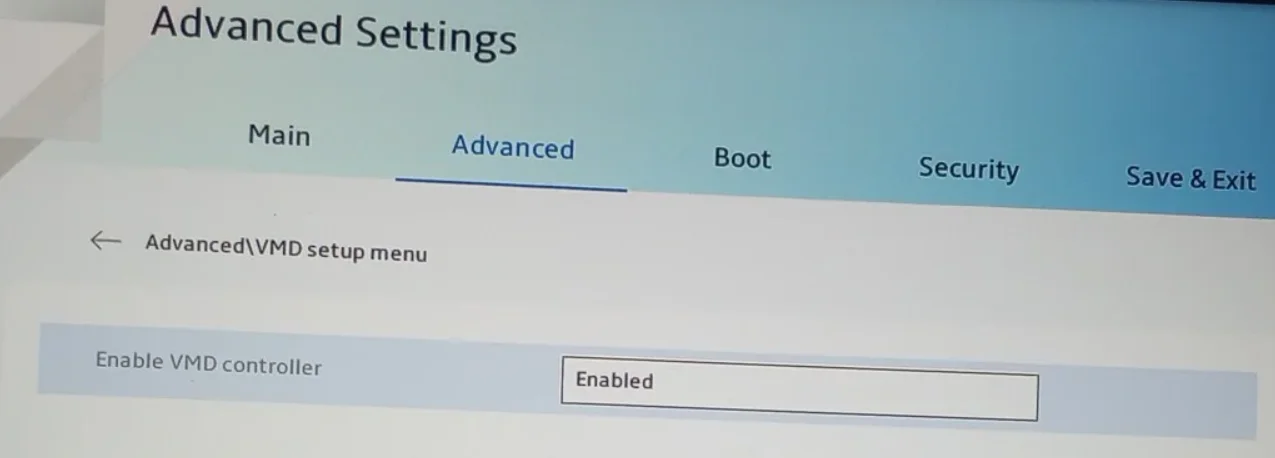

Disable the VMD controller. VMD is the new term for "RAID". Although it doesn't say so, disabling VMD will put the
computer in AHCI mode. Your drive should be recognized once it's disabled.

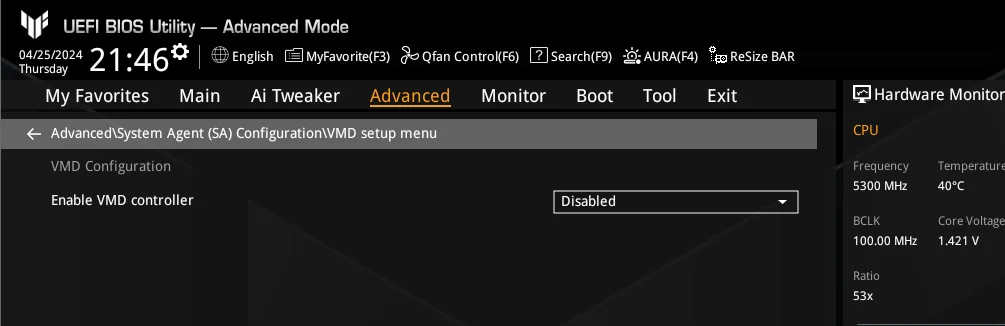

Here's what mine looks like.



My Computers

System One System Two

  • OS
    Win 11 Pro 24H2 26100.3037
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i7-14700F
    Motherboard
    ASUS TUF GAMING Z690-PLUS WIFI
    Memory
    G.SKILL Ripjaws S5 Series 64GB (2 x 32GB) DDR5
    Graphics Card(s)
    MSI GeForce RTX 3060 Ventus 2X 12GB OC
    Sound Card
    Sound Blaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming 27" 2K HDR Gaming
    Screen Resolution
    2560 x 1440
    Hard Drives
    Samsung 990 Pro 1TB NVMe (Win 11 24H2)
    SK hynix P41 500GB NVMe (Win 11 23H2)
    SK hynix P41 2TB NVMe (x3)
    Crucial P3 Plus 4TB
    PSU
    Corsair RM850x Shift
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Noctua NH-U12A chromax.black + 7 Phantek T-30's
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    350Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    Windows 11 23H2 22631.4830
    On System One (Dual Boot)
  • Operating System
    Win 11 Pro 24H2 26100.3037
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel Core i7-11700F
    Motherboard
    Asus TUF Gaming Z590 Plus WiFi
    Memory
    64 GB DDR4
    Graphics card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    SoundBlaster X-Fi Titanium
    Monitor(s) Displays
    Samsung F27T350
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 980 Pro 1TB
    Samsung 970 EVO Plus 2TB
    Samsung 870 EVO 500GB SSD
    PSU
    Corsair HX750
    Case
    Cougar MX330-G Window
    Cooling
    Hyper 212 EVO
    Internet Speed
    350Mbps
    Browser
    Firefox
    Antivirus
    Windows Security
Excellent, but not bootable.
1) do you have a win11 (24H2) iso on a bootable stick? I would guess no.
2) so lets do something else first - please go to ADVANCED / USB configuration


My Computers

System One System Two

  • OS
    win 11Pro, 24H2 current-1mo, WuMgr, StartAllBack, Terabyte Image for Win, Revo Uninstaller Pro Port
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    I9-13900k
    Motherboard
    ASUS ROG STRIX Z790-E Gam wifi-6E, latest AMI BIOS 2801
    Memory
    G.Skill Ripjaws S5 32GB Kit DDR5 6000. 6000.
    Graphics Card(s)
    GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)
    Sound Card
    "Realtek USB Audio", ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Bose Computer Music Monitor/ Desktop Computer Speakers
    Monitor(s) Displays
    Dell S3221QS
    Screen Resolution
    4K but I usually display at 1K
    Hard Drives
    Sam 980 Pro 1T M.2, 990Pro, WD 570, others(all NVMe)
    PSU
    Corsair RM750e fully modular
    Case
    CoolerMaster TD500 mesh white case
    Cooling
    CPU:Thermalright aio A-E-360 V4 TOP(Thermalright anti-bend plate), CASE:3 front fans IN, 1 back fan OUT.
    Keyboard
    Logitech K270
    Mouse
    Logitech M510
    Internet Speed
    220Mbs Starry I226-V
    Browser
    Firefox current, Tab center Reborn, etc etc etc.
    Antivirus
    BitDefender AV Free
    Other Info
    Time Spy Extreme 6239, VRMark Orange Room 16430, etc.
    Been doing computers since '62(IBM 7070/4(just missed their 650!!!). Managed a bunch of 360's. My first PC I think was one of the RS puters (I tried them all), a commodore, an IBM PC w DOS 3.11, and others mainly DIY (COMPUTER SHOPPER!!!) w 95, 98, xp, vista, me, 7!!!, 8, 10!!!, and now, finally, 11.
  • Operating System
    win 10, Mint
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P15s
    CPU
    i7-10510U 1.8-4.9GHz
    Motherboard
    Intel SoC
    Memory
    16GB DDR4
    Graphics card(s)
    Nvidia Quadro P520 2GB DDR5 supports 4K external via HDMI or USB-C
    Sound Card
    Realtek ALC3287 HD
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1K
    Hard Drives
    NVMe various
krism said:
Okay , do you have a bootable USB stick that you could plug in, boot, if you get that same BIOS screen, F7, BOOT, add... and see if anything there inside box, if so, add it and boot to it just to test.
Click to expand...
Are you asking if I was given by ASUS a bootable USB stick when I purchased this PC for this PC. No. I was never given one. ASUS solution to this is as you recall from the UEFI BIOS Main Screen is a option called Cloud Recovery. I used it once when I had trouble shortly after I bought the PC. That takes about 7 or so hours all my itself and restores your PC to new condition that is functional. That appears to be the only way to get out of this jam. Then I thought there was a time limit on how long that feature is available free after you buy the PC. I am sure there is a cost to use it now as it is now out of warranty. Anyways, I want to reuse the Windows 11 stored on the NVMe already as it has software installed on it that I paid for. Any ideas on how to fix this issue?


My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo
yes, but first go to ADVANCED , USB configuration


My Computers

System One System Two

  • OS
    win 11Pro, 24H2 current-1mo, WuMgr, StartAllBack, Terabyte Image for Win, Revo Uninstaller Pro Port
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    I9-13900k
    Motherboard
    ASUS ROG STRIX Z790-E Gam wifi-6E, latest AMI BIOS 2801
    Memory
    G.Skill Ripjaws S5 32GB Kit DDR5 6000. 6000.
    Graphics Card(s)
    GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)
    Sound Card
    "Realtek USB Audio", ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Bose Computer Music Monitor/ Desktop Computer Speakers
    Monitor(s) Displays
    Dell S3221QS
    Screen Resolution
    4K but I usually display at 1K
    Hard Drives
    Sam 980 Pro 1T M.2, 990Pro, WD 570, others(all NVMe)
    PSU
    Corsair RM750e fully modular
    Case
    CoolerMaster TD500 mesh white case
    Cooling
    CPU:Thermalright aio A-E-360 V4 TOP(Thermalright anti-bend plate), CASE:3 front fans IN, 1 back fan OUT.
    Keyboard
    Logitech K270
    Mouse
    Logitech M510
    Internet Speed
    220Mbs Starry I226-V
    Browser
    Firefox current, Tab center Reborn, etc etc etc.
    Antivirus
    BitDefender AV Free
    Other Info
    Time Spy Extreme 6239, VRMark Orange Room 16430, etc.
    Been doing computers since '62(IBM 7070/4(just missed their 650!!!). Managed a bunch of 360's. My first PC I think was one of the RS puters (I tried them all), a commodore, an IBM PC w DOS 3.11, and others mainly DIY (COMPUTER SHOPPER!!!) w 95, 98, xp, vista, me, 7!!!, 8, 10!!!, and now, finally, 11.
  • Operating System
    win 10, Mint
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P15s
    CPU
    i7-10510U 1.8-4.9GHz
    Motherboard
    Intel SoC
    Memory
    16GB DDR4
    Graphics card(s)
    Nvidia Quadro P520 2GB DDR5 supports 4K external via HDMI or USB-C
    Sound Card
    Realtek ALC3287 HD
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1K
    Hard Drives
    NVMe various
montecarlo1987 said:
ASUS went full graphical now with UEFI too.
Click to expand...
The bootloader is independent of uefi/legacy bios.

You can still use the older text based boot loader if you wish. Some prefer it as it actually loads faster than the graphical bootloader.


My Computer

System One

  • OS
    Windows 11 Pro + Win11 Canary VM.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Zenbook 14
    CPU
    I9 13th gen i9-13900H 2.60 GHZ
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB soldered
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    laptop OLED screen
    Screen Resolution
    2880x1800 touchscreen
    Hard Drives
    1 TB NVME SSD (only weakness is only one slot)
    PSU
    Internal + 65W thunderbolt USB4 charger
    Case
    Yep, got one
    Cooling
    Stella Artois (UK pint cans - 568 ml) - extra cost.
    Keyboard
    Built in UK keybd
    Mouse
    Bluetooth , wireless dongled, wired
    Internet Speed
    900 mbs (ethernet), wifi 6 typical 350-450 mb/s both up and down
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    TPM 2.0, 2xUSB4 thunderbolt, 1xUsb3 (usb a), 1xUsb-c, hdmi out, 3.5 mm audio out/in combo, ASUS backlit trackpad (inc. switchable number pad)

    Macrium Reflect Home V8
    Office 365 Family (6 users each 1TB onedrive space)
    Hyper-V (a vm runs almost as fast as my older laptop)
On another pc, install Macrium Reflect (trial version will work), and create a usb rescue drive.

Then boot from it and select "fix windows boot problems".

This rebuilds the bcd from scratch and fixes most boot issues.


My Computer

System One

  • OS
    Windows 11 Pro + Win11 Canary VM.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Zenbook 14
    CPU
    I9 13th gen i9-13900H 2.60 GHZ
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB soldered
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    laptop OLED screen
    Screen Resolution
    2880x1800 touchscreen
    Hard Drives
    1 TB NVME SSD (only weakness is only one slot)
    PSU
    Internal + 65W thunderbolt USB4 charger
    Case
    Yep, got one
    Cooling
    Stella Artois (UK pint cans - 568 ml) - extra cost.
    Keyboard
    Built in UK keybd
    Mouse
    Bluetooth , wireless dongled, wired
    Internet Speed
    900 mbs (ethernet), wifi 6 typical 350-450 mb/s both up and down
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    TPM 2.0, 2xUSB4 thunderbolt, 1xUsb3 (usb a), 1xUsb-c, hdmi out, 3.5 mm audio out/in combo, ASUS backlit trackpad (inc. switchable number pad)

    Macrium Reflect Home V8
    Office 365 Family (6 users each 1TB onedrive space)
    Hyper-V (a vm runs almost as fast as my older laptop)
cereberus said:
On another pc, install Macrium Reflect (trial version will work), and create a usb rescue drive.

Then boot from it and select "fix windows boot problems".

This rebuilds the bcd from scratch and fixes most boot issues.
Click to expand...
I believe the problem is that from the factory, ASUS uses it's own boot loader to bootstrap the BCD. You can do that but you may have to re-license the win (or leave it unlicensed and not be able to customize the taskbar.

My path with this is to show customer legacy, smart, try cloud, build own on larger NVMe and deal with drivers, license, etc. I have done this with laptops and it can be a pita.


My Computers

System One System Two

  • OS
    win 11Pro, 24H2 current-1mo, WuMgr, StartAllBack, Terabyte Image for Win, Revo Uninstaller Pro Port
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    I9-13900k
    Motherboard
    ASUS ROG STRIX Z790-E Gam wifi-6E, latest AMI BIOS 2801
    Memory
    G.Skill Ripjaws S5 32GB Kit DDR5 6000. 6000.
    Graphics Card(s)
    GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)
    Sound Card
    "Realtek USB Audio", ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Bose Computer Music Monitor/ Desktop Computer Speakers
    Monitor(s) Displays
    Dell S3221QS
    Screen Resolution
    4K but I usually display at 1K
    Hard Drives
    Sam 980 Pro 1T M.2, 990Pro, WD 570, others(all NVMe)
    PSU
    Corsair RM750e fully modular
    Case
    CoolerMaster TD500 mesh white case
    Cooling
    CPU:Thermalright aio A-E-360 V4 TOP(Thermalright anti-bend plate), CASE:3 front fans IN, 1 back fan OUT.
    Keyboard
    Logitech K270
    Mouse
    Logitech M510
    Internet Speed
    220Mbs Starry I226-V
    Browser
    Firefox current, Tab center Reborn, etc etc etc.
    Antivirus
    BitDefender AV Free
    Other Info
    Time Spy Extreme 6239, VRMark Orange Room 16430, etc.
    Been doing computers since '62(IBM 7070/4(just missed their 650!!!). Managed a bunch of 360's. My first PC I think was one of the RS puters (I tried them all), a commodore, an IBM PC w DOS 3.11, and others mainly DIY (COMPUTER SHOPPER!!!) w 95, 98, xp, vista, me, 7!!!, 8, 10!!!, and now, finally, 11.
  • Operating System
    win 10, Mint
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P15s
    CPU
    i7-10510U 1.8-4.9GHz
    Motherboard
    Intel SoC
    Memory
    16GB DDR4
    Graphics card(s)
    Nvidia Quadro P520 2GB DDR5 supports 4K external via HDMI or USB-C
    Sound Card
    Realtek ALC3287 HD
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1K
    Hard Drives
    NVMe various
Scott said:
Disable the VMD controller. VMD is the new term for "RAID". Although it doesn't say so, disabling VMD will put the
computer in AHCI mode. Your drive should be recognized once it's disabled.

View attachment 124357

Here's what mine looks like.

View attachment 124358
Click to expand...
Okay, nice to meet you Scott! I tried disabling the VMD controller, I Saved Changes and Exit, rebooted the PC, but still brought me back to UEFI BIOS again. No Windows 11 booting. Is there something I am still missing? Thanks!


My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo
krism said:
Excellent, but not bootable.
1) do you have a win11 (24H2) iso on a bootable stick? I would guess no.
2) so lets do something else first - please go to ADVANCED / USB configuration
Click to expand...
Krism, playing catch up with these messages. I do have a bootable USB stick for Windows 11. I have a 22H2, a 23H2, and a 24H2 USB flash drives. Try that? What do you want me to do? Please tell me. They were created on my own separate from this PC.


My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo
montecarlo1987 said:
Krism, playing catch up with these messages. I do have a bootable USB stick for Windows 11. I have a 22H2, a 23H2, and a 24H2 USB flash drives. Try that? What do you want me to do? Please tell me. They were created on my own separate from this PC.
Click to expand...
It is not just a bootable USB drive for Windows 11, but the full package for installation too for all 3 of my Windows 11 USB drives


My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo
So you're saying you have an image backup for your laptop with the original NVMe?
What program?
Why not just restore it?


My Computers

System One System Two

  • OS
    win 11Pro, 24H2 current-1mo, WuMgr, StartAllBack, Terabyte Image for Win, Revo Uninstaller Pro Port
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    I9-13900k
    Motherboard
    ASUS ROG STRIX Z790-E Gam wifi-6E, latest AMI BIOS 2801
    Memory
    G.Skill Ripjaws S5 32GB Kit DDR5 6000. 6000.
    Graphics Card(s)
    GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)
    Sound Card
    "Realtek USB Audio", ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Bose Computer Music Monitor/ Desktop Computer Speakers
    Monitor(s) Displays
    Dell S3221QS
    Screen Resolution
    4K but I usually display at 1K
    Hard Drives
    Sam 980 Pro 1T M.2, 990Pro, WD 570, others(all NVMe)
    PSU
    Corsair RM750e fully modular
    Case
    CoolerMaster TD500 mesh white case
    Cooling
    CPU:Thermalright aio A-E-360 V4 TOP(Thermalright anti-bend plate), CASE:3 front fans IN, 1 back fan OUT.
    Keyboard
    Logitech K270
    Mouse
    Logitech M510
    Internet Speed
    220Mbs Starry I226-V
    Browser
    Firefox current, Tab center Reborn, etc etc etc.
    Antivirus
    BitDefender AV Free
    Other Info
    Time Spy Extreme 6239, VRMark Orange Room 16430, etc.
    Been doing computers since '62(IBM 7070/4(just missed their 650!!!). Managed a bunch of 360's. My first PC I think was one of the RS puters (I tried them all), a commodore, an IBM PC w DOS 3.11, and others mainly DIY (COMPUTER SHOPPER!!!) w 95, 98, xp, vista, me, 7!!!, 8, 10!!!, and now, finally, 11.
  • Operating System
    win 10, Mint
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P15s
    CPU
    i7-10510U 1.8-4.9GHz
    Motherboard
    Intel SoC
    Memory
    16GB DDR4
    Graphics card(s)
    Nvidia Quadro P520 2GB DDR5 supports 4K external via HDMI or USB-C
    Sound Card
    Realtek ALC3287 HD
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1K
    Hard Drives
    NVMe various
cereberus said:
On another pc, install Macrium Reflect (trial version will work), and create a usb rescue drive.

Then boot from it and select "fix windows boot problems".

This rebuilds the bcd from scratch and fixes most boot issues.
Click to expand...
Hello. Nice to meet you! Cereberus, nice to meet you! I am going to try your solution too. Just interjecting now so I have not forgot about you as your message I instructions will take a little bit of time. Will be back and see if it works. Thanks!


My Computer

System One

  • OS
    Windows 10 & 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS & Lenovo
You must log in or register to reply here.

Similar threads

PC dies when idle for a few hours. Cannot boot into Windows 11
2
Replies
32
Views
6K
Scannerman
Scannerman
Having Trouble Installing Windows 11 on an Aspire A315-24P Laptop
Replies
1
Views
3K
Bree
Bree
Solved Cannot Boot Into Windows 11
Replies
3
Views
1K
zbook
Z
After removing an update, Windows 11 is only allowing "update and restart" or "update and shut down"
2
Replies
31
Views
4K
JoeK
J

Latest Support Threads

Latest Tutorials

Back
Top Bottom
