Update 23H2 to 24H2 always fails 0xC1900101 - 0x30017 out of options

miketsp · 2025-04-23T14:01:26-0400

I have been comparing the driver versions between the laptop that accepted 24H2 and the laptop that is stuck on 23H2 and found something really strange.

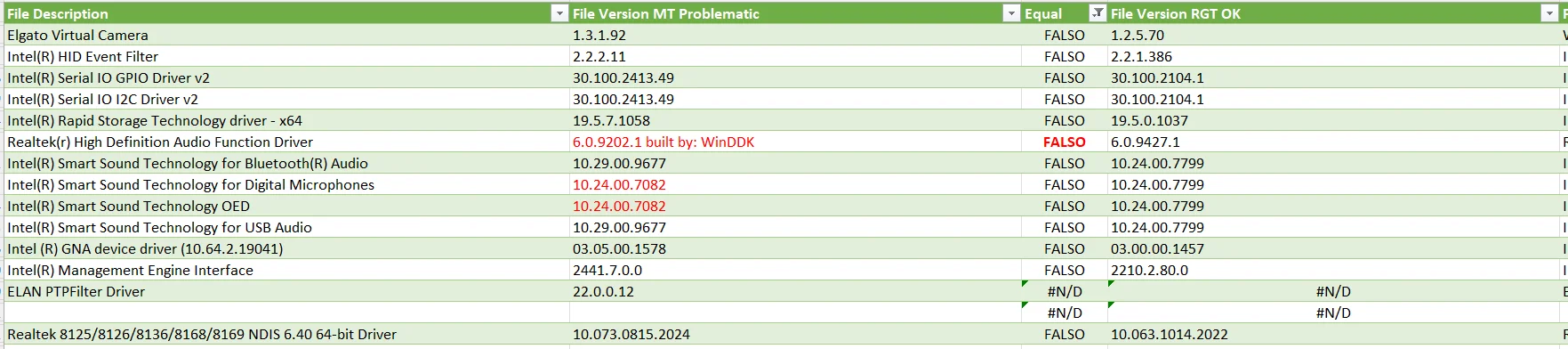

Even though I used a very recent version of the Realtek set up program from the Realtek site some of the drivers on the problematic laptop are still very old, older even than the laptop that accepted the 24H2 update. This makes no sense. I have marked the old drivers in red in the image. I'm going to delete these drivers and update them from the version on the Acer site to see what happens. The Smart Sound Driver that you asked me to reinstall is much newer.

Persona78 · 2025-04-23T15:08:25-0400

miketsp said:
I have been comparing the driver versions between the laptop that accepted 24H2 and the laptop that is stuck on 23H2 and found something really strange.
Even though I used a very recent version of the Realtek set up program from the Realtek site some of the drivers on the problematic laptop are still very old, older even than the laptop that accepted the 24H2 update. This makes no sense. I have marked the old drivers in red in the image. I'm going to delete these drivers and update them from the version on the Acer site to see what happens. The Smart Sound Driver that you asked me to reinstall is much newer.

View attachment 132047

Hi!

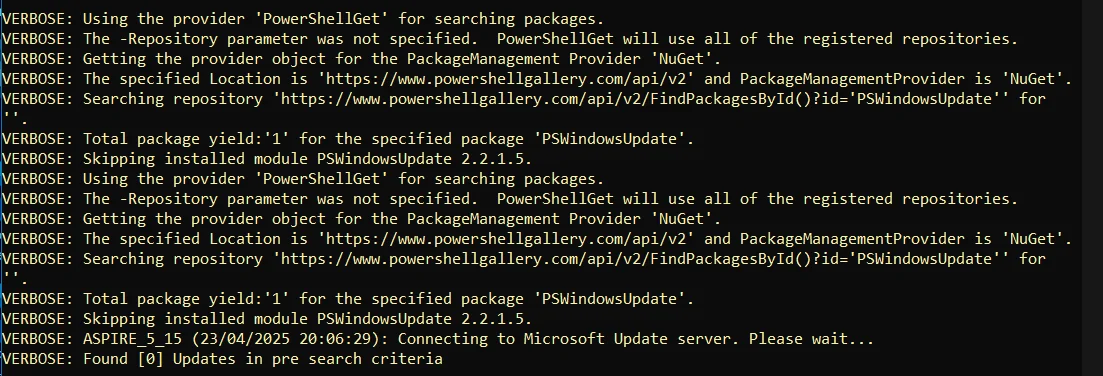

When i try to search for updates i use Windows Update trough Powershell.

Save this code as batch and run like admin:

Code:

@echo off
powershell.exe "Set-ExecutionPolicy Unrestricted -force"
@echo Y|powershell.exe Install-Module PSWindowsUpdate -Verbose
@echo Y|powershell.exe Install-Module PSWindowsUpdate -Verbose
powershell.exe Import-Module PSWindowsUpdate -Verbose >nul
@echo A|powershell.exe Download-WindowsUpdate -AcceptAll -Download -ForceDownload -install -Forceinstall -Verbose
powershell.exe "Set-ExecutionPolicy Default -force"
pause

There is a duplicade line but it need it!

If there is drives to update it will find.

You can enable it to in Windows Update when it search for updates by running this commands on command prompt like admin:

Code:

powershell.exe New-Item -Path 'HKLM:\SOFTWARE\Microsoft\WindowsUpdate\UX' -Name 'Settings' -ErrorAction SilentlyContinue >nul
powershell.exe New-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\WindowsUpdate\UX' -Name 'IsConvergedUpdateStackEnabled' -PropertyType dword -Value '0' -force
powershell.exe New-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\WindowsUpdate\UX\Settings' -Name 'AllowMUUpdateService' -PropertyType dword -Value '1' -force
powershell.exe New-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\WindowsUpdate\UX\Settings' -Name 'IsContinuousInnovationOptedIn' -PropertyType dword -Value '1' -force

I prefer Powershell.

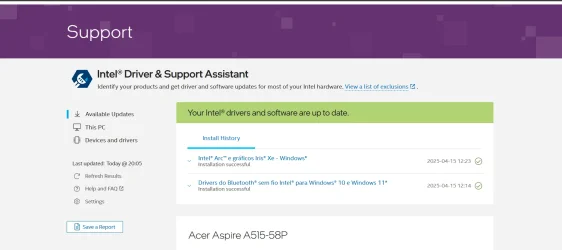

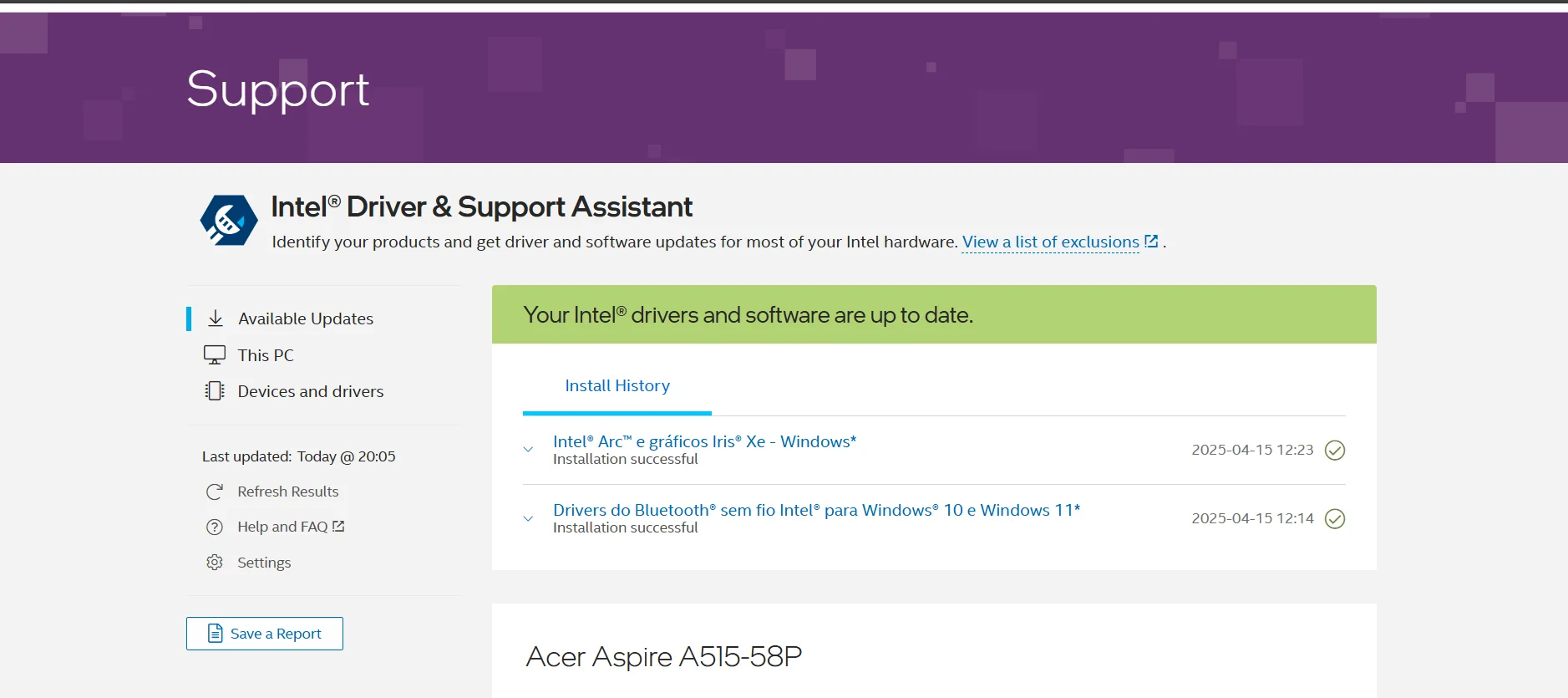

For intel i use this: Intel® Driver & Support Assistant

JUst install it and it check for updates for intel hardware.

zbook · 2025-04-23T15:38:03-0400

1) If possible temporarily find alternative hardware for Logitech > uninstall Logitech drivers

If alternative hardware is not available then reinstall:

lmoufilt Logicool SetPoint KMDF Mouse Filter Driver c:\windows\system32\drivers\lmoufilt.sys

2) Create a new restore point.

3) Restart WDV with all customized tests except:

[ ] 0x00000004 Simulação de recursos baixos aleatória.
[ ] 0x00000004 Randomized low resources simulation.

If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.

For any BSOD post a new V2 share link into the newest post.

4) Run WDV for several hours > if there are no BSOD then turn off WDV

5) Open administrative command prompt and copy and paste:

schtasks.exe /Run /TN "\Microsoft\Windows\Application Experience\Microsoft Compatibility Appraiser"

reg query "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators" /s

Post a share link.

Windows 11, version 24H2 known issues and notifications

View announcements and review known issues and fixes for Windows 11, version 24H2

learn.microsoft.com

6) If the results report a hold then plan to wait until Compatibility issues with Intel Smart Sound Technology drivers appears on resolved issues:

Resolved issues in Windows 11, version 24H2

learn.microsoft.com

Only devices with both an Intel 11th Gen Core processors and an Intel SST driver version of 10.29.0.5152 or 10.30.0.5152 are affected by this issue.

The computer has:
Processador 11th Gen Intel(R) Core(TM) i5-1135G7 @ 2.40GHz, 2419 Mhz, 4 Núcleo(s), 8 Processador(es) Lógico(s)
10.29.0.11516

Code:

Nome    Tecnologia Intel® Smart Sound para microfones digitais
Fabricante    Intel(R) Corporation
Status    OK
Identificação de dispositivo PNP    INTELAUDIO\CTLR_DEV_A0C8&LINKTYPE_02&DEVTYPE_00&VEN_8086&DEV_AE20&SUBSYS_146A1025&REV_10EC\5&28C11B04&0&0000DIF_000A&UIF_0000
Driver    C:\WINDOWS\SYSTEM32\DRIVERSTORE\FILEREPOSITORY\INTCDMIC.INF_AMD64_A616E4ACFCC1EB12\INTCDMIC.SYS (10.29.0.11516, 766,96 KB (785.368 bytes), 16/04/2025 19:50)

Nome    Tecnologia Intel® Smart Sound para áudio USB
Fabricante    Intel(R) Corporation
Status    OK
Identificação de dispositivo PNP    INTELAUDIO\CTLR_DEV_A0C8&LINKTYPE_06&DEVTYPE_06&VEN_8086&DEV_AE50&SUBSYS_146A1025&REV_0001\0603DIF_000A&UIF_0000
Driver    C:\WINDOWS\SYSTEM32\DRIVERSTORE\FILEREPOSITORY\INTCUSB.INF_AMD64_C0CD7E49204848B2\INTCUSB.SYS (10.29.0.11516, 916,96 KB (938.968 bytes), 16/04/2025 19:50)

7) Once you decide to upgrade:

a) detach any non-Windows disk drive

b) attach the flash drive with the new MCT

c) perform an in place upgrade repair using the MCT on the flash drive:

Repair Install Windows 11 with an In-place Upgrade

This tutorial will show you how to do a repair install of Windows 11 by performing an in-place upgrade without losing anything. If you need to repair or create a new recovery partition or having problems with the Windows 11 operating system on your PC, and the usual solutions will not fix it...

www.elevenforum.com

miketsp · 2025-04-23T16:38:08-0400

zbook said:
1) If possible temporarily find alternative hardware for Logitech > uninstall Logitech drivers

If alternative hardware is not available then reinstall:

lmoufilt Logicool SetPoint KMDF Mouse Filter Driver c:\windows\system32\drivers\lmoufilt.sys

Wireless mouse uninstalled. Using Microsoft wired mouse.

zbook said:
2) Create a new restore point.

Done

zbook said:
3) Restart WDV with all customized tests except:

[ ] 0x00000004 Simulação de recursos baixos aleatória.
[ ] 0x00000004 Randomized low resources simulation.

If there is no immediate BSOD then open administrative command prompt and copy and paste:

Immediate BSOD

LAPTOPMTV30RSO9-(2025-04-23_17-29-22).zip

drive.google.com

zbook · 2025-04-23T17:08:57-0400

1) Uninstall or uninstall and reinstall:

elgatovirtualcamera Elgato Virtual Camera Service c:\windows\system32\drivers\elgatovirtualcamera.sys

2) Create a new restore point.

3) Restart WDV with the same customized tests

4) If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.

For any BSOD post a new V2 share link into the newest post.

5) Run WDV for several hours > if there are no BSOD then turn off WDV

6) Open administrative command prompt and copy and paste:

schtasks.exe /Run /TN "\Microsoft\Windows\Application Experience\Microsoft Compatibility Appraiser"

reg query "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators" /s

Post a share link.

miketsp · 2025-04-23T17:54:41-0400

zbook said:
1) Uninstall or uninstall and reinstall:

elgatovirtualcamera Elgato Virtual Camera Service c:\windows\system32\drivers\elgatovirtualcamera.sys

wired mouse removed
wireless mouse reinstalled
Elgato App uninstalled - virtual driver no longer exists

zbook said:
2) Create a new restore point.

Done

zbook said:
3) Restart WDV with the same customized tests

Immediate BSOD

LAPTOPMTV30RSO9-(2025-04-23_18-45-26).zip

drive.google.com

zbook · 2025-04-23T18:42:40-0400

How come LMouFilt.Sys was reinstalled?

crash time: Wed Apr 23 16:20:07.092 2025 (UTC - 5:00)

lmoufilt Logicool SetPoint KMDF Mouse Filter Driver c:\windows\system32\drivers\lmoufilt.sys

Code:

LMouFilt.Sys Wed Oct 14 07:08:32 2020 (5F86EA40)

miketsp · 2025-04-24T06:15:02-0400

zbook said:
How come LMouFilt.Sys was reinstalled?

crash time: Wed Apr 23 16:20:07.092 2025 (UTC - 5:00)

lmoufilt Logicool SetPoint KMDF Mouse Filter Driver c:\windows\system32\drivers\lmoufilt.sys

Code:

LMouFilt.Sys Wed Oct 14 07:08:32 2020 (5F86EA40)

I did mention that I reinstalled the wireless mouse in my last post.
Uninstalled wireless mouse and no Elgato camera.
Now running verifier.
No BSOD.
Will leave it for a couple of hours.

Group.txt

drive.google.com

miketsp · 2025-04-24T09:39:58-0400

OK It ran verifier for over 3h and the check compatibility didn't show any problems.
I'm going to try the update.

Compat.txt

drive.google.com
