Solved BSOD: How does one run the V2 Log Collector on the BSOD PC?

JeffFinnan · Nov 3, 2024

Here are the drivers. However, are these for the MCT or the PC?

Code:

X:\sources>cd C:\windows\system32\drivers

X:\sources>dir
 Volume in drive X is Boot
 Volume Serial Number is D60A-0DC2

 Directory of X:\sources

10/04/2024  06:06 PM    <DIR>          .
10/04/2024  06:06 PM    <DIR>          ..
03/31/2024  11:48 PM             1,046 alert.gif
03/31/2024  11:48 PM            11,673 appcompat.xsl
03/31/2024  11:48 PM            12,498 appcompat_bidi.xsl
03/31/2024  11:48 PM            13,371 appcompat_detailed_bidi_txt.xsl
03/31/2024  11:48 PM            13,326 appcompat_detailed_txt.xsl
10/04/2024  06:05 PM         2,622,880 appraiser.dll
10/04/2024  06:05 PM           153,008 ARUNIMG.dll
10/04/2024  06:05 PM            26,040 arunres.dll
10/04/2024  06:05 PM           214,472 autorun.dll
03/31/2024  11:48 PM             4,841 background.bmp
10/04/2024  06:05 PM           170,880 bcd.dll
10/04/2024  06:05 PM           307,248 bootsvc.dll
10/04/2024  06:05 PM           177,608 cmisetup.dll
10/04/2024  06:05 PM           198,048 compatctrl.dll
03/31/2024  11:48 PM            50,728 cryptosetup.dll
10/04/2024  06:05 PM            99,760 diager.dll
10/04/2024  06:05 PM           218,544 diagnostic.dll
03/31/2024  11:48 PM         1,365,856 diagtrack.dll
03/31/2024  11:48 PM            88,256 diagtrackrunner.exe
10/04/2024  05:55 PM           329,120 dism.exe
10/04/2024  06:05 PM         1,201,608 dismapi.dll
10/04/2024  06:05 PM           476,488 dismcore.dll
10/04/2024  06:05 PM           230,832 dismcoreps.dll
10/04/2024  06:05 PM           300,488 dismprov.dll
10/04/2024  06:05 PM            95,664 folderprovider.dll
10/04/2024  06:05 PM           243,104 hwcompat.dll
10/04/2024  05:55 PM           963,150 hwcompat.txt
03/31/2024  11:48 PM                51 hwexclude.txt
10/04/2024  06:05 PM           423,344 hwreqchk.dll
10/04/2024  05:55 PM               132 idwbinfo.txt
10/04/2024  05:55 PM         1,013,056 imagelib.dll
10/04/2024  06:05 PM           247,224 imagingprovider.dll
10/04/2024  06:05 PM           415,048 input.dll
10/04/2024  05:36 PM                78 lang.ini
03/31/2024  11:48 PM           861,992 locale.nls
10/04/2024  06:05 PM           189,872 logprovider.dll
10/04/2024  06:05 PM         1,631,536 MediaSetupUIMgr.dll
10/04/2024  06:05 PM           103,840 nlsbres.dll
03/31/2024  11:48 PM            54,824 ntdsupg.dll
03/31/2024  11:48 PM            44,544 offline.xml
10/04/2024  06:05 PM            99,744 pnpibs.dll
10/04/2024  06:05 PM           107,976 pnppropmig.dll
03/31/2024  11:48 PM             1,240 reagent.admx
10/04/2024  06:05 PM           611,784 reagent.dll
03/31/2024  11:48 PM               837 reagent.xml
10/04/2024  06:05 PM           161,200 rollback.exe
10/04/2024  06:05 PM           110,592 schema.dat
03/31/2024  11:48 PM           412,572 segoeui.ttf
10/04/2024  06:05 PM         1,026,112 ServicingCommon.dll
10/04/2024  06:05 PM           333,232 setup.exe
10/04/2024  06:05 PM           370,096 setupcompat.dll
10/04/2024  06:05 PM         2,848,048 SetupCore.dll
10/04/2024  06:05 PM           910,752 SetupHost.exe
10/04/2024  06:05 PM         1,185,208 SetupMgr.dll
03/31/2024  11:48 PM            23,023 SetupPlatform.cfg
10/04/2024  06:05 PM         9,688,504 SetupPlatform.dll
10/04/2024  06:05 PM           255,432 SetupPlatform.exe
10/04/2024  06:05 PM         1,332,640 SetupPrep.exe
10/04/2024  06:05 PM           927,136 SmiEngine.dll
10/04/2024  06:05 PM            58,784 spflvrnt.dll
10/04/2024  06:05 PM            83,376 spprgrss.dll
10/04/2024  06:05 PM           570,824 spwizeng.dll
10/04/2024  06:05 PM            95,648 spwizimg.dll
10/04/2024  06:05 PM            26,056 spwizres.dll
10/04/2024  06:05 PM            75,856 sqmapi.dll
10/04/2024  05:55 PM            95,552 testplugin.dll
10/04/2024  06:05 PM           275,912 unattend.dll
10/04/2024  06:05 PM           390,464 UnattendMgr.dll
10/04/2024  06:05 PM         1,090,976 unbcl.dll
10/04/2024  06:05 PM           542,128 UpdateCompression.dll
10/04/2024  06:05 PM           136,624 upgloader.dll
03/31/2024  11:48 PM            19,157 upgrade_frmwrk.xml
10/04/2024  06:05 PM            66,976 utcapi.dll
10/04/2024  06:05 PM           185,800 uxlib.dll
10/04/2024  06:05 PM            21,936 uxlibres.dll
10/04/2024  06:05 PM           599,368 vhdprovider.dll
10/04/2024  06:05 PM           312,752 w32uiimg.dll
10/04/2024  06:05 PM           222,664 w32uires.dll
03/31/2024  11:48 PM               597 warning.gif
10/04/2024  06:05 PM           484,920 wdsclient.dll
10/04/2024  06:05 PM           267,840 wdsclientapi.dll
10/04/2024  06:05 PM           341,448 wdscommonlib.dll
10/04/2024  06:05 PM           279,968 wdscore.dll
10/04/2024  06:05 PM           112,056 wdscsl.dll
10/04/2024  06:05 PM           128,592 wdsimage.dll
10/04/2024  06:05 PM           218,688 wdstptc.dll
10/04/2024  06:05 PM           353,712 wdsutil.dll
10/04/2024  06:05 PM           910,752 wimgapi.dll
10/04/2024  06:05 PM           697,800 wimprovider.dll
10/04/2024  06:05 PM           722,336 win32ui.dll
10/04/2024  06:05 PM         1,615,280 WinDlp.dll
10/04/2024  06:05 PM         2,991,560 winsetup.dll
03/31/2024  11:48 PM             8,192 WinSetupBoot.hiv
10/04/2024  06:05 PM           116,152 WinSetupBoot.sys
03/31/2024  11:48 PM             8,192 WinSetupMon.hiv
10/04/2024  06:05 PM           169,440 WinSetupMon.sys
10/04/2024  06:05 PM         1,422,640 wpx.dll
10/04/2024  05:55 PM           253,416 xmllite.dll
10/04/2024  06:06 PM    <DIR>          en-US
03/31/2024  11:48 PM    <DIR>          inf
10/04/2024  06:06 PM    <DIR>          recovery
              98 File(s)     50,956,640 bytes
               5 Dir(s)     531,234,816 bytes free

X:\sources>

If after entering cd C:\windows\system32\drivers and then enter C:, it shows C:\windows\system32\drivers. However, If dir is entered the shorter list starting with letter l drivers shows.

For heck of it I went into the IRST in the bios it showed this:

There was no option to disable it.

Farbar: If I try to Search Registry, get "This functions outside Recovery Environment.

Tried this instead: Search Files: "iastorvd.sys"

Code:

Farbar Recovery Scan Tool (x64) Version: 02-11-2024
Ran by SYSTEM (03-11-2024 20:22:21)
Running from k:\
Boot Mode: Recovery

================== Search Files: "iastorvd.sys" =============

C:\Windows\System32\DriverStore\FileRepository\iastorvd.inf_amd64_8ef554cfd5ec3146\iaStorVD.sys
[2024-08-26 15:00][2024-05-09 20:00] 001618640 _____ (Intel Corporation) DBFA5ADFF51CDDAAEEE5A1FFA38F279C

C:\Windows\System32\DriverStore\FileRepository\iastorvd.inf_amd64_80dcb7b409148fed\iaStorVD.sys
[2024-04-22 17:11][2023-11-28 20:00] 001617104 _____ (Intel Corporation) 27DCAE21B8E8B3854509D530E6E4BC22

C:\Windows\System32\drivers\iaStorVD.sys
[2024-08-26 15:00][2024-05-09 20:00] 001618640 _____ (Intel Corporation) DBFA5ADFF51CDDAAEEE5A1FFA38F279C


====== End of Search ======

zbook · Nov 3, 2024

See this link to boot into Windows RE.

Boot to Advanced Startup (WinRE) in Windows 11

This tutorial will show you how to boot to the advanced startup (WinRE) in Windows 11. The Windows Recovery Environment (WinRE) is a companion operating system installed alongside Windows 11, typically in a separate partition, that can help with troubleshooting, recovery, or booting from...

www.elevenforum.com

This was reported as the driver location:

Code:

iaStorVD; C:\Windows\System32\drivers\iaStorVD.sys [1618640 2024-05-09] (Intel Corporation -> Intel Corporation)

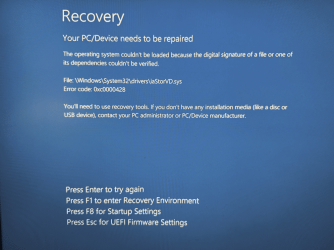

In post #12 srttrail reported iastorvd.sys is corrupt so if it is possible reinstall this driver while in RE (see if Asus and Intel have troubleshooting steps)

The commands to view driver inf or oem did not find the driver.

Also open a new thread in EF with title: how to reinstall

Code:

Root cause found:
---------------------------
Boot critical file f:\windows\system32\drivers\iastorvd.sys is corrupt.

Repair action: File repair
Result: Failed. Error code =  0x57
Time taken = 703 ms

Repair action: System files integrity check and repair
Result: Failed. Error code =  0x57
Time taken = 485 ms

JeffFinnan · Nov 3, 2024

dism /image:W:\ /Get-Drivers is attached plus more on the bootrec.

Code:

X:\sources>bootrec /fixmbr
The operation completed successfully.

X:\sources>bootrec /fixboot
Access is denied.

X:\sources>bootrec /scanos
Scanning all disks for Windows installations.

Please wait, since this may take a while...

Successfully scanned Windows installations.
Total identified Windows installations: 0
The operation completed successfully.

X:\sources>bootrec /nt60 all


Repairs critical disk structures. The following commands are supported:

/FixMbr -- writes the master boot record of the system partition using the master boot record compatible with Windows. This operation does not overwrite the existing partition table.

/FixBoot -- write a new boot sector onto the system partition using the boot sector compatible with Windows.

/ScanOs -- scan all disks for installations compatible with Windows and display the entries that are currently not in the boot configuration store.

/RebuildBcd -- scan all disks for installations compatible with Windows and allow the user to choose which to add to the boot configuration store.

Interesting that there were 0 Windows installations. However, this got out of the "Windows failed to start" as pictured in post #38. It went through the usual Diagnosing etc. to get back to the blue-screen automatic repair as pictured in post #21.

zbook · Nov 3, 2024

Please run this corrrected command:

bootsect /nt60 all

zbook · Nov 3, 2024

Then type:

diskpart
sel dis 0
sel par 1
assign letter=s
lis vol
exit
bcdboot C:\Windows /s S: /f UEFI

Post a share link.

JeffFinnan · Nov 3, 2024

This a continuation of BSOD: How does one run the V2 Log Collector on the BSOD PC?

Code:

X:\Windows\System32>bootsect /nt60 all
Target volumes will be updated with BOOTMGR compatible bootcode.

C: (\\?\Volume{fd1f5c68-9adb-493c-a9bb-2a976353f6b4})

    Successfully updated NTFS filesystem bootcode.

D: (\\?\Volume{8fd5fe2c-30ef-405e-9d68-a607c0c5ea92})

    Successfully updated NTFS filesystem bootcode.

E: (\\?\Volume{62f1bc51-0000-0000-0000-100000000000})

    Successfully updated FAT32 filesystem bootcode.

F: (\\?\Volume{f54d8813-dd72-4969-8165-6cd3a2e62ea4})

    Successfully updated NTFS filesystem bootcode.

G: (\\?\Volume{4eeb3818-0000-0000-0000-3f0000000000})

    Successfully updated FAT32 filesystem bootcode.

\\?\Volume{9dbdbe75-c190-405a-8415-a3993c63932e}

    Successfully updated FAT32 filesystem bootcode.

Bootcode was successfully updated on all targeted volumes.

JeffFinnan · Nov 3, 2024

Following Post #45

Code:

X:\Windows\System32>bootsect /nt60 all
Target volumes will be updated with BOOTMGR compatible bootcode.

C: (\\?\Volume{fd1f5c68-9adb-493c-a9bb-2a976353f6b4})

    Successfully updated NTFS filesystem bootcode.

D: (\\?\Volume{8fd5fe2c-30ef-405e-9d68-a607c0c5ea92})

    Successfully updated NTFS filesystem bootcode.

E: (\\?\Volume{4eeb3818-0000-0000-0000-3f0000000000})

    Updated FAT32 filesystem bootcode.  The update may be unreliable since the
    volume could not be locked during the update:
        Access is denied.

F: (\\?\Volume{62f1bc51-0000-0000-0000-100000000000})

    Successfully updated FAT32 filesystem bootcode.

G: (\\?\Volume{f54d8813-dd72-4969-8165-6cd3a2e62ea4})

    Successfully updated NTFS filesystem bootcode.

\\?\Volume{9dbdbe75-c190-405a-8415-a3993c63932e}

    Successfully updated FAT32 filesystem bootcode.

Bootcode was successfully updated on all targeted volumes.

X:\Windows\System32>diskpart

Microsoft DiskPart version 10.0.22621.1

Copyright (C) Microsoft Corporation.
On computer: MININT-RSU6HMP

DISKPART> sel dis 0

Disk 0 is now the selected disk.

DISKPART> sel par 1

Partition 1 is now the selected partition.

DISKPART> assign letter=s

DiskPart successfully assigned the drive letter or mount point.

DISKPART> lis vol

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C                NTFS   Partition   1861 GB  Healthy
  Volume 1     D                NTFS   Partition    517 MB  Healthy
* Volume 2     S                FAT32  Partition    578 MB  Healthy    Hidden
  Volume 3     G                NTFS   Partition    680 MB  Healthy    Hidden
  Volume 4     E   FARBARREC    FAT32  Partition     28 GB  Healthy
  Volume 5     F   ESD-USB      FAT32  Partition     28 GB  Healthy

DISKPART> exit

Leaving DiskPart...

X:\Windows\System32>bcdboot C:\Windows /s S: /f UEFI
Boot files successfully created.

On rebooting:

The computer shuts down on its own after a minute or so.

zbook · Nov 3, 2024

That's a repeat error report after the system restores.
(post #39)
Error code: (NTSTATUS) 0xc0000428 (3221226536) - Windows cannot verify the digital signature for this file.
A recent hardware or software change might have installed a file that is signed incorrectly or damaged, or that might be malicious software from an unknown source.

zbook · Nov 3, 2024

If IRST driver Iastorvd.sys can be reinstallled in Windows RE then that's a possible fix.

Please open support threads (Asus, Intel, EF) or consider:

a) custom install
or
b) manually backing up files and clean install

JeffFinnan · Nov 3, 2024

I think this what I need: Intel® Rapid Storage Technology Driver Installation Software with Intel® Optane™ Memory (11th up to 13th Gen Platforms)

Should I try it?

zbook · Nov 3, 2024

How to install it in Windows RE is where the support is needed.

It can be renamed.

Try:

cd C:\Windows\System32\drivers
ren Iastorvd.sys Iastorvd.sys.old
exit

reboot

JeffFinnan · Nov 4, 2024

I have started a conversation here: Asus Z690-P4 D4 with corrupt iastorvd.sys.

Should I add anything more there?

zbook · Nov 4, 2024

Please boot into safe mode with networking (ethernet) > run V2 > post a share link

Boot to Safe Mode in Windows 11

This tutorial will show you how to boot Windows 11 into normal mode, Safe Mode, Safe Mode with Networking, or Safe Mode with Command Prompt. Safe mode starts Windows in a basic state, using a limited set of files and drivers. If a problem doesn't happen in safe mode, this means that default...

www.elevenforum.com

BSOD - Posting Instructions

BSOD - Posting Instructions This will show you how to help provide needed information about your system and dump files. It will not contain any personal or sensitive information about you or your data. To get better help with your Windows BSOD issue, please read these instructions and follow...

www.elevenforum.com

Run administrative command prompt:

bcdedit /set nointegritychecks off
driverquery /si

Dism /Online /Get-Drivers
Dism /Online /Get-Drivers > "%userprofile%\Desktop\driver.txt
dism /online /get-drivers /format:table

pnputil.exe /enum-drivers

Post share links.

These are additional links for trial and error steps:

Enable or Disable Core Isolation Memory Integrity in Windows 11

This tutorial will show you how to turn on or off core isolation memory integrity in Windows 11. Core isolation is a security feature of Microsoft Windows that protects important core processes of Windows from malicious software by isolating them in memory. It does this by running those core...

www.elevenforum.com

Enable or Disable Microsoft Vulnerable Driver Blocklist in Windows 11

This tutorial will show you how to turn on or off the Microsoft Vulnerable Driver Blocklist for all users in Windows 10 and Windows 11. Starting with Windows 10 (KB5018482) and Windows 11 (KB5018483 and KB5018496), the Microsoft Vulnerable Driver Blocklist is enabled by default. The vulnerable...

www.elevenforum.com

How to Enable or Disable Driver Signature Enforcement in Windows 10

How to Enable or Disable Driver Signature Enforcement and Test Mode in Windows 10

www.tenforums.com

Enable or Disable Secure Boot in Windows 11

This tutorial will show you how to enable or disable Secure Boot on your Windows 10 and Windows 11 PC. Windows 11 minimum system requirements include your system to be UEFI (Unified Extensible Firmware Interface) and Secure Boot capable. While the requirement to upgrade a Windows 10 device to...

www.elevenforum.com

zbook · Nov 4, 2024

In case networking is not available V2 can be transferred by flash drive.

JeffFinnan · Nov 5, 2024

It turns out that I am already running not in Safe Mode but from 7) in the Startup Settings. It is in one of the links you provide above. I got to the Startup Settings by Pressing F8 at the screen shown in my Post #47. It was mentioned over at the ASUS forum to try Safe Mode and I happened to try F8. I saw that in the Startup Settings that 7) Disable driver signature enforcement was offered. I gave that a try and it worked. I have been running this way since late yesterday afternoon. Other than Chrome most everything seems to work. Every time I reboot, I must press F8, etc. I re-connected all my drives so that I could copy a lot of files which is ongoing as I write. The copying will take a good number of hours. For the moment, I will stay in this mode.

I have run V2. Hopefully running in this mode get what is needed. Here is the link: MAIN-COMPUTER-(2024-11-05_03-49-37).zip

Presumably, I can get into Safe Mode if this mode already is working. As time permits, I will work on this.

Can I try to add driver iaStorVD.sys in this mode via Device Manager? My iaStorVD.sys is 20.1.0.1013 (5/10/2024.) I can get 20.1.0.1016 (8/13/2024) over at [DRIVERS] Intel Chipset/MEI/VMD (6xx/7xx/8xx)

Thanks,
Jeff

JeffFinnan · Nov 5, 2024

The cmd prompts in administrative modes are attached while being in Secure Boot. The very first one gave this though:

Code:

C:\Windows\System32>bcdedit /set nointegritychecks off

An error has occurred setting the element data.

The value is protected by Secure Boot policy and cannot be modified or deleted.

You have a link to changing the Secure Boot. However, that will need to wait until all my copying in complete.

It is nice that I can copy and paste from here into the cmd window.

JeffFinnan · Nov 5, 2024

Enable or Disable Microsoft Vulnerable Driver Blocklist in Windows 11

When I first got here, I toggle to on Review incompatible drivers appeared. Re-scanning gets the same results.

This the list:

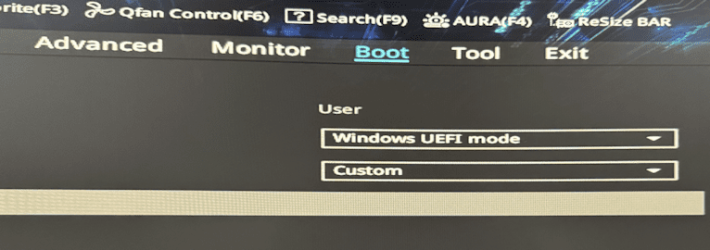

Disabling Secure Boot not clear on my system. There is no security disable available as far as I can determine. Here there is only Custom or Standard. Standard is how it is usually configured.

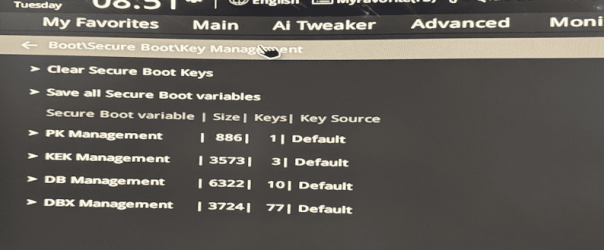

Custom allows Key management. I did trust myself to Clear Secure Boot Keys.

I have not done Enable or Disable Core Isolation Memory Integrity in Windows 11 yet.

I have to run.

JeffFinnan · Nov 5, 2024

The Driver Blacklist was on. Turned it off and reboot. Still the same problem. Turned the Blacklist back on for safety.

zbook · Nov 5, 2024

The V2 log collector reported normal boot, secure boot not enabled.

Windows 11 Home Build: 22621
C:\Windows|\Device\Harddisk3\Partition2

See if you're able to install a new driver and upgrade the BIOS.

1) This is a download link from the motherboard website for IRST:

Intel Rapid Storage Technology Driver software v20.1.0.1015 for WIndows 10/11 64-bit.
Version 20.1.0.1015
24.09 MB
2024/09/24
Improve system stability .

https://dlcdnets.asus.com/pub/ASUS/mb/05SATA/DRV_RST_Intel_VMD_SZ_TSD_W11_64_V20101015_20240923R.zip?model=PRIME%20Z690-P%20D4

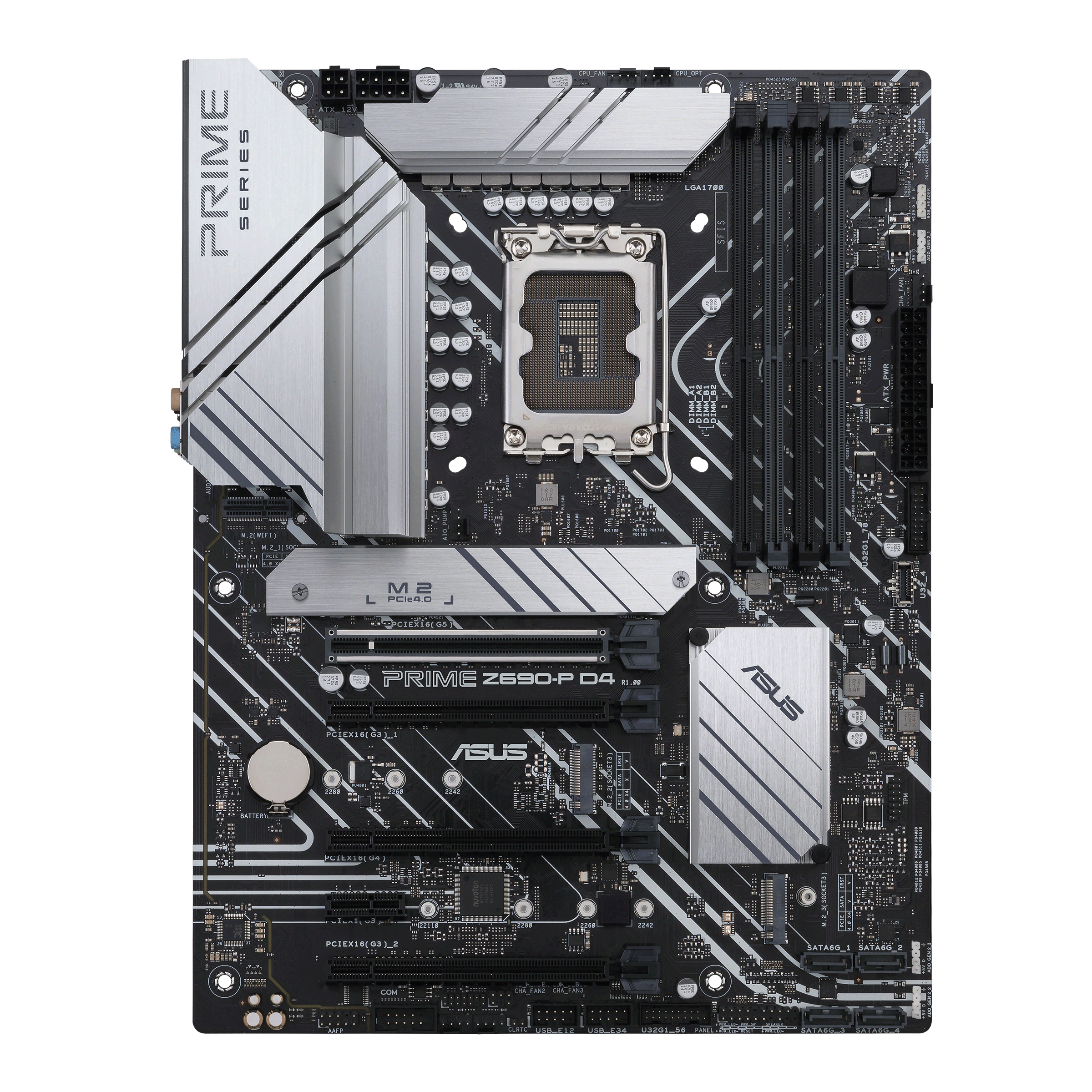

PRIME Z690-P D4

2) The BIOS Version/Date American Megatrends Inc. 1008, 1/13/2022

Upgrade the BIOS: 1008 > 3601

PRIME Z690-P D4｜Motherboards｜ASUS USA

ASUS Prime Z690-P D4 Intel® Z690 (LGA 1700) ATX motherboard features PCIe® 5.0, DDR4, three M.2 slots, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and 2.5 Gb Ethernet. Prime Z690-P D4 caters to daily users and all builders looking for well-rounded specs and...

www.asus.com

Code:

"1. Updated with Intel microcode 0x12B to address elevated voltage requests during idle or light activity, further mitigating Vmin Shift instability issues.
2. The option to disable C1E in the BIOS has been removed to ensure it remains enabled, reducing processor stress and maintaining stability per Intel's recommendation.

Updating this BIOS will simultaneously update the corresponding Intel ME to version 16.1.32.2473v3. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later. "
"1.The new BIOS includes Intel microcode 0x129 to enhance the stability of Intel Core 13th and 14th Gen processors.
2.The factory default settings are set to Intel Default Settings, which now include non-K processors (the K series were already included in previous versions).

Updating this BIOS will simultaneously update the corresponding Intel ME to version 16.1.30.2307v4. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"1. Updated with microcode 0x125 to ensure eTVB operates within Intel specifications.
Updating this BIOS will simultaneously update the corresponding Intel ME to version 16.1.30.2307v4. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"1. Introduce the ""Performance Preferences"" with options for Intel Default Settings (Performance/Extreme) and ASUS Advanced OC Profile.
2. Redefine the factory defaults based on Intel’s new ""Intel Default Settings"" for various CPU SKUs.
3. Change F5 from ""Load Optimized Defaults"" to ""Reset to Defaults"".
4. Add warnings when users switch from the defaults to other settings.
Updating this BIOS will simultaneously update the corresponding Intel ME to version 16.1.30.2307v4. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"1. The update introduces the Intel Baseline Profile option, allowing users to revert to Intel factory default settings for basic functionality, lower power limits, and improving stability in certain games.
Updating this BIOS will simultaneously update the corresponding Intel ME to version 16.1.30.2307v4. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"Further optimized CEP settings when disabled
Updating this BIOS will simultaneously update the corresponding Intel ME to version 16.1.30.2307v4. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"• Update the Intel microcode to version 0x123, allowing for disabling CEP for improved performance on Intel 14th Gen non-K series processors.
*Disabling CEP for performance enhancement may lead to increased power consumption and temperature. Ensure adequate CPU cooling or use a higher-spec cooling solution;
**Intel CEP function varies by the CPU model. Check Intel specification sheet or contact technical support for details.
Updating this BIOS will simultaneously update the corresponding Intel ME to version 16.1.30.2307v4. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"This update includes the patch for the LogoFAIL vulnerabilities
Updating this BIOS will simultaneously update the corresponding Intel ME to version 16.1.30.2307v4. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"1. Update ME to version 16.1.30.2307v4
2. Improve system performance
3. Improve DRAM compatibility
Updating this BIOS will simultaneously update the corresponding Intel ME to version16.1.30.2307v4. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"1.Update Microcode for Intel® Core™ 14th gen processors
2.Update ME to version 16.1.30.2264v2 for Intel® Core™ 14th gen processors
3.Improve system stability
Updating this BIOS will simultaneously update the corresponding Intel ME to version16.1.30.2264v2. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"1.Recommended for vital update to mitigate the potential security vulnerabilities
2.Update the Intel ME to version 16.1.27.2176V2
3.Improve system stability
Updating this BIOS will simultaneously update the corresponding Intel ME to version16.1.27.2176V2. Please note after you update this BIOS, the ME version remains the updated one even if you roll back to an older BIOS later."
"1. Improve system stability and compatibility for the Intel® Core™ 14th gen processors.
2. Fix the compatibility and instability issues when configuring RAID for high-capacity storage.
3. Do update the Intel ME to version 16.1.27.2176.
Before BIOS update, please download Intel ME update tool from ASUS support site, and update ME firmware to Version 16.1.27.2176v2 to ensure optimized system settings."
"1. Optimize BIOS & Intel ME update mechanism.
2. Improve system stability"
Improve system's compatibility
"1. Improve system performance
2. We suggest updating the ME firmware to the latest version 16.1.25.2020

Before BIOS update, please download Intel ME update tool from ASUS support site, and update ME firmware to Version 16.1.25.2020v2 to ensure optimized system settings."
"1. Improve system performance
2. Support Intel Arc graphics
3. Many ME updates and optimizations for the next-gen CPU are included. This version does NOT allow rolling back to the previous versions to ensure better compatibility.

“Before BIOS update, please download Intel ME update tool from ASUS support site, and update ME firmware to Version 16.1.25.1885v2 to ensure optimized system settings.”"
Improve system’s performance.
"1. Improve system stability
2. Update Microcode for next generation Intel Processors"
Improve system stability.
"1. Update Intel Microcode
2. Update Intel ME version 16.0.15.1735
3. Improve system performance for Intel Core i9-12900KS"
1. Improve system compatibility for Non-K CPU.

To recover files:

Redirecting

bootable Ubuntu flash drive:
Create a bootable USB stick on Windows | Ubuntu tutorials

Create a bootable USB stick with Rufus on Windows | Ubuntu

Ubuntu is an open source software operating system that runs from the desktop, to the cloud, to all your internet connected things.

tutorials.ubuntu.com

Linux to the rescue! How Ubuntu can help a computer in distress

When disaster strikes your Windows PC, an Ubuntu live drive has all the tools you need to save the day.

www.pcworld.com

Code:

Safe Mode    : Normal boot
FastStartup  : Disabled
FirmwareType : UEFI
SecureBoot   : Not Enabled

Code:

Event[5037]
  Log Name: System
  Source: Microsoft-Windows-StartupRepair
  Date: 2024-11-04T14:27:25.2790000Z
  Event ID: 1121
  Task: N/A
  Level: Information
  Opcode: Info  a
  Keyword: N/A
  User: S-1-5-18
  User Name: NT AUTHORITY\SYSTEM
  Computer: main-computer
  Description:
The following file necessary for Windows startup was corrupt: f:\windows\system32\drivers\iastorvd.sys

Code:

Event[5051]
  Log Name: System
  Source: Microsoft-Windows-StartupRepair
  Date: 2024-11-04T14:27:25.2790000Z
  Event ID: 1121
  Task: N/A
  Level: Information
  Opcode: Info  a
  Keyword: N/A
  User: S-1-5-18
  User Name: NT AUTHORITY\SYSTEM
  Computer: main-computer
  Description:
The following file necessary for Windows startup was corrupt: F:\WINDOWS\System32\drivers\iaStorVD.sys

Event[5052]
  Log Name: System
  Source: Microsoft-Windows-StartupRepair
  Date: 2024-11-04T14:27:25.2790000Z
  Event ID: 1121
  Task: N/A
  Level: Information
  Opcode: Info  a
  Keyword: N/A
  User: S-1-5-18
  User Name: NT AUTHORITY\SYSTEM
  Computer: main-computer
  Description:
The following file necessary for Windows startup was corrupt: f:\windows\system32\drivers\iastorvd.sys

Volume Management Device NVMe RAID Controller

Code:

Event[230]
  Log Name: System
  Source: Microsoft-Windows-Kernel-PnP
  Date: 2024-10-06T13:55:03.3000000Z
  Event ID: 219
  Task: N/A
  Level: Warning
  Opcode: Info  g
  Keyword: N/A
  User: S-1-5-18
  User Name: NT AUTHORITY\SYSTEM
  Computer: main-computer
  Description:
The driver \Driver\iaStorVD failed to load for the device PCI\VEN_8086&DEV_467F&SUBSYS_86941043&REV_00\3&11583659&0&70.

Code:

Event[5485]
  Log Name: System
  Source: Microsoft-Windows-WHEA-Logger
  Date: 2024-11-04T14:39:20.3080000Z
  Event ID: 1
  Task: N/A
  Level: Error
  Opcode: Info

  Keyword: WHEA Error Event Logs,
  User: S-1-5-19
  User Name: NT AUTHORITY\LOCAL SERVICE
  Computer: main-computer
  Description:
A fatal hardware error has occurred. A record describing the condition is contained in the data section of this event.

Code:

Event[5486]
  Log Name: System
  Source: Microsoft-Windows-WHEA-Logger
  Date: 2024-11-04T14:39:20.3220000Z
  Event ID: 17
  Task: N/A
  Level: Warning
  Opcode: Info  g
  Keyword: N/A
  User: S-1-5-19
  User Name: NT AUTHORITY\LOCAL SERVICE
  Computer: main-computer
  Description:
A corrected hardware error has occurred.

Component: PCI Express Root Port
Error Source: Advanced Error Reporting (PCI Express)

Primary Bus:Device:Function: 0x0:0x1C:0x2
Secondary Bus:Device:Function: 0x0:0x0:0x0
Primary Device Name:PCI\VEN_8086&DEV_7ABA&SUBSYS_86941043&REV_11
Secondary Device Name:

Code:

Event[5193]
  Log Name: System
  Source: Microsoft-Windows-BitLocker-Driver
  Date: 2024-11-04T14:39:08.8860000Z
  Event ID: 24687
  Task: N/A
  Level: Error
  Opcode: Info

  Keyword: N/A
  User: S-1-5-18
  User Name: NT AUTHORITY\SYSTEM
  Computer: main-computer
  Description:
BitLocker timed out attempting to enumerate bands during volume discovery on this hardware encrypting drive.

JeffFinnan · Nov 5, 2024

zbook said:
1) This is a download link from the motherboard website for IRST:

Intel Rapid Storage Technology Driver software v20.1.0.1015 for WIndows 10/11 64-bit.
Version 20.1.0.1015
24.09 MB
2024/09/24
Improve system stability .

https://dlcdnets.asus.com/pub/ASUS/mb/05SATA/DRV_RST_Intel_VMD_SZ_TSD_W11_64_V20101015_20240923R.zip?model=PRIME%20Z690-P%20D4

PRIME Z690-P D4

2) The BIOS Version/Date American Megatrends Inc. 1008, 1/13/2022

Upgrade the BIOS: 1008 > 3601

PRIME Z690-P D4｜Motherboards｜ASUS USA

ASUS Prime Z690-P D4 Intel® Z690 (LGA 1700) ATX motherboard features PCIe® 5.0, DDR4, three M.2 slots, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and 2.5 Gb Ethernet. Prime Z690-P D4 caters to daily users and all builders looking for well-rounded specs and...

www.asus.com

IRST installation worked! Hooray! The booted up normally.

It is not clear to be how to update the BIOS. Do I put it on a bootable USB drive? The download contains BIOSRenamer.exe and PZ690P.CAP.

Thanks much,
Jeff

Solved BSOD: How does one run the V2 Log Collector on the BSOD PC?

Well-known member

My Computer

Well-known member

My Computer

Well-known member

Attachments

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

Attachments

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

Attachments

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Well-known member

My Computer

Similar threads
