Solved Struggling with Windows 11 Upgrade

classic57b said:

Using windows version 22H2 (OS Build 19045.5198). Trying to upgrade to Windows 11. Completed 2 upgrades on machines with same Motherboard. First one went flawless. Second one had a few issues. I have tried to upgrade this machine at least 15 times and it fails in the same spot each time.

Click to expand...

If they have the same motherboard, maybe you should make a backup of the one that succeeded and restore that backup to the one that failed.
This will also show if the problem is software or hardware.

If you want to get seriously into it... on the system that succeeded, go into the BIOS and save the BIOS settings to a "profile".
Then you can, (using a USB stick), load the BIOS profile from the system that succeeded to the one that didn't.

That will take care of any differences in the BIOS settings, between the two boards.





Make a fresh backup of Win 10 on the system that's failing the upgrade, just in case you need it for some reason.

Please restart WDV with these customized tests:





If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



For any BSOD post a new V2 share link into the newest post.

I will start the tests above BUT, I jumped the gun and tried to update to W11 again. It failed and the error was "Bad_Pool_Caller". 0xC1900101-0x40017. It stated that "The Installation failed in the Second_Boot phase with an error during boot operation.

Here is the V2 Log.


I'll set up the tests now.

Test started. No BSOD at start up. Here is the verifier /querysettings



Microsoft Windows [Version 10.0.19045.5198]

(c) Microsoft Corporation. All rights reserved.

C:\Windows\system32>verifier /querysettings

Verifier Flags: 0x011009ab

Standard Flags:

[X] 0x00000001 Special pool.
[X] 0x00000002 Force IRQL checking.
[X] 0x00000008 Pool tracking.
[ ] 0x00000010 I/O verification.
[X] 0x00000020 Deadlock detection.
[X] 0x00000080 DMA checking.
[X] 0x00000100 Security checks.
[X] 0x00000800 Miscellaneous checks.
[ ] 0x00020000 DDI compliance checking.

Additional Flags:

[ ] 0x00000004 Randomized low resources simulation.
[ ] 0x00000200 Force pending I/O requests.
[ ] 0x00000400 IRP logging.
[ ] 0x00002000 Invariant MDL checking for stack.
[ ] 0x00004000 Invariant MDL checking for driver.
[ ] 0x00008000 Power framework delay fuzzing.
[ ] 0x00010000 Port/miniport interface checking.
[ ] 0x00040000 Systematic low resources simulation.
[ ] 0x00080000 DDI compliance checking (additional).
[ ] 0x00200000 NDIS/WIFI verification.
[ ] 0x00800000 Kernel synchronization delay fuzzing.
[X] 0x01000000 VM switch verification.
[ ] 0x02000000 Code integrity checks.

Internal Flags:

[X] 0x00100000 Extended Verifier flags (internal).

[X] Indicates flag is enabled.

Boot Mode:

Persistent

Rules:

All rules are using default settings



Verified Drivers:

amdkmpfd.sys
assdv2.sys
amdpsp.sys
mticache.sys
eudcpepm.sys
mtihint.sys
cimfs.sys
euedkepm.sys
elbycdio.sys
asio3.sys
asio2.sys
asupio.sys
asio.sys
amdxe.sys
amdfendr.sys
mtkwl6ex.sys
e2f.sys
amdkmdag.sys
amdpcidev.sys
amdgpio2.sys
amdi2c.sys
amdgpio3.sys
amdfendrmgr.sys
atihdwt6.sys
mtkbtfilterx.sys
dump_dumpstorport.sys
dump_stornvme.sys
dump_dumpfve.sys
dbx.sys

C:\Windows\system32>

Please restart WDV with these customized tests:




If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.

For any BSOD post a new V2 share link into the newest post.

Just started test using above tests. No immediate BSOD.

Here is "verifier /querysettings":

Microsoft Windows [Version 10.0.19045.5198]
(c) Microsoft Corporation. All rights reserved.

C:\Windows\system32>verifier /querysettings

Verifier Flags: 0x001fe210

Standard Flags:

[ ] 0x00000001 Special pool.
[ ] 0x00000002 Force IRQL checking.
[ ] 0x00000008 Pool tracking.
[X] 0x00000010 I/O verification.
[ ] 0x00000020 Deadlock detection.
[ ] 0x00000080 DMA checking.
[ ] 0x00000100 Security checks.
[ ] 0x00000800 Miscellaneous checks.
[X] 0x00020000 DDI compliance checking.

Additional Flags:

[ ] 0x00000004 Randomized low resources simulation.
[X] 0x00000200 Force pending I/O requests.
[ ] 0x00000400 IRP logging.
[X] 0x00002000 Invariant MDL checking for stack.
[X] 0x00004000 Invariant MDL checking for driver.
[X] 0x00008000 Power framework delay fuzzing.
[X] 0x00010000 Port/miniport interface checking.
[X] 0x00040000 Systematic low resources simulation.
[X] 0x00080000 DDI compliance checking (additional).
[ ] 0x00200000 NDIS/WIFI verification.
[ ] 0x00800000 Kernel synchronization delay fuzzing.
[ ] 0x01000000 VM switch verification.
[ ] 0x02000000 Code integrity checks.

Internal Flags:

[X] 0x00100000 Extended Verifier flags (internal).
[X] Indicates flag is enabled.

Boot Mode:

Persistent

Rules:

All rules are using default settings

Extensions:

wdm: rules.all


Verified Drivers:

amdkmpfd.sys
assdv2.sys
amdpsp.sys
mticache.sys
eudcpepm.sys
mtihint.sys
cimfs.sys
euedkepm.sys
elbycdio.sys
asio3.sys
asio2.sys
asupio.sys
asio.sys
amdxe.sys
amdfendr.sys
mtkwl6ex.sys
e2f.sys
amdkmdag.sys
amdpcidev.sys
amdgpio2.sys
amdi2c.sys
amdgpio3.sys
amdfendrmgr.sys
atihdwt6.sys
mtkbtfilterx.sys
dump_dumpstorport.sys
dump_stornvme.sys
dump_dumpfve.sys
dbx.sys


C:\Windows\system32>

Please restart WDV with these customized tests:




If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.

For any BSOD post a new V2 share link into the newest post.

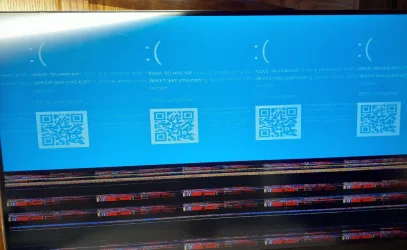

Deleted the WDV settings and restarted the PC to begin the new WDV settings in above post. Had a BSOD on restart. Screen was scrambled so I could not see the error code. Pressed reset button and machine started right up after BSOD without any intervention from me.



Here is a link to the new V2 Log executed after restart from BSOD.


I am waiting to start the above test until you tell me.

Uninstall or uninstall and reinstall:


mtkbtfilterx64 MTK BT Filter Driver c:\windows\system32\drivers\mtkbtfilterx.sys



Create a new restore point



Restart WDV with the customized tests in post # 25.

Reran the tests on Post #25

No BSOD

Renamed “mtkbtfilterx.sys” to “mtkbtfilterx.sys.OLD” to determine if it is actually needed. So far, everything works without it.


Here is the results from “verifier /querysettings“

Microsoft Windows [Version 10.0.19045.5198]

(c) Microsoft Corporation. All rights reserved.

C:\Windows\system32>verifier /querysettings

Verifier Flags: 0x001fe210

Standard Flags:

[ ] 0x00000001 Special pool.
[ ] 0x00000002 Force IRQL checking.
[ ] 0x00000008 Pool tracking.
[X] 0x00000010 I/O verification.
[ ] 0x00000020 Deadlock detection.
[ ] 0x00000080 DMA checking.
[ ] 0x00000100 Security checks.
[ ] 0x00000800 Miscellaneous checks.
[X] 0x00020000 DDI compliance checking.

Additional Flags:

[ ] 0x00000004 Randomized low resources simulation.
[X] 0x00000200 Force pending I/O requests.
[ ] 0x00000400 IRP logging.
[X] 0x00002000 Invariant MDL checking for stack.
[X] 0x00004000 Invariant MDL checking for driver.
[X] 0x00008000 Power framework delay fuzzing.
[X] 0x00010000 Port/miniport interface checking.
[X] 0x00040000 Systematic low resources simulation.
[X] 0x00080000 DDI compliance checking (additional).
[ ] 0x00200000 NDIS/WIFI verification.
[ ] 0x00800000 Kernel synchronization delay fuzzing.
[ ] 0x01000000 VM switch verification.
[ ] 0x02000000 Code integrity checks.

Internal Flags:

[X] 0x00100000 Extended Verifier flags (internal).

[X] Indicates flag is enabled.

Boot Mode:

Persistent

Rules:

All rules are using default settings

Extensions:

wdm: rules.all

Verified Drivers:

amdkmpfd.sys
assdv2.sys
amdpsp.sys
mticache.sys
eudcpepm.sys
mtihint.sys
cimfs.sys
euedkepm.sys
elbycdio.sys
asio3.sys
asio2.sys
asupio.sys
asio.sys
amdxe.sys
amdfendr.sys
mtkwl6ex.sys
e2f.sys
amdkmdag.sys
amdpcidev.sys
amdgpio2.sys
amdi2c.sys
amdgpio3.sys
amdfendrmgr.sys
atihdwt6.sys
dump_dumpstorport.sys
dump_stornvme.sys
dump_dumpfve.sys
dbx.sys



C:\Windows\system32>

Next Steps???

1) Please create a new restore point.




2) Restart WDV with all customized tests except:




3) Run WDV continuously for approximately 24 hours



4) If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



5) For any BSOD post a new V2 share link into the newest post.



6) If there is no new BSOD then post:

a) querysettings for no immediate BSOD

b) V2 after discontinuing WDV with no new BSOD

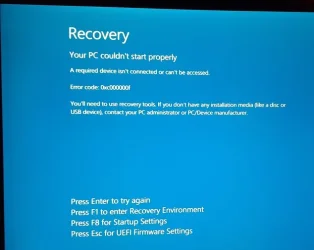

Enabled WDV as requested. Restarted PC and it would not start. The following pic is what was on the screen:



Tried to enter the "F1 Recovery Environment" but it the PC would freeze during reboot. Entered the F8 Startup settings. Selected F5 Safe mode with Networking. Brought me to a login screen but it would not recognize my password. Selected safe mode with a command prompt and disabled WDV, Restart was successful.

Here is the V2 log

Please restart WDV running only:



If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



For any BSOD post a new V2 share link into the newest post.



Then run these customized tests:

48 hours for each?

Question, the instructions for running WDV say to click on the "Provider" tab to and select the drivers above "Microsoft Corporation".



I just noticed that when I do this there are some drivers that are alphabetically after Microsoft. Should I be including any of these drivers?

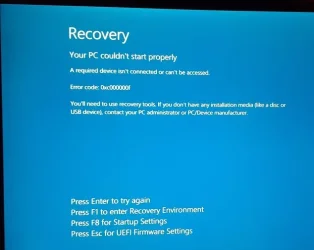

Running WDV with only the "Code Integrity Checks" gave the exact same result as running all of the tests except "Randomized low resources simulation". Same screen seen below.




Here is the V2 Log.

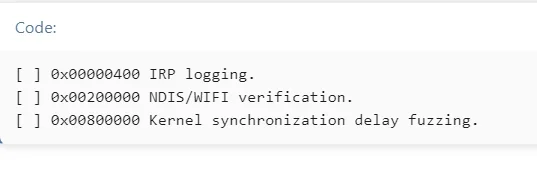

I will now run the following tests:

The current tests are immediate.
No immediate BSOD > post querysettings
Immediate BSOD > post V2

Please select all non-microsoft drivers for these tests.

Later there will be groups of drivers and longer duration tests,

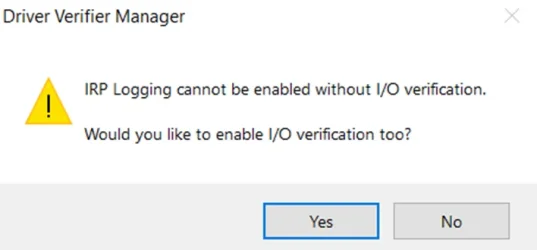

No immediate BSOD. During the setup of WDV I received the following notice so I added that test



Here is the results from “verifier /querysettings“

Microsoft Windows [Version 10.0.19045.5198]

(c) Microsoft Corporation. All rights reserved.

C:\Windows\system32>verifier /querysettings

Verifier Flags: 0x00b00410

Standard Flags:

[ ] 0x00000001 Special pool.
[ ] 0x00000002 Force IRQL checking.
[ ] 0x00000008 Pool tracking.
[X] 0x00000010 I/O verification.
[ ] 0x00000020 Deadlock detection.
[ ] 0x00000080 DMA checking.
[ ] 0x00000100 Security checks.
[ ] 0x00000800 Miscellaneous checks.
[ ] 0x00020000 DDI compliance checking.

Additional Flags:

[ ] 0x00000004 Randomized low resources simulation.
[ ] 0x00000200 Force pending I/O requests.
[X] 0x00000400 IRP logging.
[ ] 0x00002000 Invariant MDL checking for stack.
[ ] 0x00004000 Invariant MDL checking for driver.
[ ] 0x00008000 Power framework delay fuzzing.
[ ] 0x00010000 Port/miniport interface checking.
[ ] 0x00040000 Systematic low resources simulation.
[ ] 0x00080000 DDI compliance checking (additional).
[X] 0x00200000 NDIS/WIFI verification.
[X] 0x00800000 Kernel synchronization delay fuzzing.
[ ] 0x01000000 VM switch verification.
[ ] 0x02000000 Code integrity checks.

Internal Flags:

[X] 0x00100000 Extended Verifier flags (internal).


[X] Indicates flag is enabled.

Boot Mode:

Persistent

Rules:

All rules are using default settings

Extensions:

ndis: rules.default

Verified Drivers:

amdkmpfd.sys
assdv2.sys
amdpsp.sys
mticache.sys
eudcpepm.sys
mtihint.sys
cimfs.sys
euedkepm.sys
elbycdio.sys
asio3.sys
asio2.sys
asupio.sys
asio.sys
amdxe.sys
amdfendr.sys
mtkwl6ex.sys
e2f.sys
amdkmdag.sys
amdpcidev.sys
amdgpio2.sys
amdi2c.sys
amdgpio3.sys
amdfendrmgr.sys
atihdwt6.sys
dump_dumpstorport.sys
dump_stornvme.sys
dump_dumpfve.sys
dbx.sys
ndis.sys
netadaptercx.sys
mbbcx.sys
wificx.sys
wdiwifi.sys

C:\Windows\system32>

Next?

The non-microsoft drivers in post #35 need to be tested.

Please restart WDV selecting:

a) all non-microsoft drivers

zvdiskprot.sys
rtkvhd64.sys
msio64.sys
etc.


b) all customized tests except:



If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



For any BSOD post a new V2 share link into the newest post.

Started test. Included other drivers. No immediate BSOD. Here is the result of verifier /querysettings

Microsoft Windows [Version 10.0.19045.5198]

(c) Microsoft Corporation. All rights reserved.

C:\Windows\system32>verifier /querysettings

Verifier Flags: 0x01bfefbb

Standard Flags:

[X] 0x00000001 Special pool.
[X] 0x00000002 Force IRQL checking.
[X] 0x00000008 Pool tracking.
[X] 0x00000010 I/O verification.
[X] 0x00000020 Deadlock detection.
[X] 0x00000080 DMA checking.
[X] 0x00000100 Security checks.
[X] 0x00000800 Miscellaneous checks.
[X] 0x00020000 DDI compliance checking.

Additional Flags:

[ ] 0x00000004 Randomized low resources simulation.
[X] 0x00000200 Force pending I/O requests.
[X] 0x00000400 IRP logging.
[X] 0x00002000 Invariant MDL checking for stack.
[X] 0x00004000 Invariant MDL checking for driver.
[X] 0x00008000 Power framework delay fuzzing.
[X] 0x00010000 Port/miniport interface checking.
[X] 0x00040000 Systematic low resources simulation.
[X] 0x00080000 DDI compliance checking (additional).
[X] 0x00200000 NDIS/WIFI verification.
[X] 0x00800000 Kernel synchronization delay fuzzing.
[X] 0x01000000 VM switch verification.
[ ] 0x02000000 Code integrity checks.

Internal Flags:

[X] 0x00100000 Extended Verifier flags (internal).

[X] Indicates flag is enabled.

Boot Mode:

Persistent

Rules:

All rules are using default settings

Extensions:

wdm: rules.all

ndis: rules.default

Verified Drivers:


amdkmpfd.sys
assdv2.sys
amdpsp.sys
zvdiskprot.sys
mticache.sys
eudcpepm.sys
mtihint.sys
cimfs.sys
msio64.sys
euedkepm.sys
elbycdio.sys
asio3.sys
asio2.sys
asupio.sys
asio.sys
amdxe.sys
amdfendr.sys
mtkwl6ex.sys
e2f.sys
amdkmdag.sys
amdpcidev.sys
amdgpio2.sys
amdi2c.sys
amdgpio3.sys
amdfendrmgr.sys
atihdwt6.sys
rtkvhd64.sys
dump_dumpstorport.sys
dump_stornvme.sys
dump_dumpfve.sys
dbx.sys
mpksldrv.sys
ndis.sys
netadaptercx.sys
mbbcx.sys
wificx.sys
wdiwifi.sys

C:\Windows\system32>
